2-channel wireless system for singers and presenters. Stable UHF band, built-in antennas and streamlined interface with great live sound.

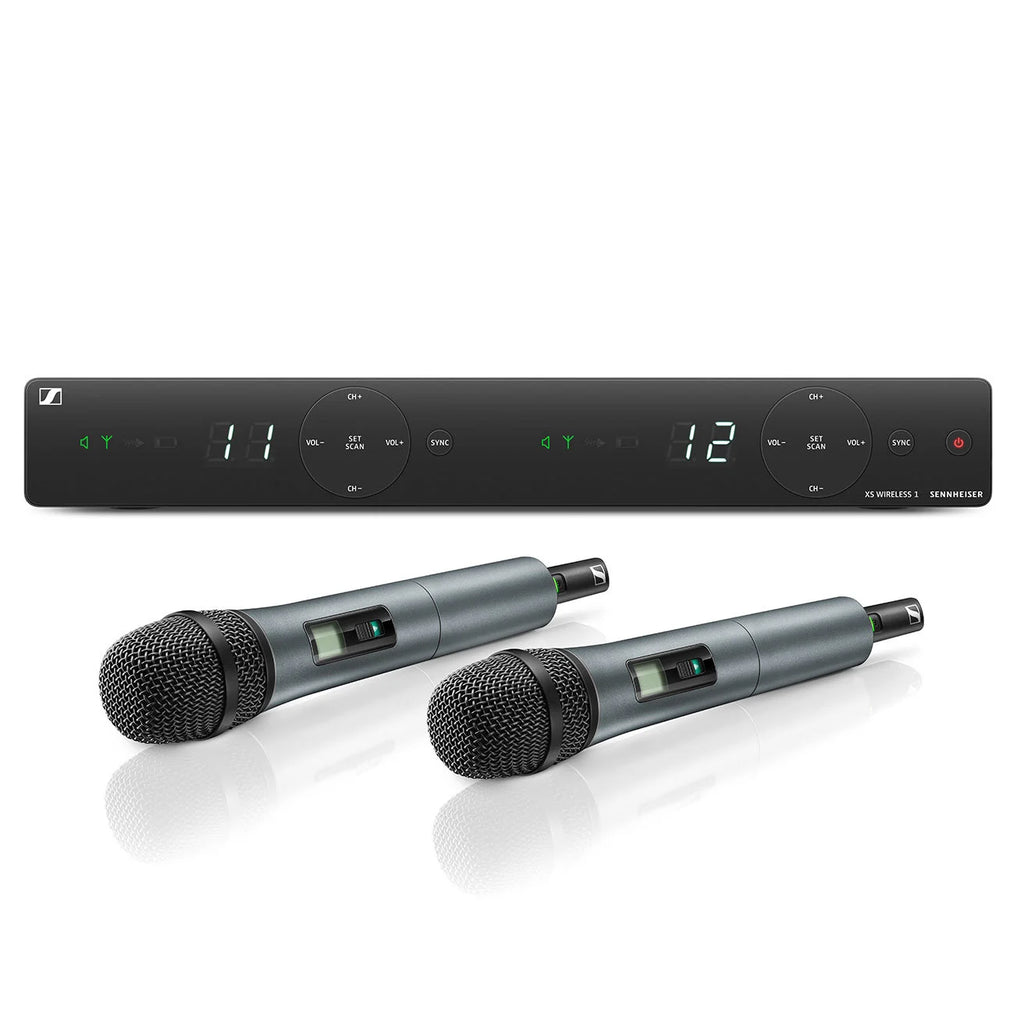

XS Wireless 1 DUAL is a 2-channel wireless system for singers and presenters. Designed with ease of use in mind, these analog UHF systems feature a sleek dual-channel receiver with built-in antennas and the streamlined interface from Sennheiser's popular XS Wireless 1 series.



  • Excellent live sound featuring Sennheiser's renowned evolution microphone capsules

  • Antenna-switching 2-channel diversity reception

  • Integrated antennas

  • Automatic frequency management and synchronization via remote channel for easy setup

  • Selectable UHF frequencies within a large bandwidth

  • Up to 10 compatible channels

Specifications
System
    • Frequency range
      548-572 MHz

    • Dimensions
      Ø 48 x L 180 mm

    • Connector
      XLR-3

    • Frequency response
      55 - 16,000 Hz

    • THD, total harmonic distortion
      ≤ 0.9%

    • Transducer principle
      dynamic

    • Weight
      330 g (0.73 lbs)

    • Pick-up pattern
      cardioid

    • Nominal impedance
      300 Ω (at 1 kHz)

    • Min. terminating impedance
      1 kΩ

    • Storage temperature
      –20°C to +70°C

    • Operating temperature
      0°C to +40°C

    • Signal-to-noise ratio
      ≥ 103 dBA

    • Switching bandwidth
      Up to 24 MHz

    • Modulation
      Wideband FM

    • Frequency
      80 factory presets (8 banks of 10 channels each)

    • Sensitivity
      1.8 mV/Pa (free field, no load at 1 kHz)

    • Synchronization
      Transmitter: 2.4 GHz, low power OQPSK (only active during synchronization)

  • Temperature Range
    0 °C ... +40 °C (+32 °F ... +104 °F)
    • Frequency range

  • Frequency response

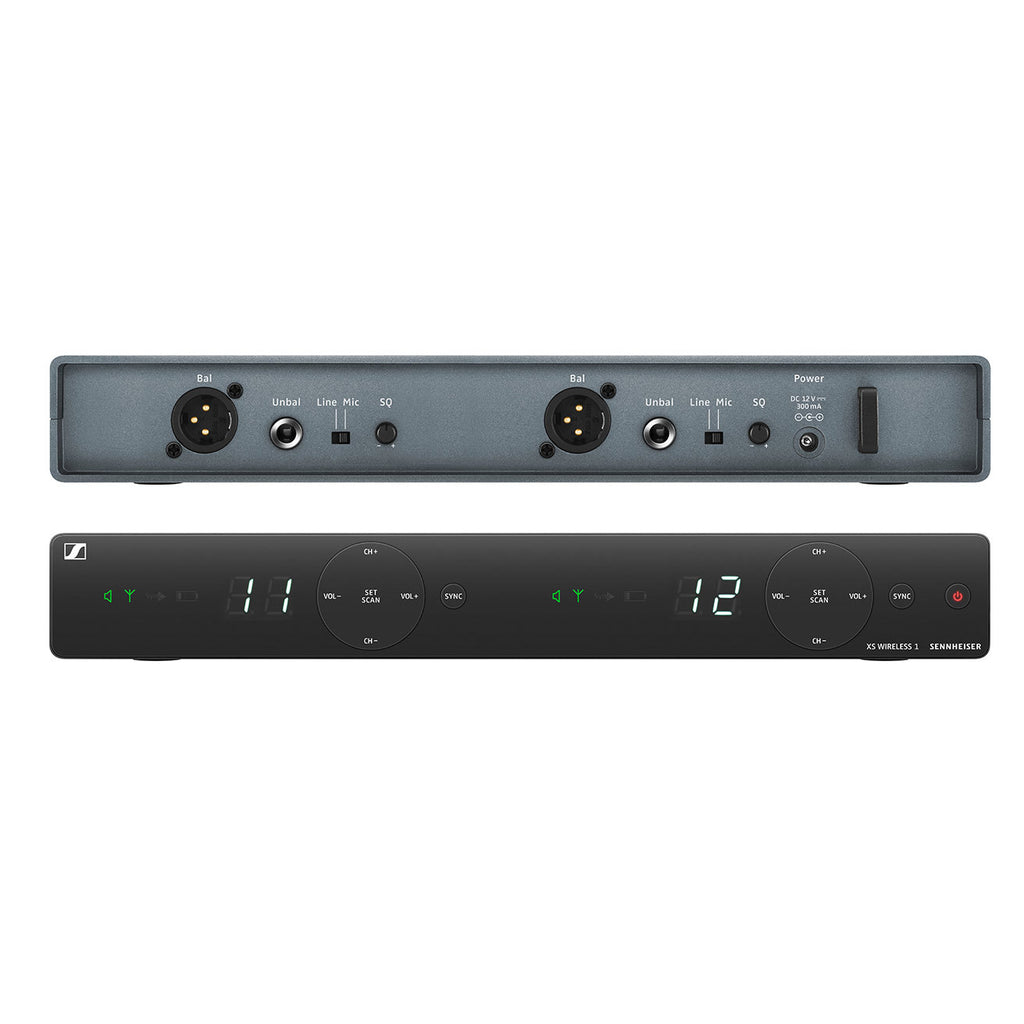

EM-XSW 1 DUAL
    • Dimensions
      approx. 320 x 126.5 x 42 mm

    • Weight
      approx. 620 g

    • Power supply
      12 V DC nom. / 300 mA

    • Output voltage
      (at peak deviation, 1 kHz AF) 1/4“ (6.3 mm) socket (unbalanced): +6 dBu

    • Housing
      Rugged ABS housing

    • Sensitivity
      < 3 μV at 52 dB(A) rms S/N (at peak deviation)

    • Squelch
      Adjustable from 3 dBμV to 28 dBμV

    • AF frequency response
      50 to 16,000 Hz (–3 dB)

    • Audio adjustment range
      45 dB, adjustable in 5 dB steps

    • Line / Mic level
      20 dB, switchable

    • Receiver Principle
      Double superheterodyne

  • Diversity principle
    Antenna switching diversity via internal antennas

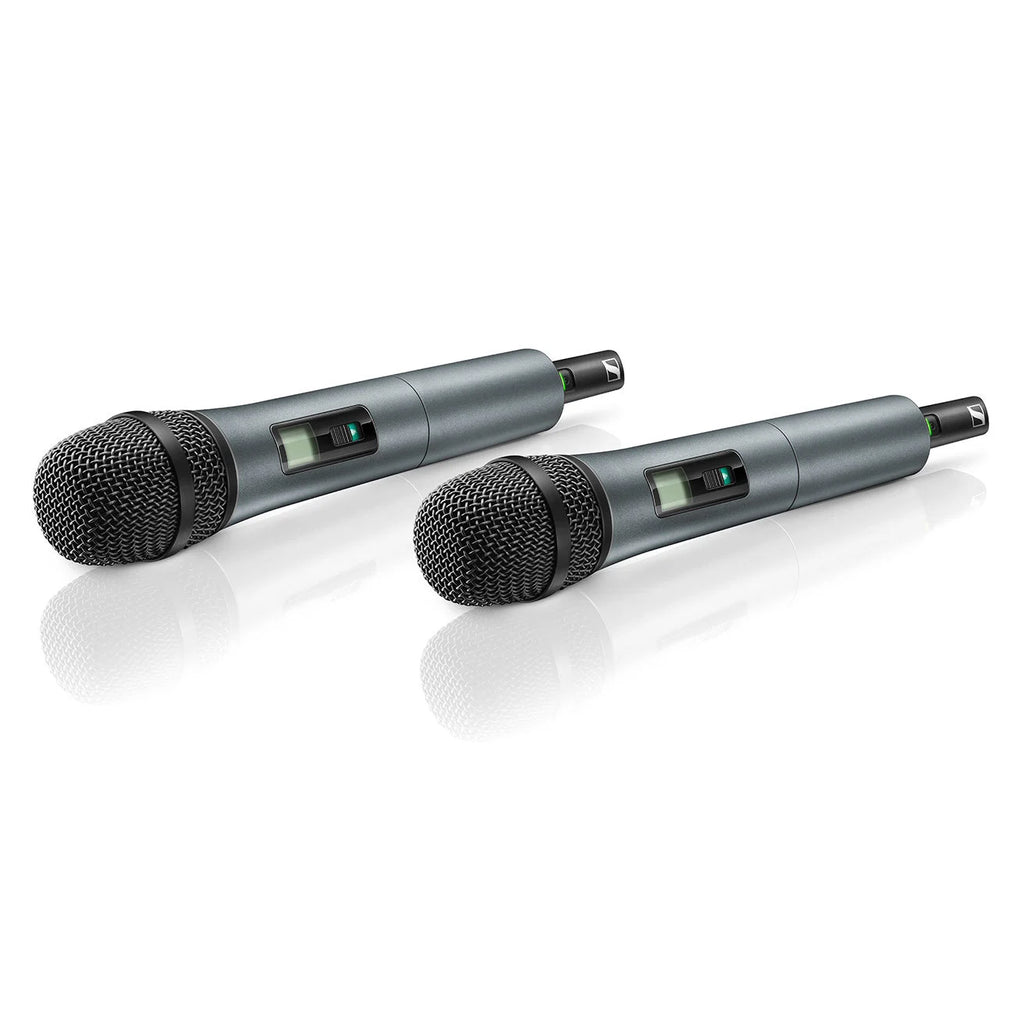

SKM 825-XSW / SKM 835-XSW
    • Dimensions
      Approx. 260 x 50 mm

    • Microphone
      Dynamic

    • Weight
      Approx. 245 g

    • Pick-up pattern
      Cardioid

    • RF output power
      10 mW

    • Operating time
      Approx. 10 hrs

    • Power supply
      2 AA size batteries, 1.5 V

  • Housing
    Rugged ABS housing
