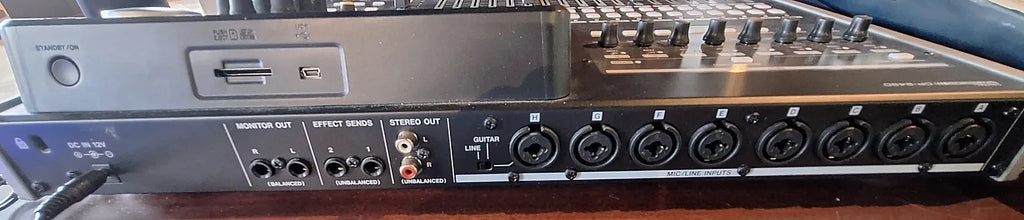

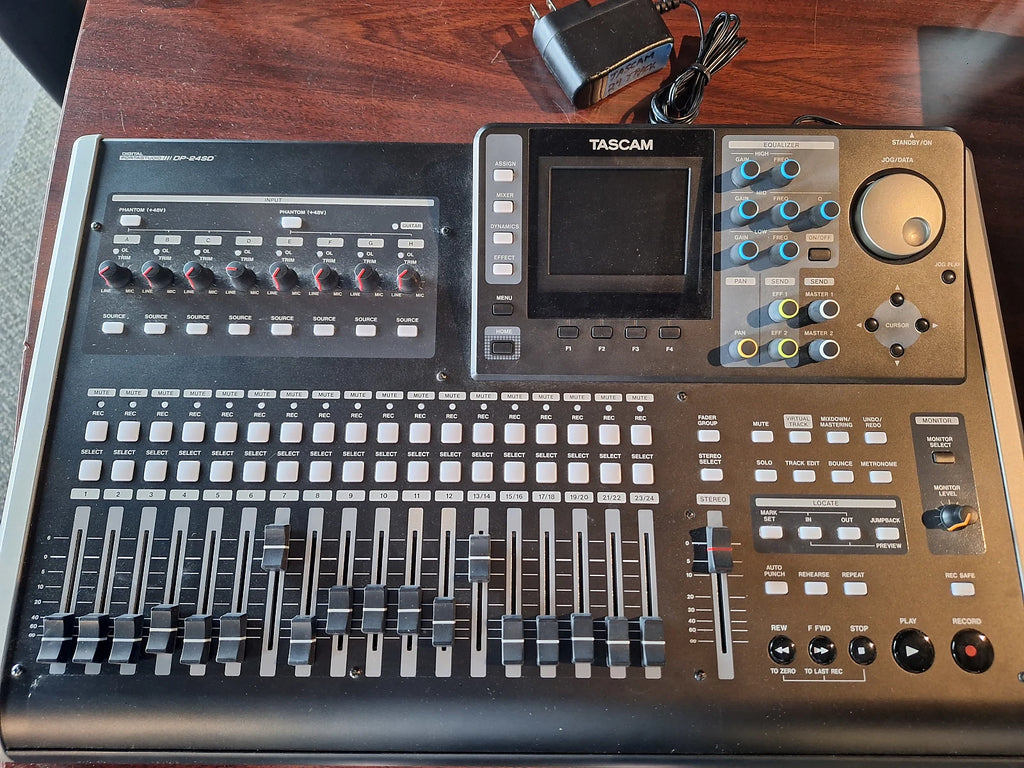

Tascam DP-24SD Digital Portastudio (Used)

Record up to 24 Tracks on TASCAM's award-winning Portastudio without turning on a computer.

Record, Mix, and Master in a Single Workstation

24 Recording Tracks with 8 Track Simultaneous Recording

Intuitive for Players, Powerful enough for Pro Engineers

Onboard EQ, Effects, and Processors for Ultimate Sound Design

Record Hundreds of Hours of Music on a Single SD Card (Not included)

Spec description

Recording MediaSD (512MB to 2GB) / SDHC card (4GB to 32GB)File SystemSD card: FAT16 / SDHC card: FAT32INPUT A-H XLR ConnectorXLR-3-31 (1: GND, 2: HOT, 3: COLD), BalancedInput impedance2.4kΩNominal input level–14dBuMaximum input level+2dBuTRS Connector1/4" (6.3mm) TRS phone jack, BalancedInput impedance22kΩ or more / 1MΩ (when INPUT H, GUITAR selected)Nominal input level+4dBuMaximum input level+20dBuSTEREO OUT ConnectorRCA pin-jack, UnbalancedOutput impedance200ΩNominal output level–10dBVMaximum output level+6dBVEFFECT SENDS Connector1/4" (6.3mm) TS phone jack, UnbalancedOutput impedance200ΩNominal output level–10dBVMaximum output level+6dBVMONITOR OUT Connector1/4" (6.3mm) TRS phone jack, BalancedOutput impedance200ΩNominal output level–2dBuMaximum output level+14dBuPHONES Connector1/4" (6.3mm) stereo phone jackMaximum output level70mW + 70mW (THD+N 0.1% or less, 32Ω loaded)USB ConnectorUSB Mini-B type FormatUSB2.0 High-Speed mass-storage classREMOTE Connector2.5mm TRS jackPowerDedicated AC adapter (PS-1220E or GPE248-120200-Z, included)Power consumption12W (when phantom power supplying)Dimensions (W×H×D)20.2" × 4.1" × 13.4" / 514 × 100.4 × 336.9 mmWeight13.67 lbs. / 6.2 kg
