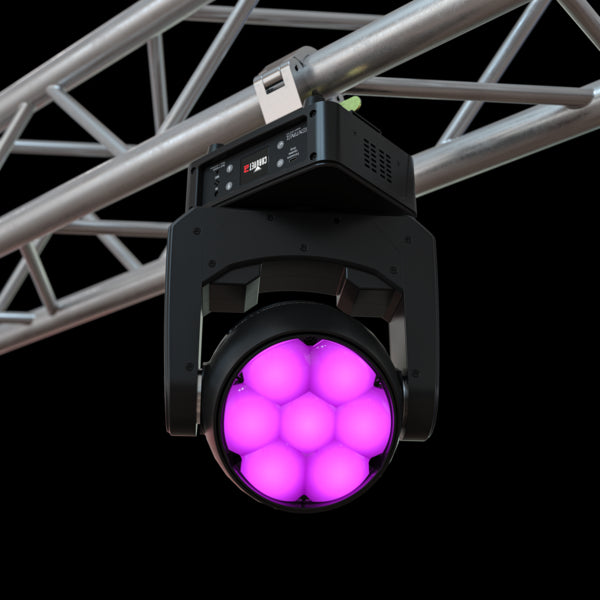

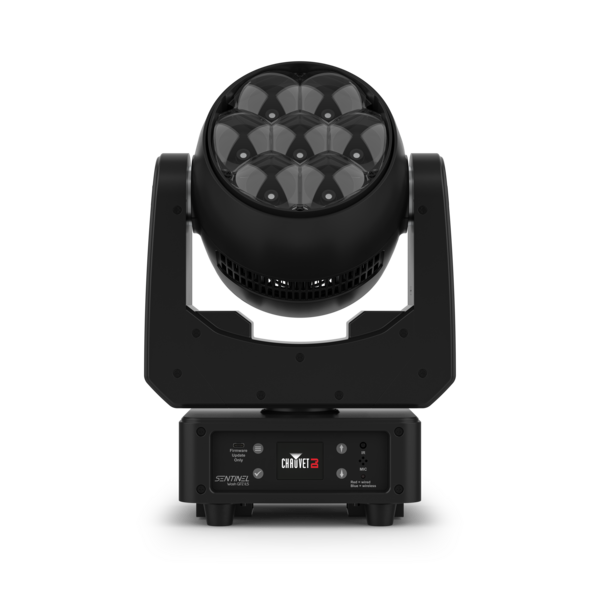

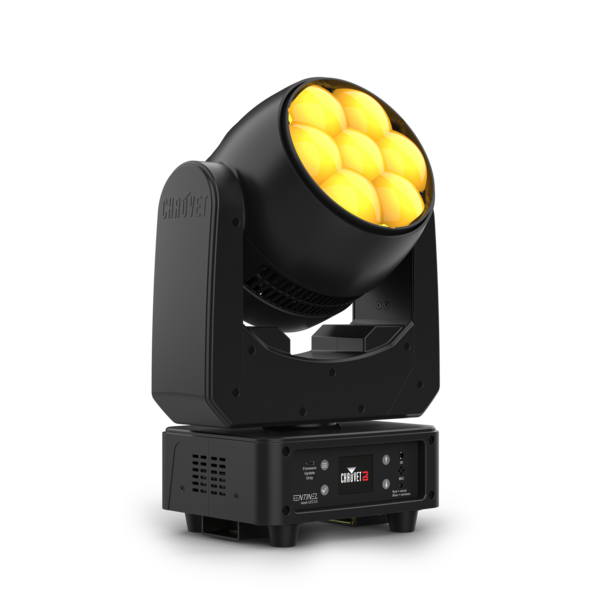

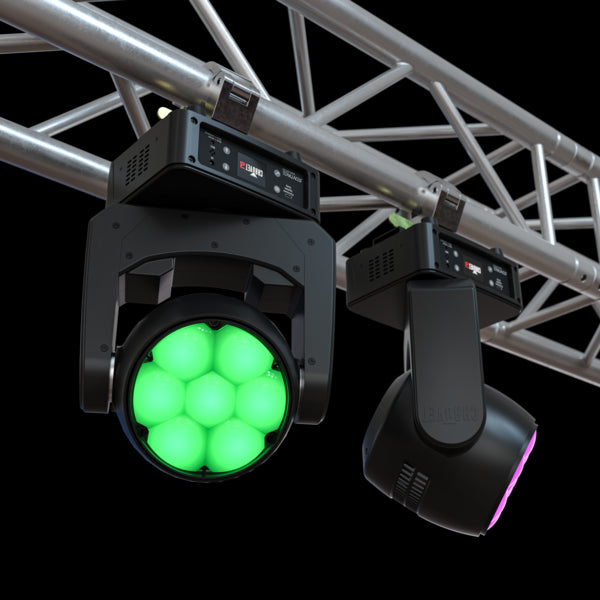

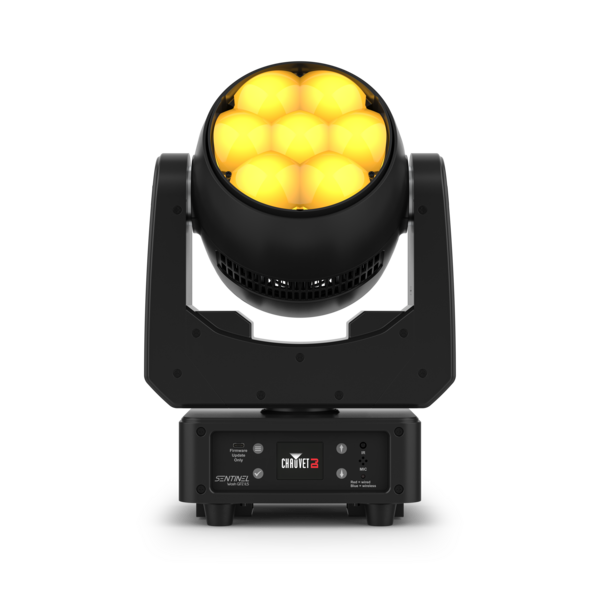

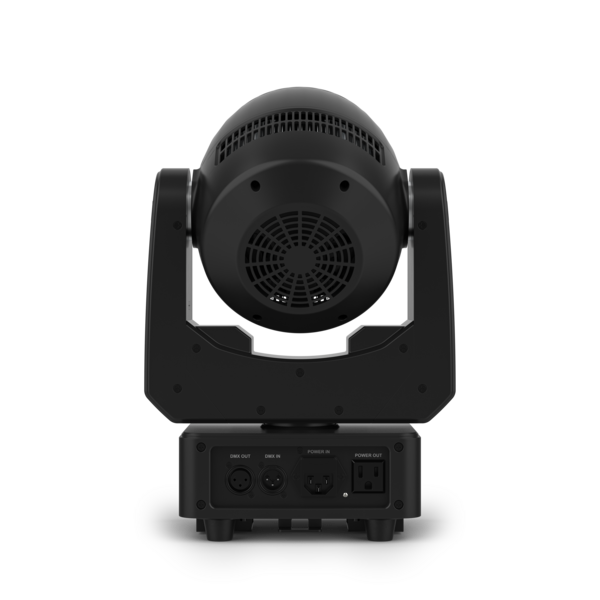

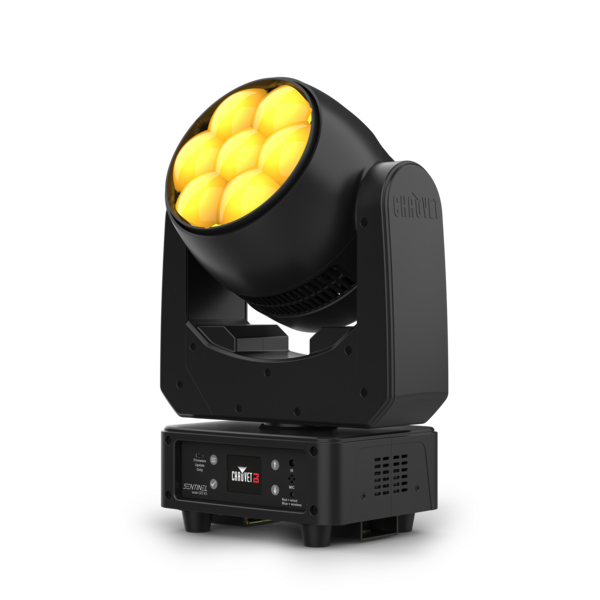

Sentinel Wash Q7Z ILS
Compact RGBW moving-head wash with motorized zoom, built-in wireless D-Fi, and ILS compatibility
Product Overview
Sentinel Wash Q7Z ILS is a compact moving-head wash equipped with seven 20-watt quad-color RGBW LEDs. Motorized zoom provides flexible coverage for short-throw and long-throw applications, while built-in wireless D-Fi and ILS compatibility simplify integration into professional lighting systems.
Product Features
- Compact moving-head wash fitted with seven powerful 20-watt quad-color RGBW LEDs.
- Motorized zoom provides flexible coverage for short-throw and long-throw applications.
- Built-in D-Fi transceiver communicates DMX or ILS signals wirelessly.
- Full-color LCD display provides easy navigation and direct access to fixture functions.
- ILS compatibility allows the fixture to operate within the Integrated Lighting System ecosystem.
- Totem Mode keeps the moving head focused on the dance floor or performance area.
- Power linking reduces setup time and the number of extension cords required when using multiple fixtures.
- Fits best in the optional CHS-40 VIP Gear Bag for storage and transportation.
Key Performance
140 W
Total LED Output
5° to 27°
Motorized Zoom
30,537 Lux
Narrow Illuminance at 2 m
50,000
Hour LED Life
Control and Movement
DMX Channels
9 or 14
DMX Connectors
3-pin XLR
Pan and Tilt
540° pan / 225° tilt
Selectable Pan Ranges
180°, 360°, or 540°
Selectable Tilt Ranges
90°, 180°, or 225°
Wireless Control
Built-in D-Fi transceiver
ILS Compatibility
Yes
Optional Controllers
IRC-6 and ILS Command
Optical Specifications
Light Source
7 quad-color RGBW LEDs
LED Output
140 W total, 5 A
LED Life Expectancy
50,000 hours
Strobe Rate
0 to 20 Hz
Zoom Angle
5° to 27°
Narrow Illuminance
30,537 lux at 2 m at 5°
Wide Illuminance
3,390 lux at 2 m at 27°
Power Specifications
Input Voltage
100 to 240 VAC, 50/60 Hz, auto-ranging
Power and Current at 120 V
148 W, 1.2 A, 60 Hz
Power and Current at 230 V
146 W, 0.7 A, 50 Hz
Power Linking at 120 V
Up to 6 units
Power Linking at 230 V
Up to 12 units
Included Cable Length
5 ft. (1.5 m)
Physical Specifications
Weight
13.8 lb. (6.3 kg)
Manufacturer-Listed Size
4.5 x 2.4 x 1.4 in.
115 x 61 x 35 mm
115 x 61 x 35 mm
Recommended Gear Bag
CHS-40 VIP Gear Bag
Dimensions are displayed exactly as published on the manufacturer cut sheet.
Certifications and Approvals
CE, RoHS, and FCC
