Rane System One

Rane System One

$2,499.00
$2,499.00 $2,999.00

PREORDER NOW

All-In-One Standalone Motorized DJ System

SYSTEM ONE redefines what’s possible for open format DJs, allowing for dynamic, laptop-free performances and an unmatched level of creative freedom—all in one system. 

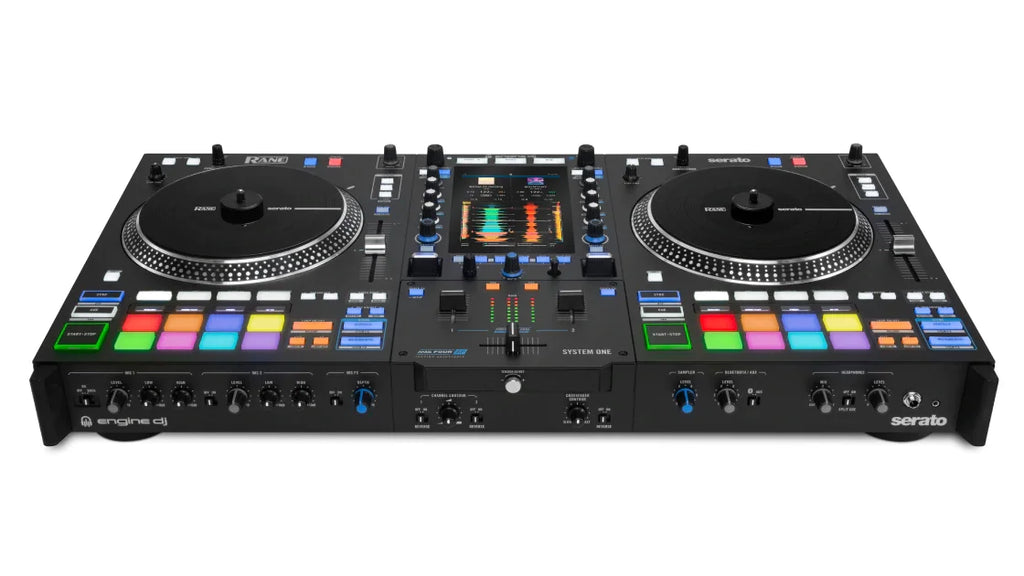

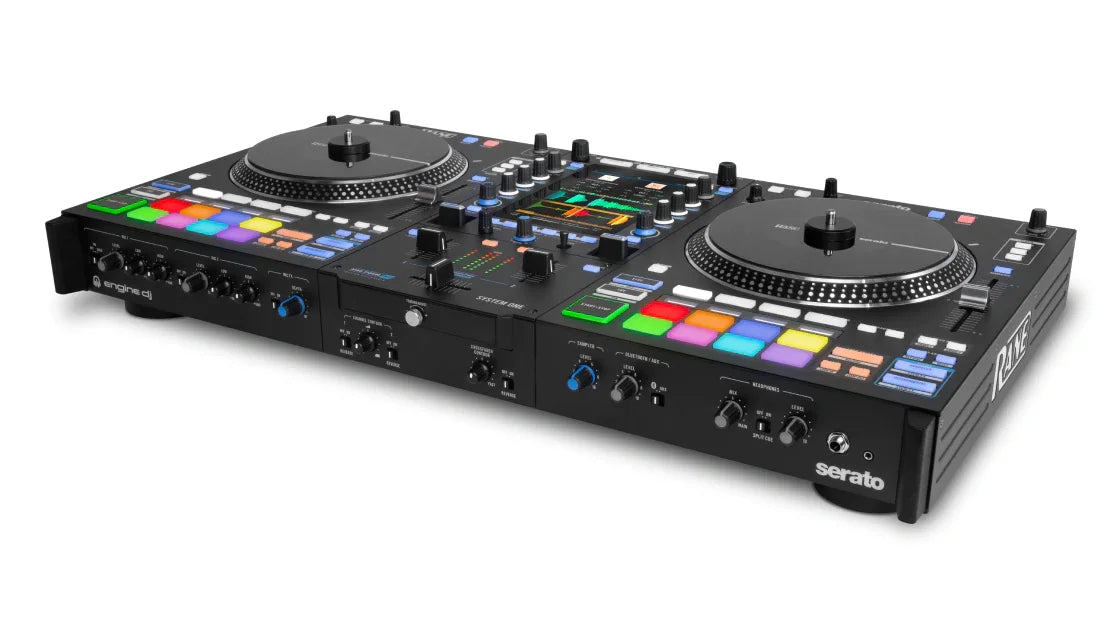

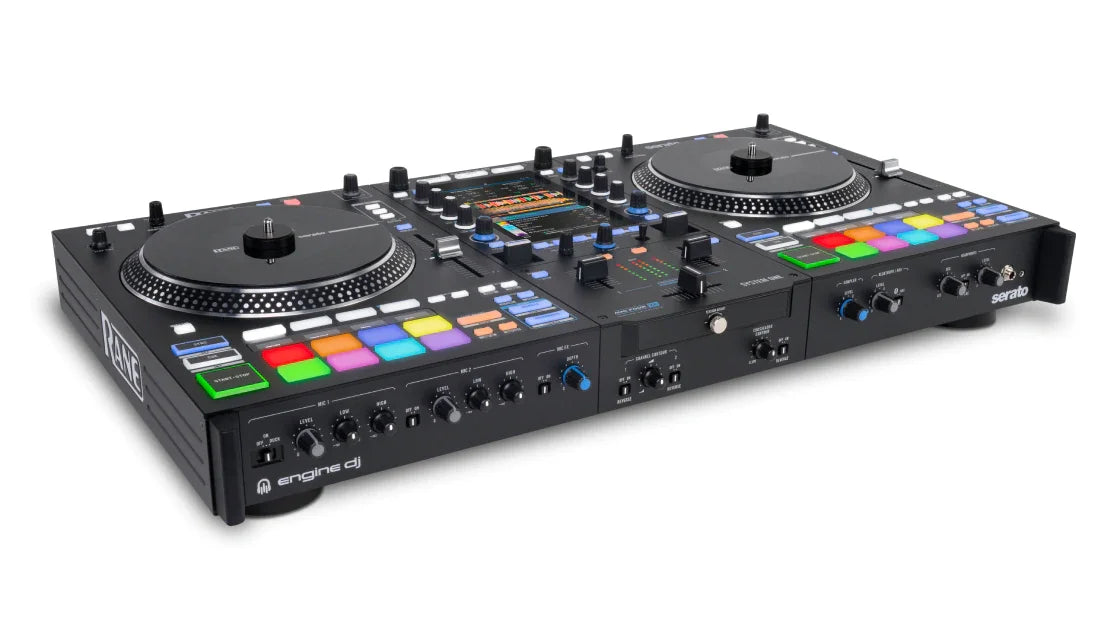

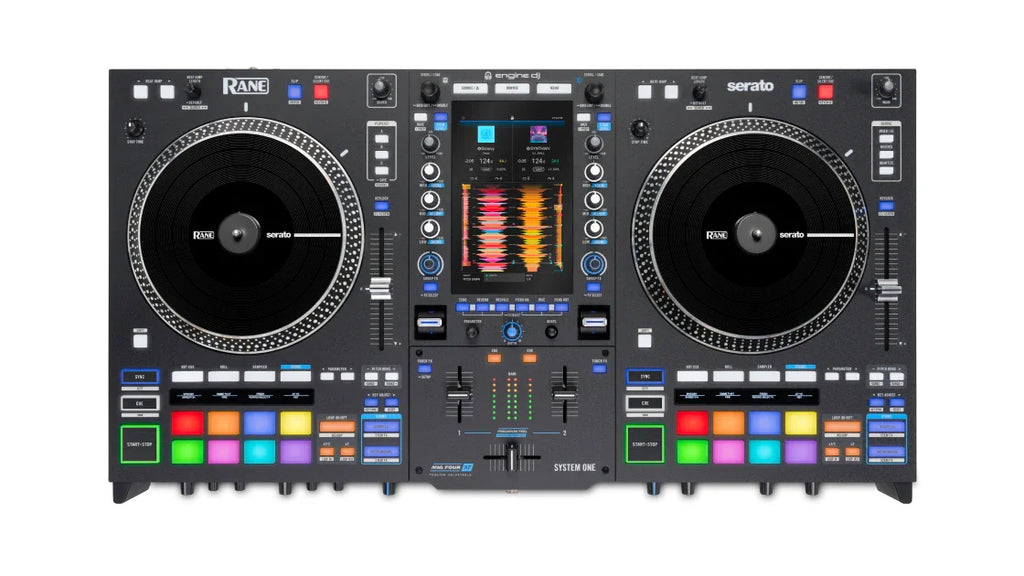

RANE SYSTEM ONE is the world’s first all-in-one standalone DJ system with motorized platters, fusing the legacy feel of turntables with the freedom of modern, laptop-free standalone DJ technology.

The first RANE product with Engine DJ on board, SYSTEM ONE allows open format DJs to experience the trusted performance of RANE hardware while seamlessly mixing between standalone media, music streaming services, and software sources like Serato DJ and Algoriddim djay (support coming in early 2026.) With loads of  FX options and multiple ways to DJ with Stems, this all-in-one system gives you the power to unlock new levels of creativity and elevate every performance. 

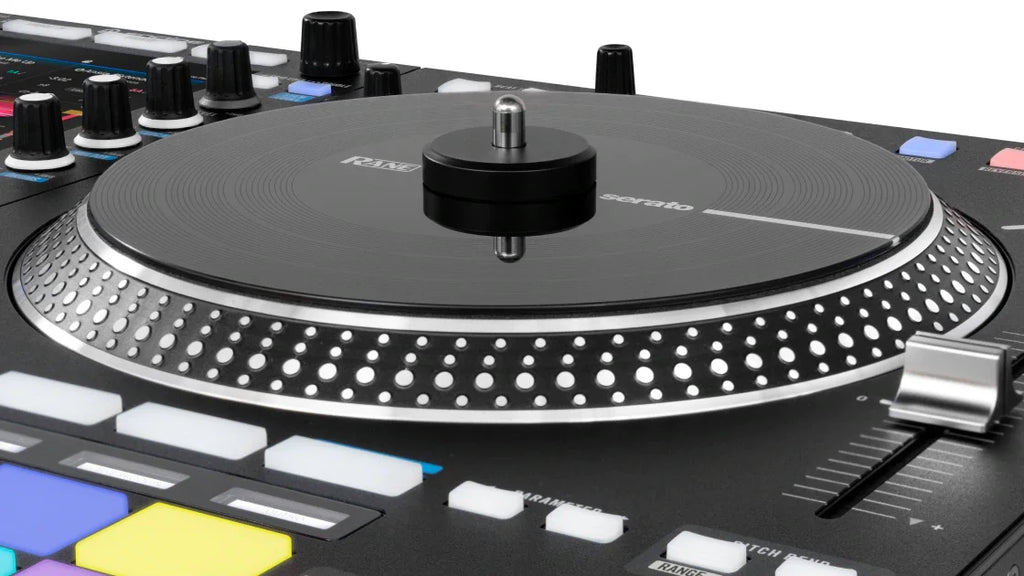

SYSTEM ONE is designed to streamline your entire workflow. The embedded Engine DJ operating system allows you to deliver dynamic performances without a laptop. This technology, combined with the 7.2” aluminum motorized platters, empowers open format DJs with an unmatched level of freedom while maintaining the legacy feel of turntables

Technical Specifications

Digital Audio

Converters

Cirrus Logic, 24-bit PCM, 44.1 kHz  

Digital Signal Processing

32-bit, Floating Point, Double Precision  

Audio Outputs

Main Output 

(XLR, RCA stereo pair)  

DAC:

24-bit

Dynamic Range: 

117 dB  

Output Type:

Balanced XLR    

Max Output Level (XLR): 

8 Vrms 

Max Output Level (RCA): 

4 Vrms

Frequency Response:

20 Hz–20 kHz: +0, -1 dB  

THD+N:

0.002% @ 1 kHz, 4 Vrms  

Channel Separation:

> 80 dB 

Input Gain Trim Range:

Off to +12 dB  

Output Level Range:

Off to 0 dB  



Booth Output

(1/4” [6.35 mm] TRS)  



DAC:

24-bit 

Dynamic Range: 

117 dB 

Output Type:

Balanced TRS 

Max Output Level:

8 Vrms  

Frequency Response:

20 Hz – 20 kHz: +0, -1 dB  

THD+N:

0.002% @ 1 kHz, 4 Vrms  

Channel Separation:

> 80 dB 

Input Gain Trim Range: 

Off to +12 dB  

Output Level Range: 

Off to 0 dB  



Headphone Output

(1/4” [6.35 mm] and 1/8” 
[3.5 mm] TRS)  



DAC:

24-bit 

Dynamic Range: 

117 dB 

Output Type:

Stereo TRS (1/8” and 1/4” jacks)  

Cue Features:

Cue / Split Cue  

Max Output Level (No Load):

4 Vrms  

Max Power Output @ 50 Ω: 

150 mW  

Frequency Response: 

20 Hz – 20 kHz: +0, -1 dB

THD+N @ 1 kHz, 4 Vrms (No Load): 

0.002% 

THD+N @ 1 kHz, Full Power @ 50 Ω: 

0.08%  

Channel Separation: 

> 80 dB

Level Control Range:

Off to 0 dB  



Inputs (Combo XLR/1/4”
[6.35 mm] TRS) 



ADC: 

24-bit, 115 dB DR  

Input Type:

Balanced XLR/TRS combo  

Max Input Level: 

110 mV  

Analog Gain:

25 dB  

Max System Gain:

60 dB  

Frequency Response @ 20 Hz:

-2.5 dB  

Frequency Response @ 20 kHz: 

-5 dB  

THD+N @ 0.1 Vin, Gain = 25 dB: 

0.015% (100 Hz–20 kHz)  

DR (A-weighted), Gain = 25 dB: 

102 dB  

DR (A-weighted), Gain = 60 dB:

72 dB 

IRN (A-weighted), Gain = 60 dB: 

-132 dB  

IRN (20 Hz–20 kHz), Gain = 60 dB:

-130 dB  



Auxiliary Input

(RCA stereo pair)



ADC:

24-bit, 115 dB DR (A-weighted)  

Input Type:

Unbalanced RCA

Max Input Level: 

4 Vrms  

Frequency Response: 

20 Hz –20 kHz: +0, -1 dB 

THD+N @ 3 Vrms, Unity Gain:

0.005% (20 Hz–20 kHz) 

Gain Range:

Off to +12 dB

DR (A-weighted), Unity Gain:

108 dB

Crosstalk: 

 ≤ -90 dB 

Performance Pads

Pads: 

16 total, on/off multi-color back-lit (8 per deck)  

Faders

Channel Faders: 

2 PRECISION FEEL tension-adjustable with contour and reverse 

Crossfader: 

1 MAG FOUR tension-adjustable with contour and reverse

Displays

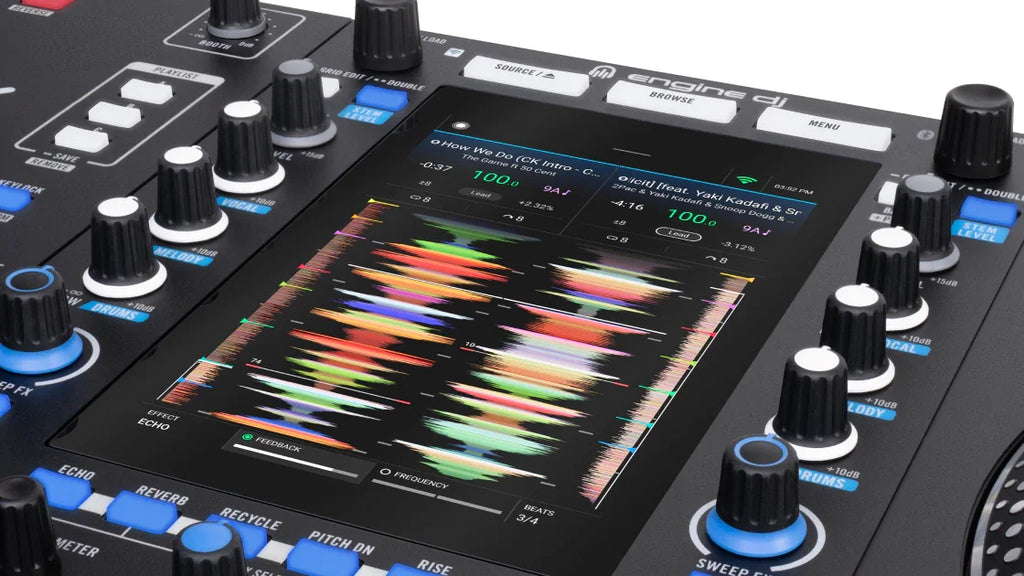

Main Display: 

7"/178 mm (diagonal) full-color LED-backlit display with touch interface  

Pad Displays: 

(8) 128 x 32 monochrome OLEDs 

CPU

Processor: 

8-core ARM®

RAM: 

4 GB 

Wi-Fi & Bluetooth  



Wi-Fi:  

  • 2.4GHz/5GHz  
  • 802.11a/b/g/n/ac  
  • Wi-Fi 5  



Bluetooth:

v5.4 

Supported Media



File Systems

  • exFAT (recommended)  
  • FAT32



Playable Formats

  • AAC/M4A  
  • AIF/AIFF (44.1–192 kHz, 16–32-bit)  
  • ALAC  
  • FLAC  
  • MP3 (32–320 kbps)  
  • MP4  
  • Ogg Vorbis  
  • WAV (44.1–192 kHz, 16–32-bit)

Streaming Services

  • Onboard Streaming Services (subscription required)  
  • Amazon Music Unlimited  
  • Apple Music  
  • Beatport  
  • Beatsource  
  • SoundCloud Go+  
  • TIDAL 

Lighting



Onboard Smart Lighting

  • Philips Hue  
  • Nanoleaf  



Supported DMX  

  • SoundSwitch DMX Micro  
  • SoundSwitch Control One  

Power

(Internal with locking IEC)

Input Type: 

Locking IEC 

Input Voltage: 

100–240 VAC 

Frequency:

50/60 Hz

Power Consumption: 

150 W 

General

Dimensions (W x D x H): 

Inches: 29.00 x 15.87 x 5.70  

Centimeters: 73.66 x 40.30 x 14.47  

Weight:

29.4 lbs (13.33 kg)

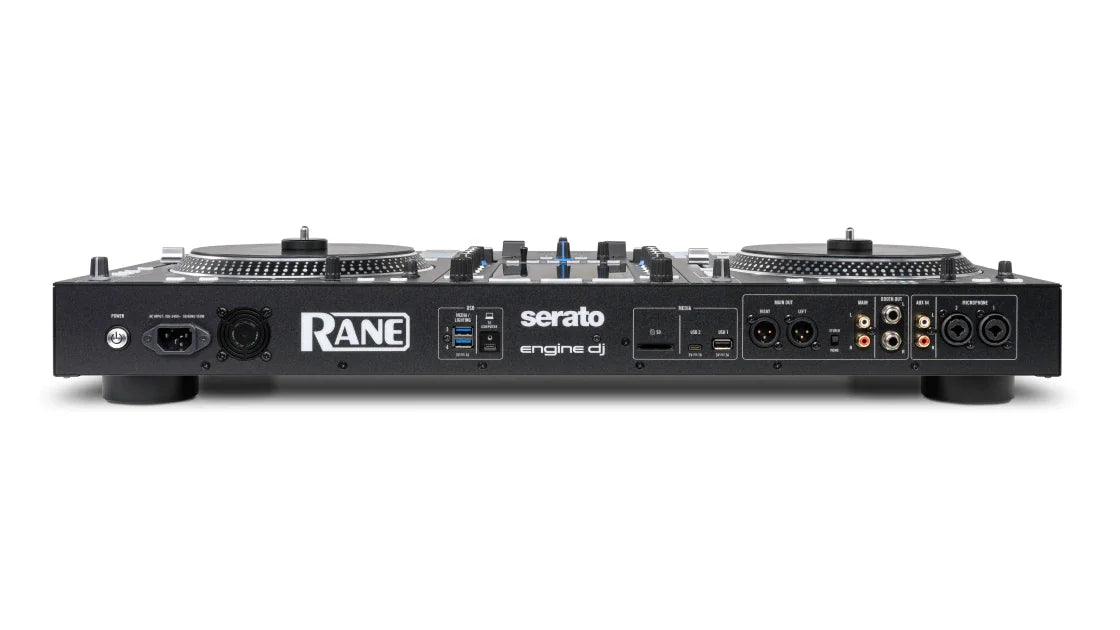

Connections

Inputs


Microphones:

  • Mic 1: XLR + 1/4” Combo Jack
  • Mic 2: XLR + 1/4” Combo Jack


Aux: 

Stereo Pair (RCA)

Outputs


Main:

(2) XLR, Stereo Pair (RCA)


Booth:

(2) 1/4” TRS Jacks


Headphones:

  • 1/4” Stereo Jack
  • 3.5-mm Stereo Mini-Jack

Media Inputs


USB:

  • USB 1: Type-A, USB 2.0 High Speed
  • USB 2: Type-C, USB 3.0 SuperSpeed
  • USB 3: Type-A, USB 3.0 SuperSpeed
  • USB 4: Type-A, USB 3.0 SuperSpeed
  • USB to Computer: Type-C, USB 3.0 SuperSpeed


SD Media:

SD, SDHC, SDXC


Internal HD:

SATA 3.0
