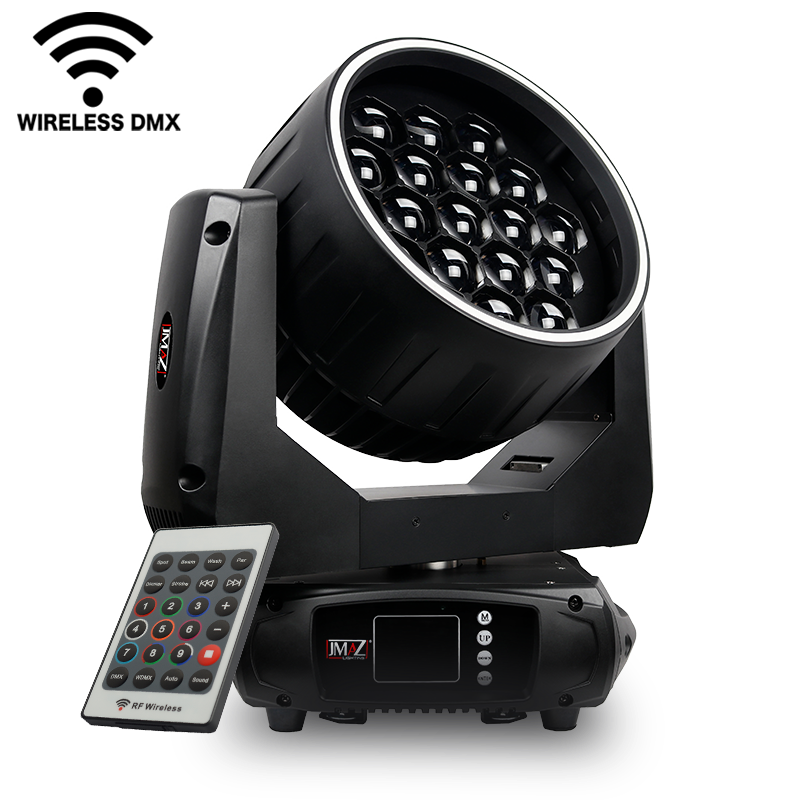

PHANTOM PIXELWASH 1930Z

PHANTOM PIXELWASH 1930Z

Sale price  $1,399.95 Regular price $1,999.95

The PHANTOM PIXELWASH 1930Z was designed for production companies, concert venues, lighting designers, and event professionals who need a high-output moving wash fixture capable of producing vibrant color washes, sweeping beam effects, and eye-catching pixel animations. Combining a powerful RGBW LED engine with individual pixel control, a dynamic RGB ring effect, and an extensive motorized zoom range, the PHANTOM PIXELWASH 1930Z delivers exceptional creative flexibility for concerts, theatres, houses of worship, clubs, and live productions.

Powered by a **570W RGBW LED engine (19 × 30W LEDs)** with an integrated **10W RGB SMD ring effect (48 × 0.2W LEDs)**, the PHANTOM PIXELWASH 1930Z delivers rich color mixing, adjustable white light from **2700K to 8000K**, and vibrant visual effects. Its **motorized 6° to 60° electronic zoom** transitions seamlessly from tight aerial beams to broad, even stage washes, while **individual pixel control** and **graphic effect macros** unlock an extensive range of dynamic chases, animated looks, and layered visual effects. Featuring Wireless DMX, DMX512 control, RF remote operation, smooth 8/16-bit pan and tilt movement, multiple DMX personalities, nine built-in auto and sound-active programs, and a 2.4-inch TFT LCD display, the PHANTOM PIXELWASH 1930Z provides intuitive operation and professional performance for both programmed productions and standalone applications.

Whether creating immersive stage washes, producing animated pixel effects, highlighting performers, enhancing concerts, or transforming live events with dynamic movement and color, the JMAZ PHANTOM PIXELWASH 1930Z delivers exceptional output, advanced pixel control, and professional moving wash performance for today's demanding lighting environments.

Key Features

  • High-output 570W RGBW LED engine featuring 19 × 30W LEDs, combined with a 48-LED RGB SMD ring effect, delivers brilliant wash output, vibrant color mixing, and striking visual effects from a single fixture.
  • Motorized electronic zoom adjusts seamlessly from a tight 6° beam to a wide 60° wash, providing exceptional versatility for beam, wash, and stage lighting applications.
  • Individual pixel control, integrated RGB ring effects, and built-in graphic effect macros create dynamic chases, layered animations, and eye-catching pixel-mapped visuals with minimal programming.
  • Precision 630° pan and 270° tilt movement with smooth 8-bit and 16-bit positioning, combined with an adjustable 2700K–8000K color temperature range, delivers professional performance for concerts, productions, and live events.
  • Wireless DMX, RF remote control, and 3-pin DMX connectivity, together with built-in auto and sound-active programs, provide flexible standalone or console-controlled operation.
  • Professional touring design features rugged cast aluminum construction, powerCON IN/OUT connectivity, quick-lock omega brackets, and a durable chassis built for rental inventories, touring productions, theaters, and permanent installations.

Technical Specifications

Light Source

  • 570W (19 x 30W) RGBW LEDs
  • Ring Effect: 10W (48 x 0.2W) RGB SMD LEDs

Color System

  • Color LEDs: RGBW
  • Color SMDs: RGB
  • CCT: 2700K -8000K

Optics

  • Electronic Zoom: 6° to 60°

Dynamic Effect

  • Individual Pixel Control, Graphic Effect Macro
  • 9 Built-In Auto/Sound Programs
  • Electronic Zoom

Control

  • Protocols: 3-Pin In/Out DMX512, Wireless DMX
  • Personalities: 2 Modes 13/15
  • Wireless Control: RF Remote
  • Display: 2.4″ TFT LCD Display

Electronics

  • Dimmer: 0-100% Linear Dimmer
  • Operating Temperature: -35° C to 45° C

Body

  • Quick-Lock Omega Bracket
  • Pan Angle: 630°
  • Title Angle: 270°
  • High Temperature Engineered Plastic and Cast Aluminum Casing

Physical

  • Cooling: Fan
  • Pan/Tilt: 8/16 bit smooth
  • powerCON In/Out

Electrical

  • Max Power Consumption: 570W
  • Input Voltage: AC90-260V 50HZ/60HZ
  • Box Content
  • 2 x Omega Brackets
  • 1 x DMX Cable
  • 1 x powerCON Cable
  • 1 x IR Remote
  • 1 x Safety Cable
  • 1 x User Manual

Item Dimensions & Weight

  • Dimensions: 16.2″ x 11.1″ x 16.4″
  • Weight: 29 lbs

UPC

  • 93674449893

Warranty

  • 2 Years
