MAD PAR RUBIX 6PK

MAD PAR RUBIX 6PK

Sale price  $1,899.95 Regular price $2,899.95

The MAD PAR RUBIX 6 Pack was designed for production companies, event professionals, rental houses, DJs, and installers who need a complete battery-powered uplighting system capable of delivering layered lighting effects and exceptional creative versatility. Combining six dual-source IP65 uplights with a rugged injection-molded case, the MAD PAR RUBIX 6 Pack provides a professional all-in-one solution for weddings, architectural lighting, concerts, corporate events, and outdoor productions.

Each fixture is powered by a **38W dual-source LED engine**, featuring a **20W RGBA LED** paired with an **18W RGB + Warm White SMD LED array (36 × 0.5W LEDs)**. This unique combination allows the center LED and outer SMD ring to operate independently, creating vibrant color washes, dynamic layered effects, and adjustable white light from **2300K to 8500K**. The fixture features a **40° primary beam angle**, expanding to **60°** with the included diffuser, while the **120° outer SMD array** delivers broad ambient coverage and eye-catching visual effects. With up to **16 hours of battery operation (40 hours in battery-saving mode)**, Wireless DMX, IR remote control, **73 preset color programs per light source**, **99 preset color combinations**, **80 advanced sound-active modes**, **72 built-in auto programs**, four dimming modes, and fanless operation, the MAD PAR RUBIX offers unmatched flexibility for a wide range of applications. The included **IP65 waterproof injection-molded case** securely stores all six fixtures and accessories for organized transport and dependable protection between events.

Whether illuminating architectural features, enhancing wedding venues, creating layered stage lighting, or producing colorful outdoor displays, the JMAZ MAD PAR RUBIX 6 Pack delivers professional-grade performance, innovative dual-source effects, and the convenience of a complete production-ready lighting system.

Key Features

  • Complete six-fixture lighting system includes six MAD PAR RUBIX uplights housed in a rugged IP65 injection-molded charging case, providing a portable solution for professional event production.
  • Innovative 38W dual light-source engine combines a 20W RGBA LED with an 18W RGB+WW SMD LED array in each fixture, delivering vibrant color mixing, warm white output, and layered lighting effects.
  • Versatile optics feature a 40° primary beam, included 60° diffusers for wider wash coverage, and a 120° outer SMD LED ring for immersive ambient lighting and eye-catching visual effects.
  • Integrated lithium-ion batteries provide up to 16 hours of runtime on a single charge, or up to 40 hours in battery saver mode, with fast 4-hour recharging for maximum event readiness.
  • Wireless DMX and IR remote control, together with 73 preset color programs per light source, 99 dual-source color combinations, 80 sound-active modes, and 72 built-in auto effects, provide exceptional creative flexibility.
  • IP65-rated construction, fanless operation, and the included injection-molded carrying case make the MAD PAR RUBIX 6PK an ideal all-in-one solution for weddings, outdoor events, touring productions, architectural lighting, and rental applications.

Technical Specifications

Light Source

  • 20W RGBA LED
  • 18W (36 x 0.5W) RGB + WW SMD LED
  • LED Life Expectancy: 50,000 hrs

Color System

  • RGBA Color Mixing 8/16 bit
  • RGB+WW SMD LED
  • CCT: 2300K to 8500K

Optics

  • Advanced Lens Optic: 40° Beam Angle
  • Diffuser Angle (Included): 60° Beam Angle
  • SMD LED: 120° Beam Angle
  • Dynamic Effect
  • Max 16 Hour Battery Life / 40 Hour In Battery Saving Mode
  • Charging Time: 4 Hours
  • Selectable Battery Saving Mode: 25%, 50%, 75%, 100%
  • 73 Preset Color Programs per light source (LED & SMD)
  • 99 Preset Color Combinations for LED + SMD
  • 80 Advanced Sound Active Mode
  • 72 Auto / Fade Built-In Programs
  • Stand Alone Color Mixing
  • Electronic Dimmer
  • Fading/Jumping Macros Light Change And Jump
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0-25 Hz
  • Preset Color Temperature
  • 4 Favorite Color Customization Triggered via DMX / IR Remote

Control

  • Control Protocol: Wireless DMX, IR Remote
  • Personalities: 5/8/12/20/25 CH DMX Modes
  • OLED Graphical Display

Electronics

  • Strobe Shutter: 1-25Hz
  • Dimming Modes: 4

Body

  • Die-Cast Aluminum and Steel Structure

Physical

  • Adjustable Tilt Base: 0-40 Degree
  • Cooling: Fanless
  • Certification / Qualifications
  • RoHS, CE, FCC
  • IP Rating: IP 65
  • Operating Temperature: –10 ° C ( 14 ° F) To 60 ° C ( 140 ° F)

Electrical

  • Input Voltage: 100 V – 240 V AC, 50/60 Hz
  • Power Consumption: 60W
  • PWM: 1.5KHz
  • Battery Voltage: 11.1V
  • Battery Capacity: 10,400 mAH, 115.5 Wh/hour
  • Charger: 12.6V, 3A ***UL Listed***
  • Rechargeable Battery Type: Lithium Ion ***UL Listed***

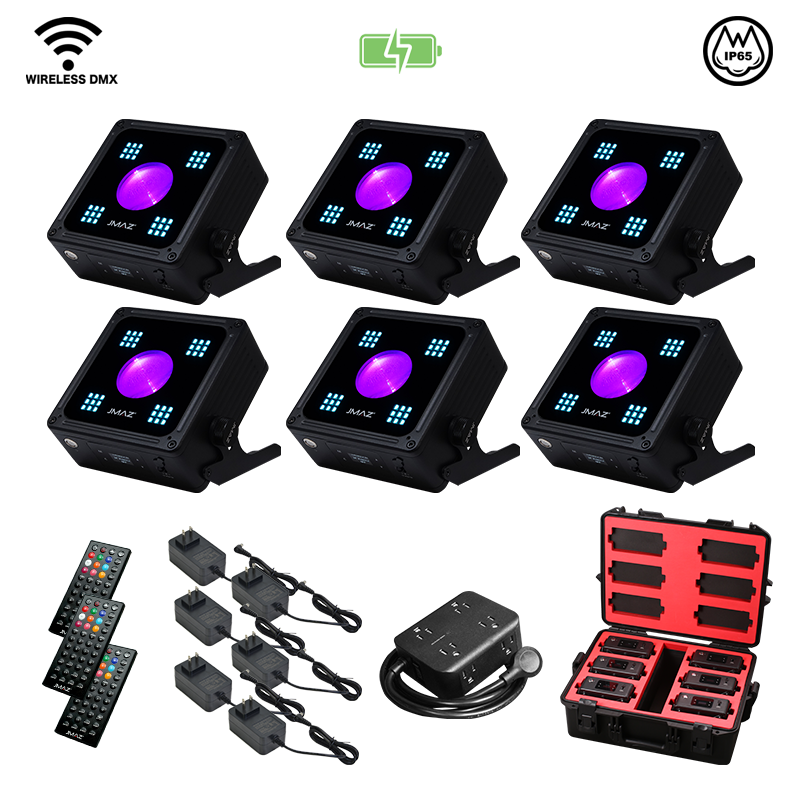

Box Content

  • 1 x IP65 Waterproof Injection Mold Case (Holds 6 Units)
  • 6 x Mad Par RUBIX
  • 6 x Diffuser
  • 6 x A/C Charger
  • 3 x IR Remote
  • 1 x 6in1 Power Charger
  • 1 x User Manual
  • 1x QSG

Item Dimensions & Weight

  • Dimensions: 7.2″ x 5.9″ x 3″
  • Weight: 4.4 lbs

UPC

  • 618528599137
