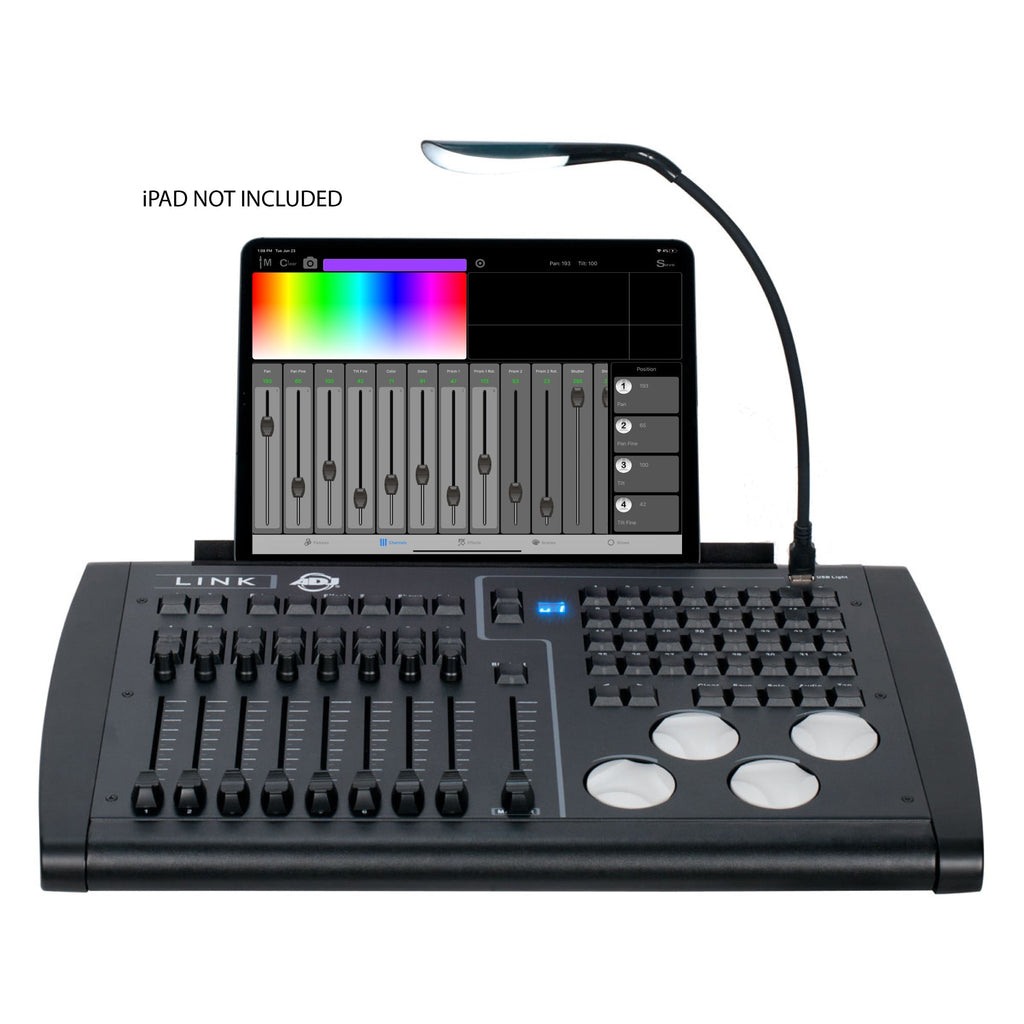

4-Universe DMX hardware controller for use with iPad and ADJ's Airstream LINK iOS APP.

Specifications

CONTROL / CONNECTIONS:

(6) General Purpose Buttons

(1) Master and (8) Control 100mm Faders

(16) Page Playback Buttons Above Faders

(8) Rotary Dials with Push-In Selection Above Faders

(1) Blackout Button

(32) Instant Effect or Scene Calling Buttons

(8) Bump / Momentary Effect Buttons

(4) Rotary Encoder Wheels with Push-In Selection

USB 2.0 Type “B” Port

(4) 5-pin DMX output ports

ADDITIONAL FEATURES:

WiFi and DMX512

2.4 and 5Ghz GHz DSSS Wifi Network

4, Hardwired, DMX Universes

USB Input for Gooseneck Work Light

Removable Outer Case for 6U Rack Mounting

Kensington™ Security Device Slot

SIZE / WEIGHT:

Length: 20.3” (514mm)

Width: 13.2” (336mm)

Vertical Height: 3.5” (88mm)

Weight: 13.0 LBS. (5.9 kg)

INCLUDED ITEMS:

USB Cable

Mult-voltage DC9V Power Supply (100-240V, 50/60Hz)

4 Power Adapters: Type A (US), Type C (Europe), Type G (UK), Type I (Australia, China)

Rack Mount Kit

COMPATIBILITY:

iPad only

Requires iPadOS 14.5 or later

APPROVALS:

FCC | CE | UKCA | cETLus (#5014475)

Specifications and documentation subject to change without notice.
