GigBAR Move + ILS

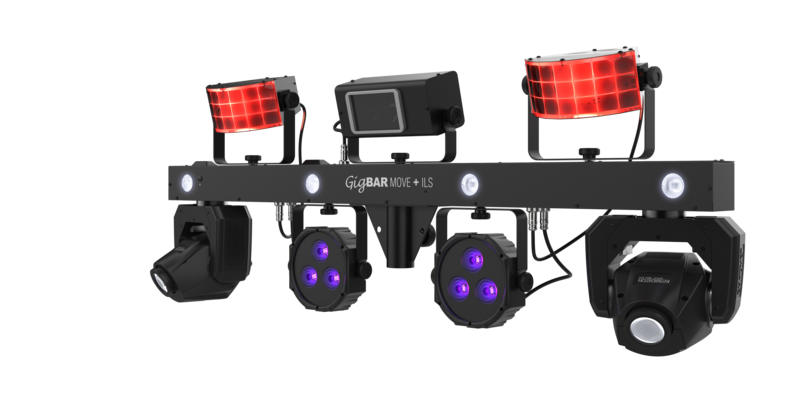

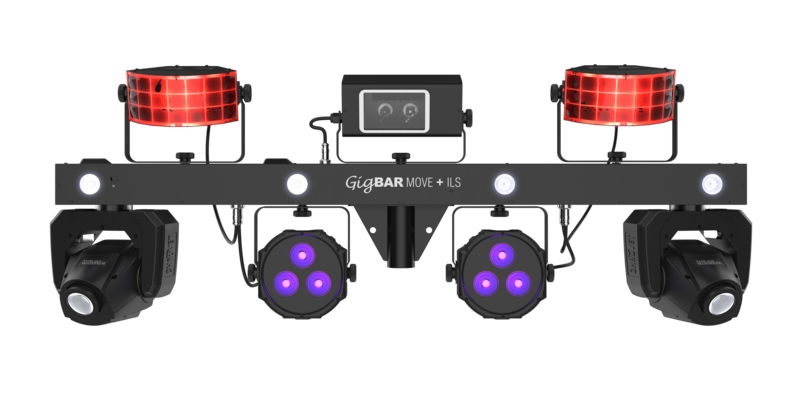

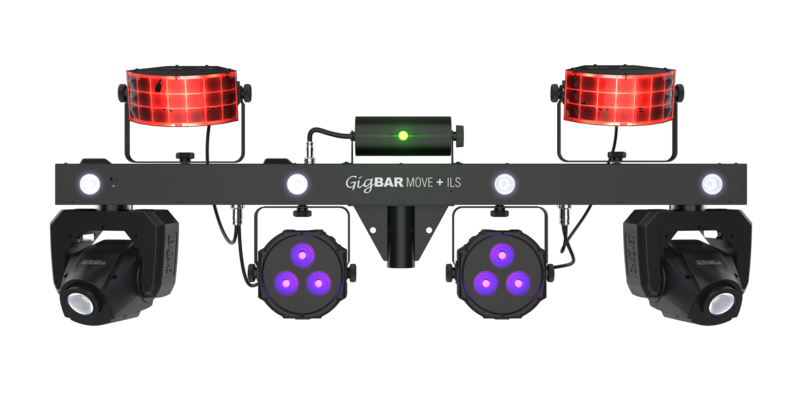

5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar
Product Features
- 5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar
- Integrated Lighting System (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types
- Separate color and gobo wheels allow for creative programming
- Totem Mode keeps the moving heads focused on the dance floor

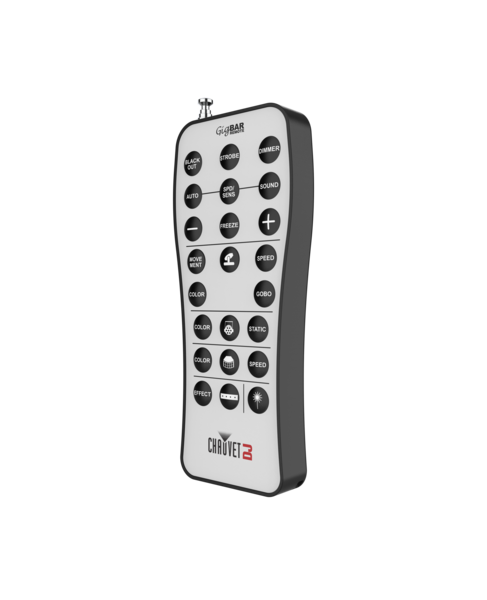

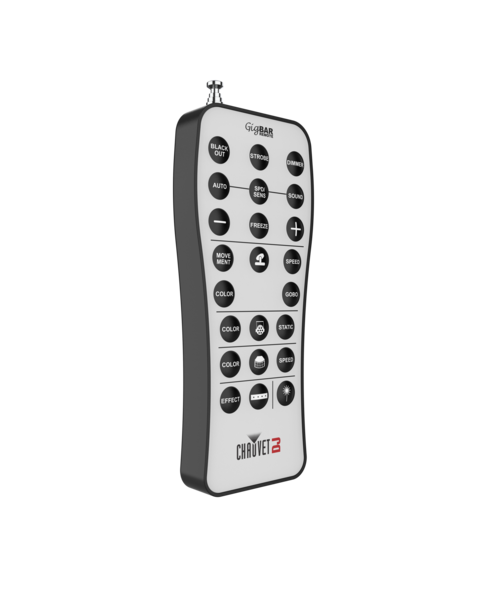

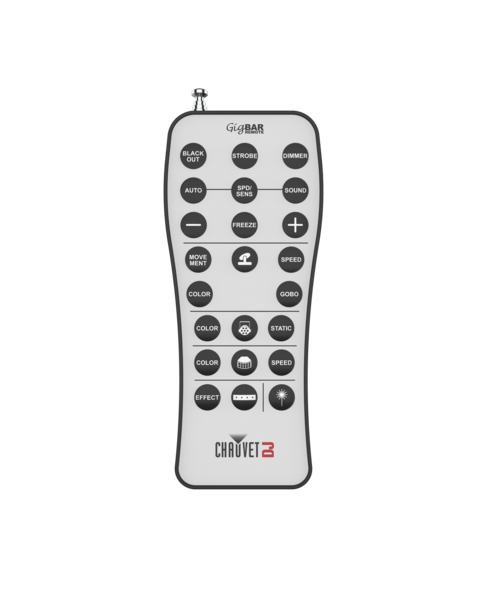

- System includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick setup
- Built-in UV LEDs illuminate florescent objects for dazzling blacklight effects
- Easy control via stand-alone, DMX, wireless RF remote or wireless footswitch
Specifications
DMX Channels
3, 28, or 50
Colors (moving head)
9 + open, split colors, continuous scroll
Gobos (moving head)
9 + open, continuous scroll
Light Source (pars)
3 LEDs (hex color RGBAW+UV) 6 W (2 A)
Light Source (strobe)
4 LEDs (cool white) 5 W (1.2 A)
Weight (bar only)
31 lbs (14 kg)
Light Source (derby)
8 LEDs (2 red, 2 green, 2 blue, 2 white)
Size
43 x 5.7 x 17.7 in (1100 x 144 x 449 mm) 6.5 W (2 A)
Light Source
(moving head) 1 LED (cool white) 32 W, (3 A)
Light Source
(Laser) 638 nm/30mW (red) laser diode, 520 nm/20 mW (green) laser diode, 450 nm/100 mW (blue) laser diode
Strobe Rate
0 to 30 Hz
Stand Height
4.8 ft to 8.3 ft (1.5 to 2.5 m)
Beam Angle (moving head)
17°
Beam Angle (pars)
22°
Beam Angle (strobe)
30°
Coverage Angle (derby)
131°
Coverage Angle (laser)
93°
Illuminance (pars)
1,205 lux @ 2 m (per par)
Illuminance (moving head)
5,140 lux @ 2 m (per head)
Illuminance (strobe)
130 lux @ 2 m
Footswitch Max Unobstructed Distance
100 ft (30.5 m)
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current
250 W, 3 A @ 120 V, 60 Hz
Optional Controllers
RF
Classified per 21 CFR 1040.10 & .11
Complies with US FDA CDRH laser safety standards 21 CFR 1040.10 & 1040.11
Approvals
CE, UKCA, RoHS, FCC, FDA
