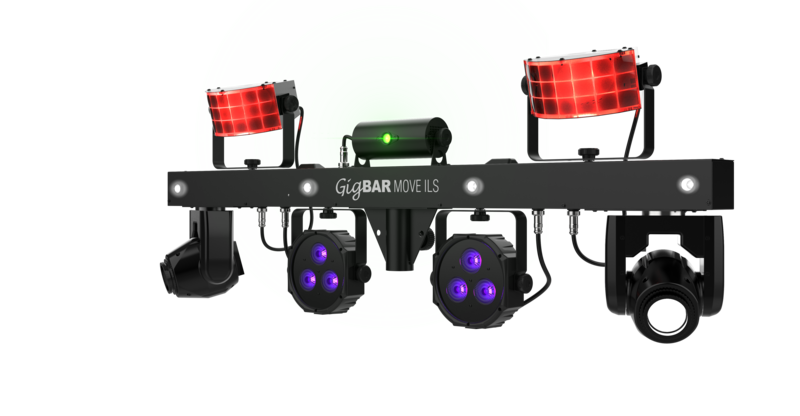

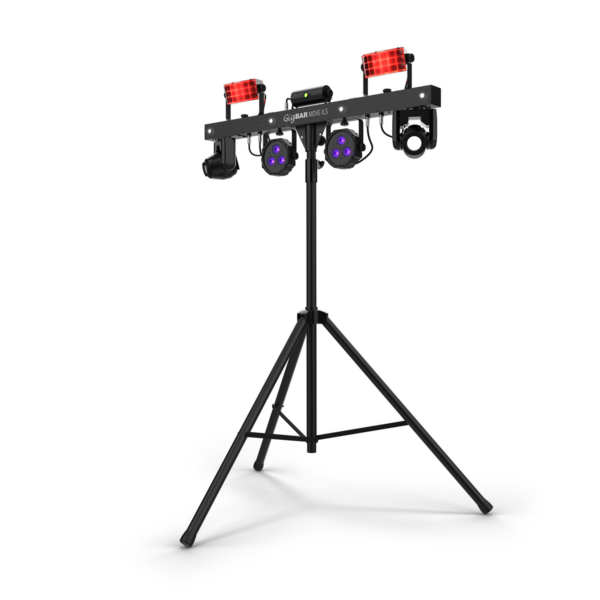

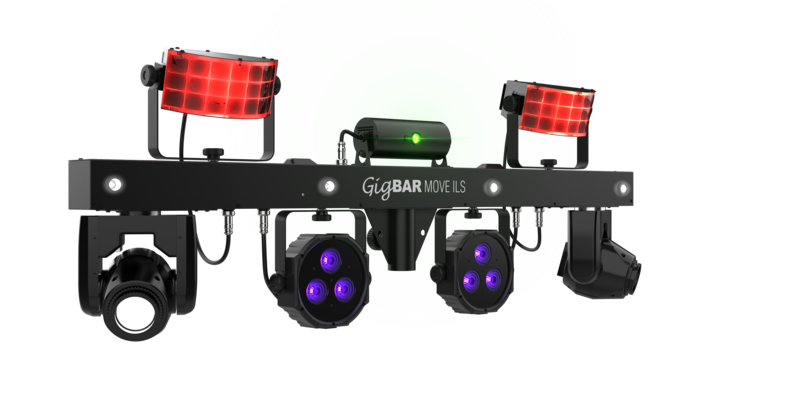

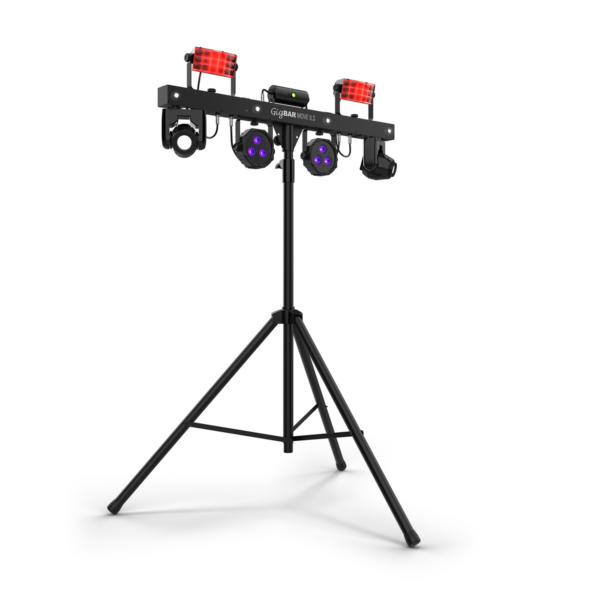

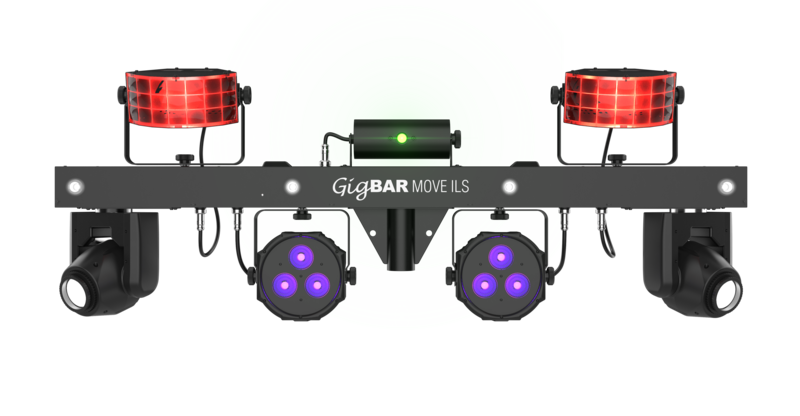

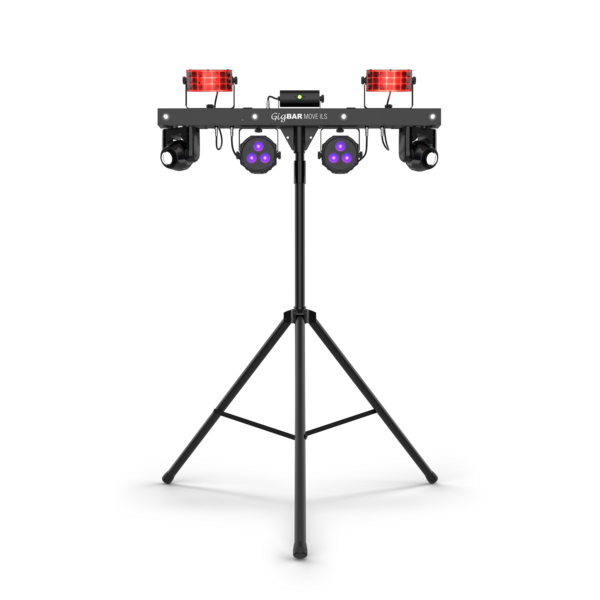

GigBAR Move ILS
5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar
Product Features
- 5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar
- Built-in D-Fi transceiver means complete Integrated Lighting System (ILS) compatibility including wireless control of other ILS products
- Separate color and gobo wheels in moving heads allow for creative programming
- Totem Mode keeps the moving heads focused on the dance floor
- System includes a tripod, wireless footswitch, RF remote and carry bags to ensure quick setup
- Built-in UV LEDs illuminate florescent objects and make them pop
- Individual control of each effect ensures your show looks the way you need it to
- Easy control via stand-alone, DMX, wireless RF remote or wireless footswitch
Specifications
DMX Channels
3, 27 or 46
DMX Connectors
3- pin XLR
Pan and Tilt
540°/180° • Weight: 23.4 lb (10.7 kg)
Colors (moving head)
7 + white, continuous scroll at variable speeds • Size: 43 x 5.7 x 17.7 in (1100 x 144 x 449 mm)
Gobos (moving head)
7 + open, continuous scroll at variable speeds • Included Controllers: RF remote, wireless footswitch
Light Source (pars)
3 LEDs (quad-color RGB+UV) 3.5 W (1 A)
Light Source (strobe)
4 LEDs (white & UV) 5 W (1 A)
Light Source (derby)
6 LEDs (2 red, 2 green, 2 blue) 5 W (1.6 A)
Light Source (moving head)
1 LED (cool white) 10 W (2.3 A)
Light Source (laser)
650nm/100 mW (red) laser diode, 532 nm/30 mW (green) laser diode
Strobe Rate (all effects)
0 to 20 Hz
Stand Height
4.8 ft to 8.3 ft (1.5 to 2.5 m)
Beam Angle (moving head)
11°
Beam Angle (pars)
19°
Beam Angle (strobe)
8°
Coverage Angle (derby)
131°
Coverage Angle (laser)
93°
Foot Switch Operating Frequency
433 MHz
Foot Switch Max Unobstructed Distance
100 ft (30.5 m)
Illuminance (pars)
1,205 lux @ 2 m (per par)
Illuminance (moving head)
1056 lux @ 2 m (per head)
Illuminance (strobe)
86 lux @ 2 m (per LED)
Power Linking
7 units @ 120 V; 12 units @ 230 V
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current
81 W, 1.1 A @ 120 V, 60 Hz
Power and Current
79 W, 0.6 A @ 230 V, 50 Hz
Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 56, dated May 8, 2019
Approvals
CE, RoHS, UKCA, FDA, FCC
