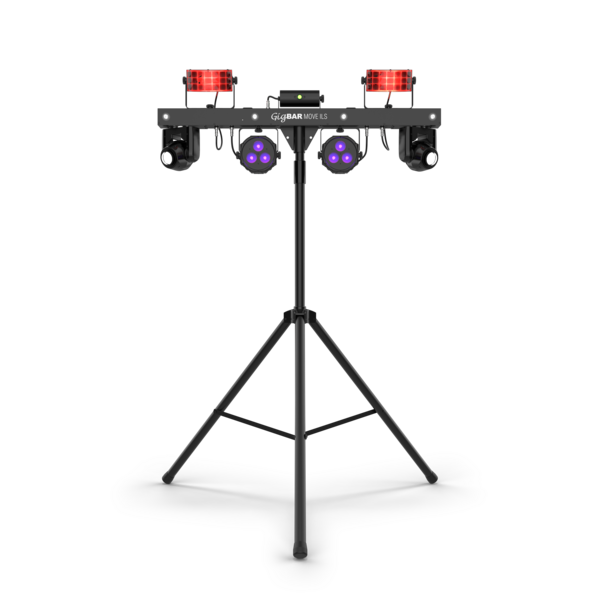

• 5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar
• Built-in D-Fi transceiver means complete Integrated Lighting System (ILS) compatibility including wireless control of other ILS products
• Separate color and gobo wheels in moving heads allow for creative programming
• Totem Mode keeps the moving heads focused on the dance floor
• System includes a tripod, wireless footswitch, RF remote and carry bags to ensure quick setup
• Built-in UV LEDs illuminate florescent objects and make them pop
• Individual control of each effect ensures your show looks the way you need it to
• Easy control via stand-alone, DMX, wireless RF remote or wireless footswitch

Specifications

• DMX Channels: 3, 27 or 46
• DMX Connectors: 3- pin XLR
• Pan and Tilt: 540°/180° • Weight: 23.4 lb (10.7 kg)
• Colors (moving head): 7 + white, continuous scroll at variable speeds • Size: 43 x 5.7 x 17.7 in (1100 x 144 x 449 mm)
• Gobos (moving head): 7 + open, continuous scroll at variable speeds • Included Controllers: RF remote, wireless footswitch
• Light Source (pars): 3 LEDs (quad-color RGB+UV) 3.5 W (1 A)
• Light Source (strobe): 4 LEDs (white & UV) 5 W (1 A)
• Light Source (derby): 6 LEDs (2 red, 2 green, 2 blue) 5 W (1.6 A)
• Light Source (moving head): 1 LED (cool white) 10 W (2.3 A)
• Light Source (laser): 650nm/100 mW (red) laser diode, 532 nm/30 mW (green) laser diode
• Strobe Rate (all effects): 0 to 20 Hz
• Stand Height: 4.8 ft to 8.3 ft (1.5 to 2.5 m)
• Beam Angle (moving head): 11°
• Beam Angle (pars): 19°
• Beam Angle (strobe): 8°
• Coverage Angle (derby): 131°
• Coverage Angle (laser): 93°
• Foot Switch Operating Frequency: 433 MHz
• Foot Switch Max Unobstructed Distance: 100 ft (30.5 m)
• Illuminance (pars): 1,205 lux @ 2 m (per par)
• Illuminance (moving head): 1056 lux @ 2 m (per head)
• Illuminance (strobe): 86 lux @ 2 m (per LED)
• Power Linking: 7 units @ 120 V; 12 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 81 W, 1.1 A @ 120 V, 60 Hz
• Power and Current: 79 W, 0.6 A @ 230 V, 50 Hz
• Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 56, dated May 8, 2019
• Approvals: CE, RoHS, UKCA, FDA, FCC
