GigBAR Bridge ILS

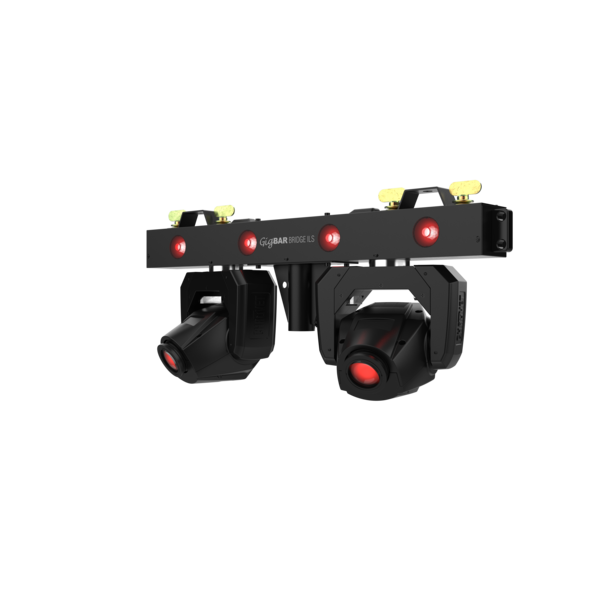

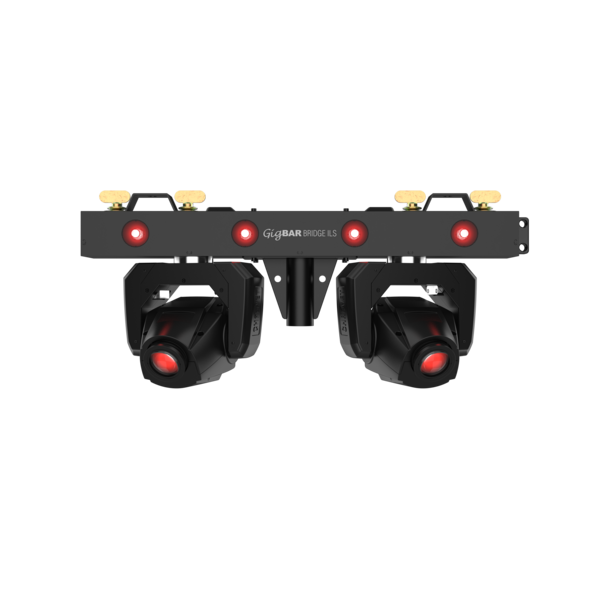

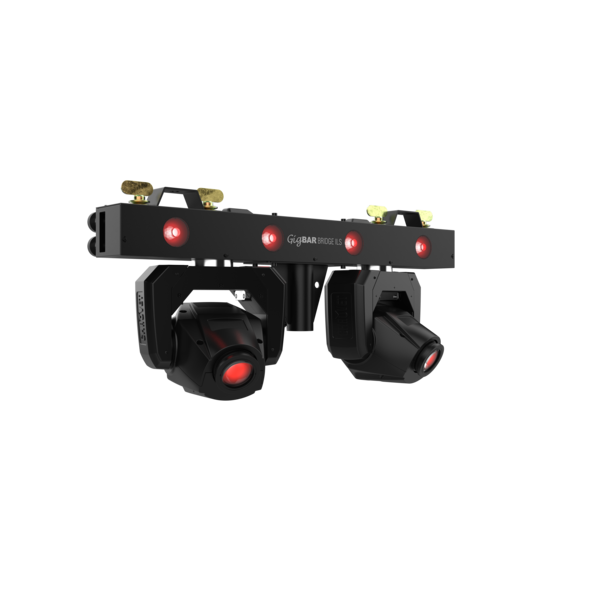

2-in-1 lighting system that includes moving heads and washes pre-mounted on a single bar
Product Features
- 2-in-1 lighting system that includes moving heads and washes pre-mounted on a single bar
- Quickly and securely connect multiple fixtures with the built-in locking system
- Built-in D-Fi transceiver communicates DMX or ILS signals wirelessly

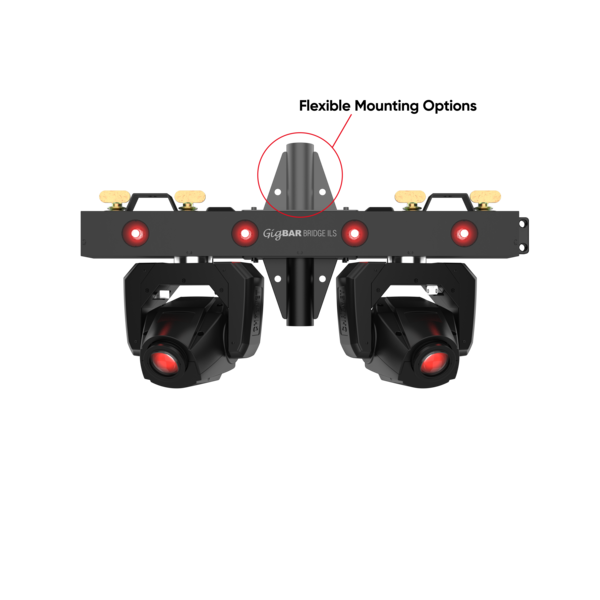

- Safely mounts onto truss or mobile tripods using the removable bracket
- Easy navigation and access all functions directly from the full-color LCD display
- Powerful moving heads with separate color and gobo wheels allow for creative programming
- Totem Mode keeps the moving heads focused on the dance floor

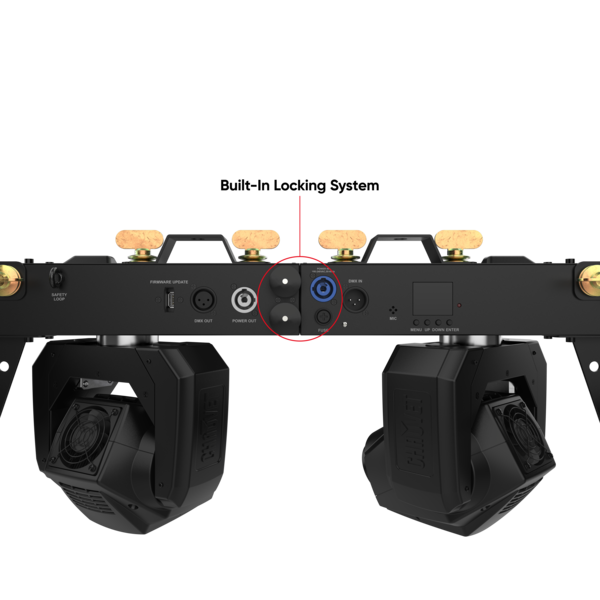

- Save time running cables and extension cords by power linking multiple units
- ILS compatibility for use in the ILS ecosystem
Specifications
Weight
18.6 lbs (8.4 kg)
Size
26 x 2.8 x 12 in (660 x 71 x 305 mm)
DMX Channels
3, 16 or 46 • Optional Controllers: RF, Footswitch, ILS Command
DMX Connectors
3-pin XLR
Pan and Tilt
270°/540°
Colors (moving head)
9 + open, split colors, continuous scroll at variable speeds
Gobos (moving head)
9 + open, continuous scroll at variable speeds
Light Source (moving head)
1 LED (cool white) 40W (3A), 50,000 hours life expectancy
Light Source (wash)
4 LEDs (hex-color RGBAW + UV) 10W (1.3 A), 50,000 hours life expectancy
Strobe Rate
0 to 20Hz
Operating Frequency
2.4 GHZ
Beam Angle (moving head)
16°
Beam Angle (wash)
22°
Field Angle (wash)
38°
Illuminance (moving head)
6,594 Lux @ 2 m (per head)
Illuminance (wash)
375 lux @ 2 m (per section)
Power Linking
8 units @ 120 V; 13 units @ 230 V
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current
191 W, 1.5 A @ 120 VAC, 60Hz
Power and Current
175 W, 1 A @ 230 VAC, 50Hz
Fits Tripod Sizes
1.5 in (37.4 mm)
Max Unobstructed Distance (D-Fi)
600 ft (183 m)
Approvals
CE, RoHS, FCC
