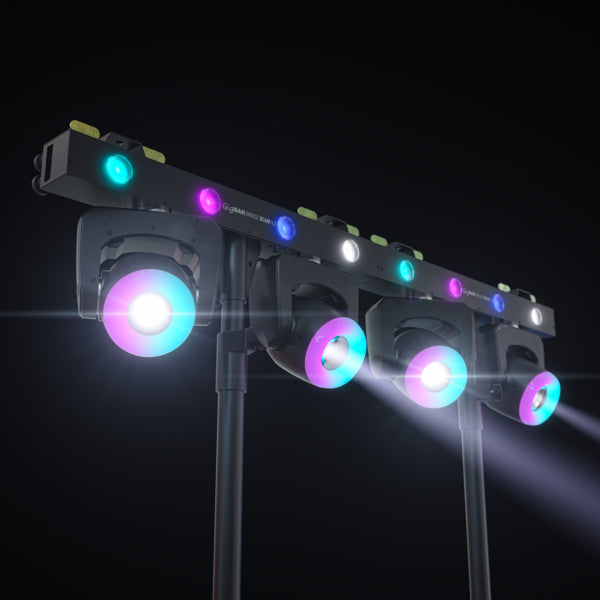

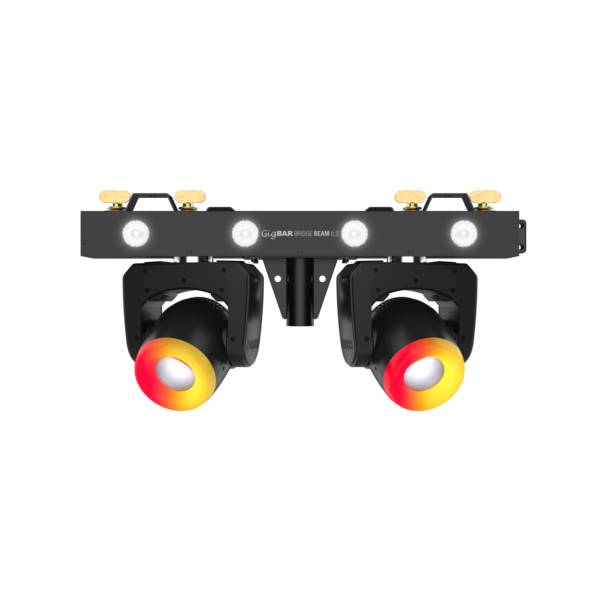

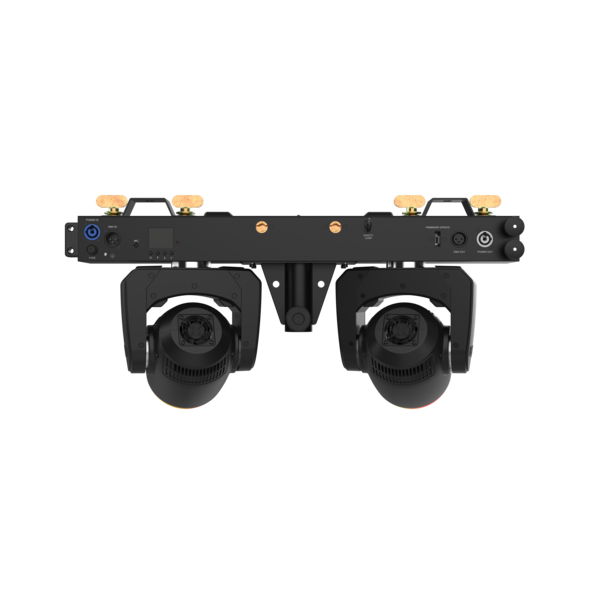

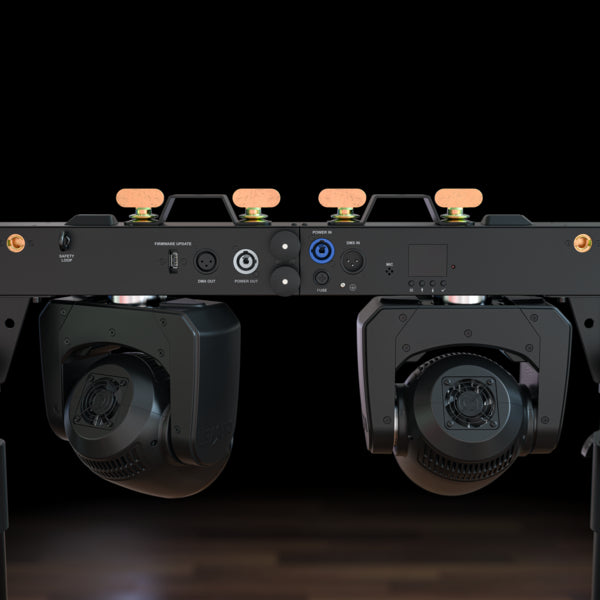

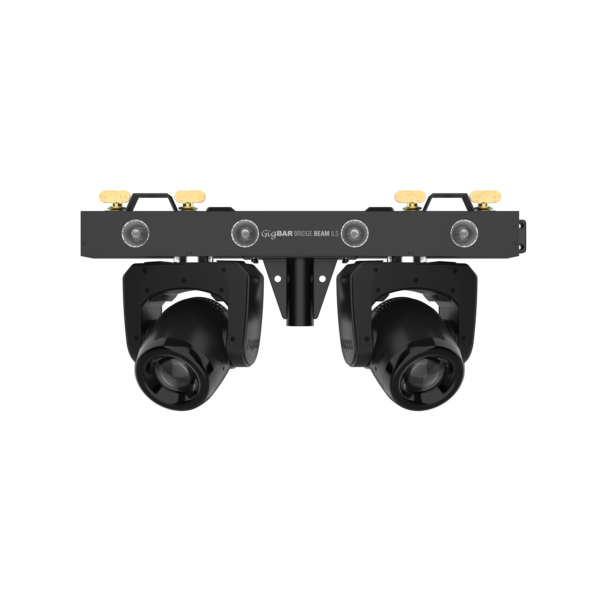

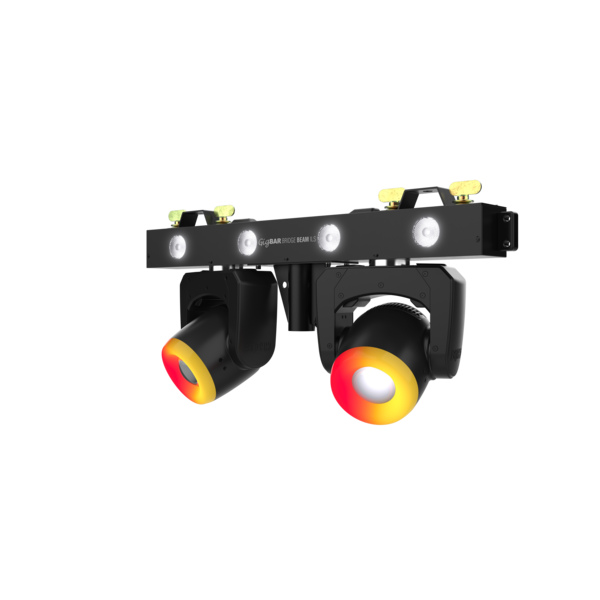

GigBAR Bridge Beam ILS
3-in-1 lighting system with moving heads, RGBW rings, and wash effects
Product Overview
GigBAR Bridge Beam ILS combines two powerful moving heads, four RGBAW+UV wash LEDs, and RGBW LED rings into one complete lighting system. Its modular locking design allows multiple fixtures to connect quickly and securely, making it ideal for mobile entertainers, DJs, event professionals, and performance venues.
Product Features
- 3-in-1 lighting system with moving heads, RGBW LED rings, and wash lights pre-mounted on a single bar.
- Built-in locking system allows multiple fixtures to connect quickly and securely.
- Built-in D-Fi transceiver communicates DMX or ILS signals wirelessly.
- ILS compatibility allows the fixture to operate within the Integrated Lighting System ecosystem.

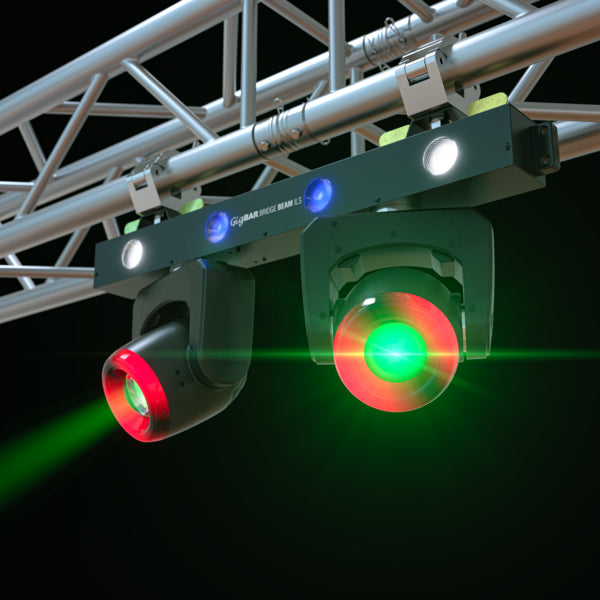

- Removable mounting bracket provides secure installation on truss systems or mobile tripods (Not Included)
- Full-color LCD display provides easy navigation and direct access to fixture functions.
- Totem Mode keeps the moving heads focused on the dance floor or performance area.
- Power linking reduces the number of cables and extension cords required for multiple fixtures.
- Included RF remote triggers built-in lighting shows without requiring direct line of sight.
Integrated Lighting Effects
Moving Heads Two RGBW moving heads with narrow 5-degree beam angles and motorized pan and tilt.
Wash Lights Four RGBAW+UV LEDs provide rich color mixing and wide-area wash coverage.
LED Rings Forty-eight RGBW LEDs create colorful ring effects around the moving-head lenses.
Control and Movement
DMX Channels 3, 24, or 60
DMX Connectors 3-pin XLR
Pan and Tilt 540° pan / 270° tilt
Selectable Pan Ranges 180°, 360°, or 540°
Selectable Tilt Ranges 90°, 180°, or 270°
Operating Frequency 2.4 GHz
Maximum D-Fi Distance 600 ft. (183 m), unobstructed
Optional Controllers RFC, RFC-XL, and ILS Command
Light Source Specifications
Moving-Head Light Source 2 RGBW LEDs, 80 W total, 2.8 A
Wash Light Source 4 RGBAW+UV LEDs, 40 W total, 2.6 A
LED Ring Light Source 48 RGBW LEDs, 10 W total
LED Life Expectancy 50,000 hours
Strobe Rate 0 to 20 Hz
PWM Frequency 1,200 Hz
Moving-Head Beam Angle 5°
Wash Beam Angle 20°
Wash Field Angle 37°
Moving-Head Illuminance 24,670 lux at 2 m, per head
Wash Illuminance 525 lux at 2 m, per section
Power Specifications
Input Voltage 100 to 240 VAC, 50/60 Hz, auto-ranging
Power and Current at 120 V 147 W, 1.2 A, 60 Hz
Power and Current at 230 V 144 W, 0.6 A, 50 Hz
Power Linking at 120 V Up to 9 units
Power Linking at 230 V Up to 18 units
Physical Specifications
Dimensions 25 x 2.6 x 11.4 in.
635 x 65 x 290 mm
635 x 65 x 290 mm
Weight 16.4 lb. (7.5 kg)
Compatible Tripod Diameter (NOT INCLUDED) 1.5 in. (37.4 mm)
Certifications and Approvals CE, RoHS, and FCC
