GigBAR 3 ILS

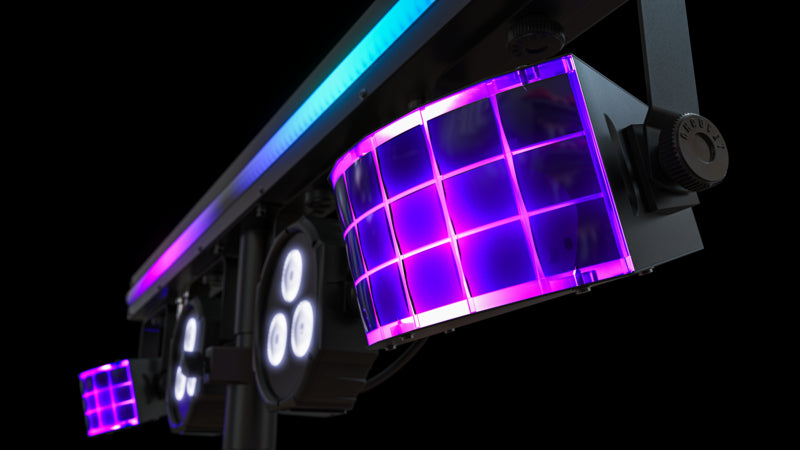

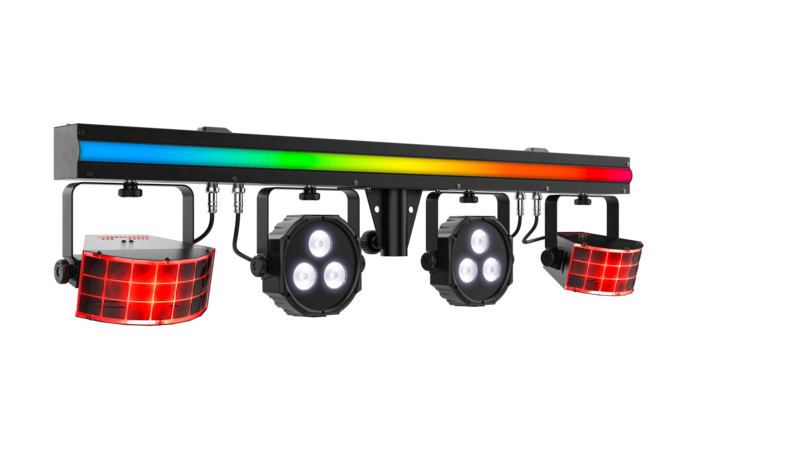

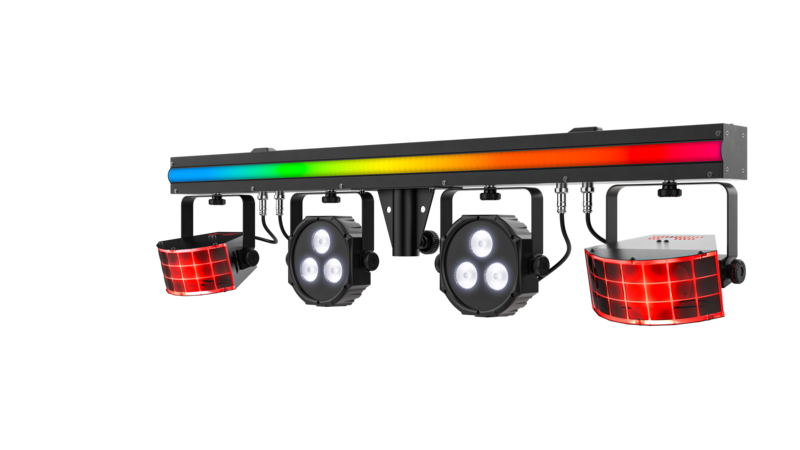

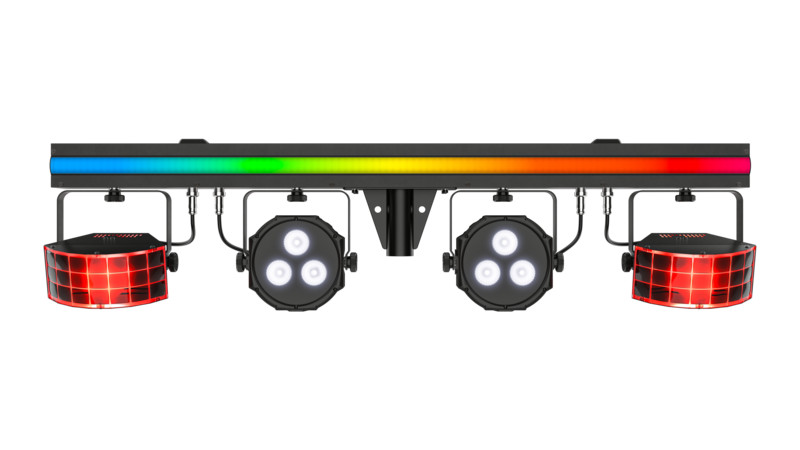

3-in-1 light that includes a pair of LED derbies, LED pars, and an LED strip, all mounted on one bar

Product Features

  • 3-in-1 light that includes a pair of LED derbies, LED pars, and an LED strip, all mounted on one bar
  • Built-in LED strip adds pizazz and eye-candy effects to mobile entertainment setups
  • ILS compatibility for use in the ILS ecosystem
  • Create the ultimate light show by mounting up to 4 additional fixtures to the top of the GigBar 3 ILS
  • Reversible tripod bracket allows for upside down mounting
  • Easy navigation and access all functions directly from the full- color LCD display
  • Get in and get out quickly with the included tripod, wireless footswitch, and FREE carry bags
  • Phenomenal, built-in, automated, and sound-activated programs that include all 3 effects to make one complete show
  • Easy control from the display, included RF Remote, wireless foot switch or DMX to take your gig to a higher level
  • Save time running cables and extension cords by power linking multiple units

Specifications

DMX Channels 2, 21, or 132
DMX Connectors 3-pin XLR
Light Source (pars) 6 LEDs (quad-color RGB + UV) 3.7 W 1A), 50,000 hours life expectancy
Light Source (LED Strip) 74 LEDs (red, green, blue) 5 W (.03 A), 50,000 hours life expectancy
Light Source (derby) 6 LEDs (2 red, 2 green, 2 blue) 3 W (.6 A), 50,000 hours life expectancy
Strobe Rate 0 to 20 Hz
Stand Height 4.8 ft to 7.8 ft (1.5 to 2.4 m)
Tripod leg width 3.9 ft (1.2 m)
Fits Tripod Size 1.5 in (37.4 mm)
Beam Angle (pars) 13°
Field Angle (pars) 24°
Coverage Angle (Derby) 114°
Coverage angle ( LED Strip ) 174°
Operating Frequency (D-Fi) 2.412 to 2.484 GHz
Cable Length 9 ft (2.844 m)
Foot Switch Operating Frequency 433 MHz
Foot Switch Max Unobstructed Distance 100 ft (30.5 m)
Footswitch battery 9V, 300mA
Illuminance (pars) 1,205 lux @ 2 m (per head)
Power Linking 11 units 120 V; 18 units 230 V
Input Voltage 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current 47 W, .7A 120 V, 60 Hz
Power and Current 45 W, .4 A 230 V, 50 Hz
Weight 13.2 lbs. (6 kg)
Size 41.2 x 3.7 x 10.7 in (1047 x 94.5 x 272 mm)
Optional Controllers ILS Command, RF Remote
Approvals CE, ROHS, FCC
