Freedom H1 IP ILS X4

Freedom H1 IP ILS X4

Freedom H1 IP ILS X4

$819.99

$819.99 $901.09

Freedom H1 IP ILS X4

Outdoor-rated, palm-sized wireless wash light kit

Product Features

Outdoor-rated, palm-sized wash light perfect for highlighting small subjects.
Sold as a complete kit with four fixtures, a multi-charger, and an RFC remote.
Robust housing repels Mother Nature for temporary outdoor situations.

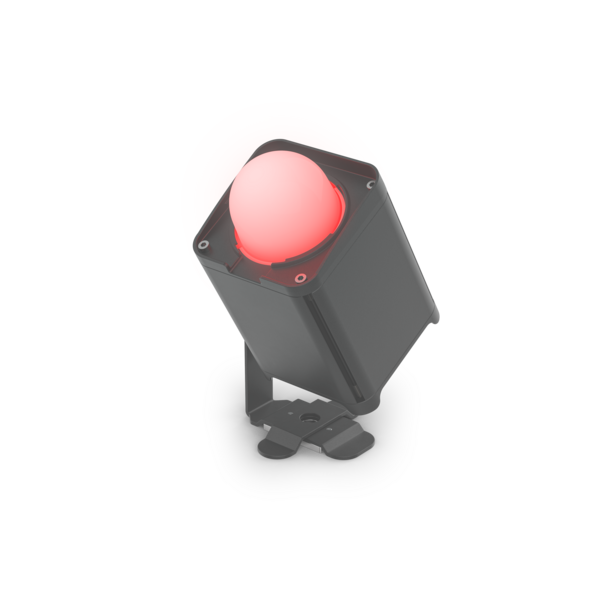

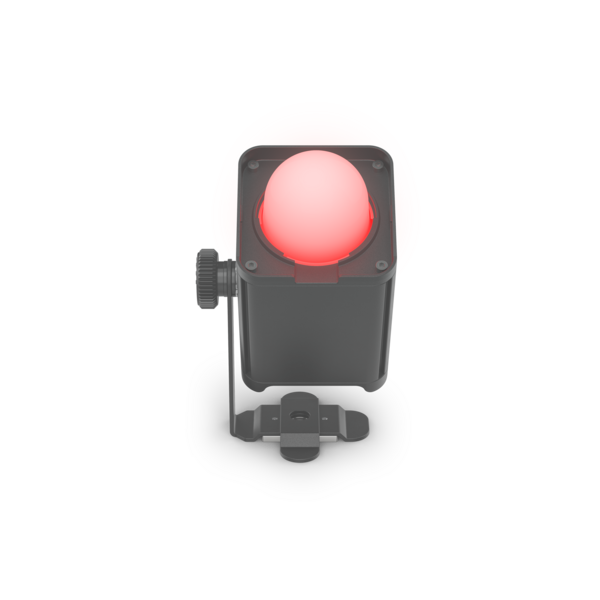

Accessory kit includes a round dome, square top, and white sleeves, sold separately.
OLED display allows for full-text and easily changeable fixture settings.
Built-in RF receiver provides wireless control using the RFC or optional RFC-XL remote.
Built-in D-Fi transceiver wirelessly communicates with other D-Fi-enabled devices.
Magnetic base makes it easy to mount the fixture to most metal surfaces.

Kit Includes

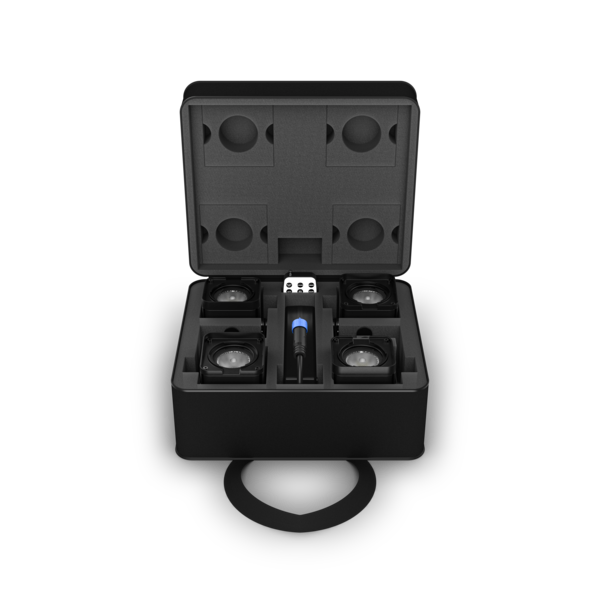

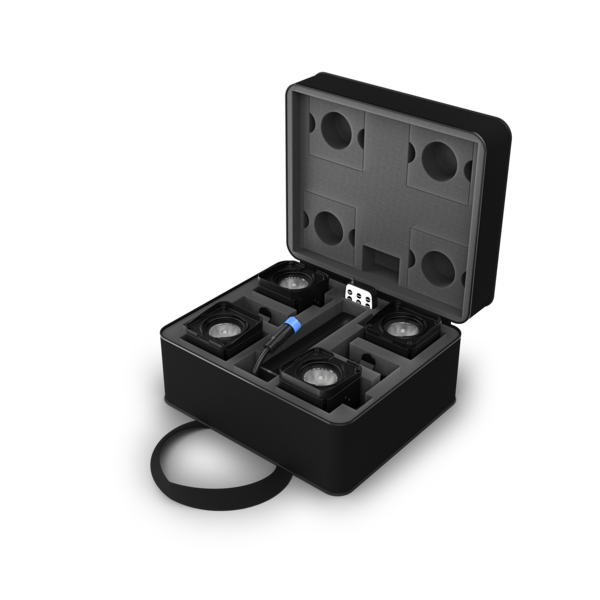

4 Freedom H1 IP ILS Fixtures Multi-Charger RFC Remote

Specifications

DMX Channels 6, 8, or 12

Light Source 1 hex-color RGBAW+UV LED

LED Power 10 W, 3 A

Life Expectancy 50,000 hours

Strobe Rate 0 to 20 Hz

Beam Angle 23°

Field Angle 44°

Operating Frequency 2.412 to 2.484 GHz

Illuminance 168 lux at 2 m

Lumens 137

Maximum Run Time, All On Up to 8 hours

Maximum Run Time, Single Color Up to 20 hours

Recharge Time 6 hours

IP Rating IP54

Startup Temperature -4°F to 113°F
(-20°C to 45°C)

Operating Temperature -22°F to 113°F
(-30°C to 45°C)

Maximum Unobstructed Distance 600 ft. (183 m)

Input Voltage 5 VDC, 10 A
External power supply

Power and Current, 120 V 13 W, 0.3 A, 60 Hz

Power and Current, 230 V 13 W, 0.2 A, 50 Hz

Bracket Mounting Hole M12

Fixture Weight 1.6 lb. (0.7 kg)

Pack Weight 8.4 lb. (3.81 kg)

Fixture Dimensions 3 x 3 x 4.2 in.
75 x 75 x 107 mm

Pack Dimensions 12.4 x 10.6 x 6.7 in.
31.5 x 27.5 x 17 cm

Optional Controllers: RFC, RFC-XL, and FREEDOM Connect

Approvals: CE, RoHS, and FCC

Round dome, square top, and white sleeve accessories are sold separately.
