Core 5X1 ILS
Multi-purpose effect light functions as a pixel-mapping effect, chase effect, blinder, or wash light
Product Features
- Multi-purpose effect light functions as a pixel-mapping effect, chase effect, blinder, or wash light

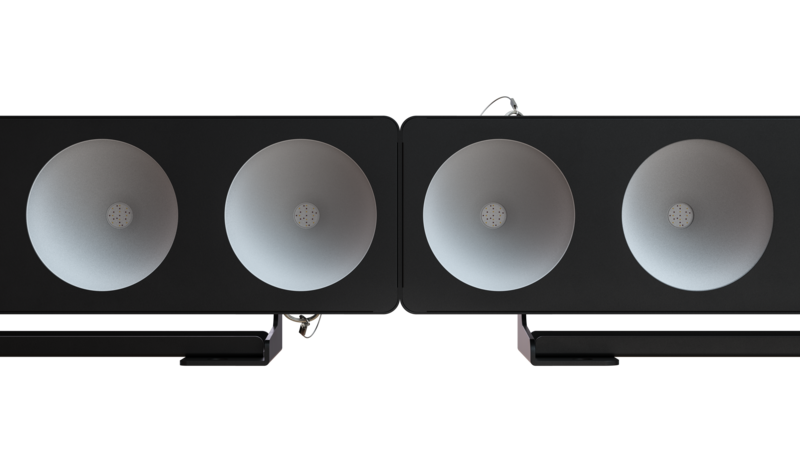

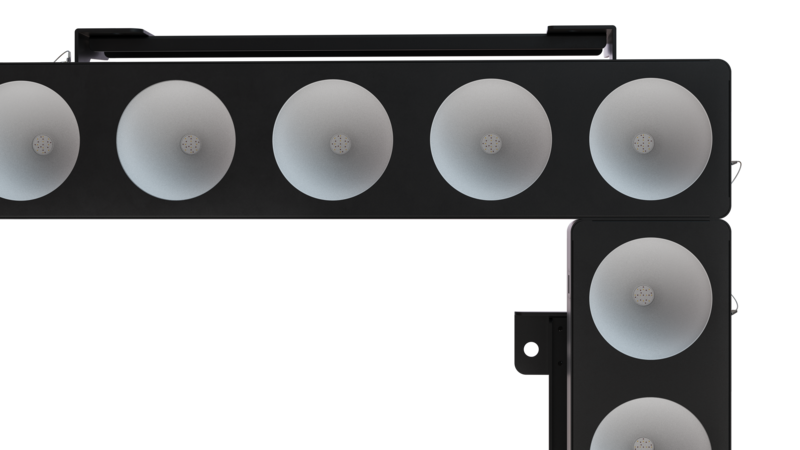

- Attach multiple fixtures together using the built-in, toolless connecting hardware
- ILS compatibility for use in the ILS ecosystem (D-Fi™ USB sold separately)
- Generates a broad spectrum of colors and achieves natural-looking color temperatures with COB technology
- Withstand the harshness of traveling from gig to gig with a robust housing
- Offers multiple control options, including stand-alone, DMX, ILS, RF, or master/slave
Specifications
DMX Channels
4, 8, or 22
DMX Connectors
3- and 5-pin XLR
Light Source
5 LEDs (quad-color RGB+WW) 35W, (1.2A) 50,000 hours life expectancy
Strobe Rate
0 to 20 Hz
Beam Angle
54°
Field Angle
75°
Illuminance
953 lux @ 2 m
Lumens
2,875
Cable Length
5 ft (1.52 m)
Power Linking
6 units @ 120 V; 10 units @ 230 V
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current
120 W, 1.8 A @ 120 V, 60 Hz
Power and Current
113 W, 1.1 A @ 230 V, 50 Hz
Bracket Mounting Hole
13 mm
Weight
11 lbs (5 kg)
Size
23.6 x 3.1 x 4.7 in (600 x 79 x 120 mm)
Optional Controllers
ILS Command, RFC, RFC-XL
Approvals
CE, RoHS
