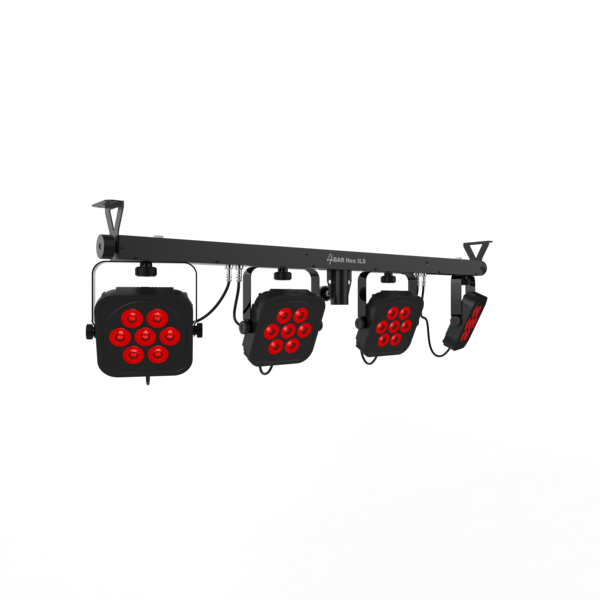

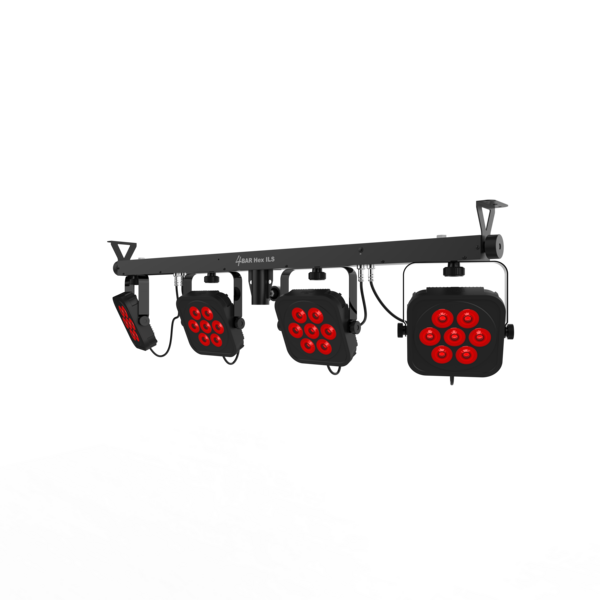

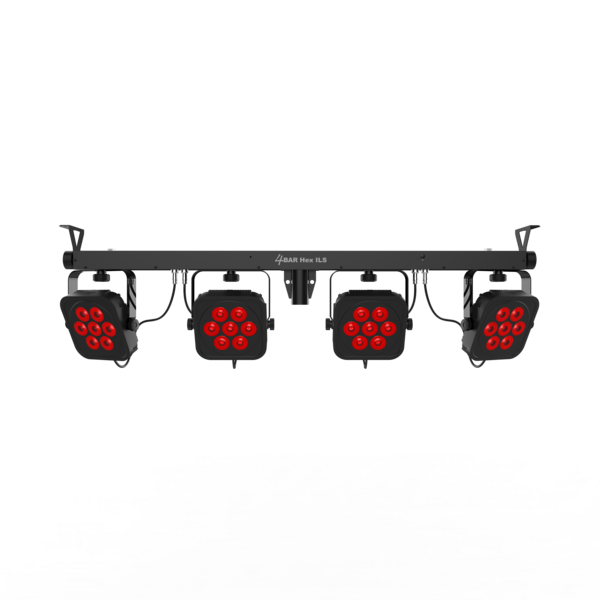

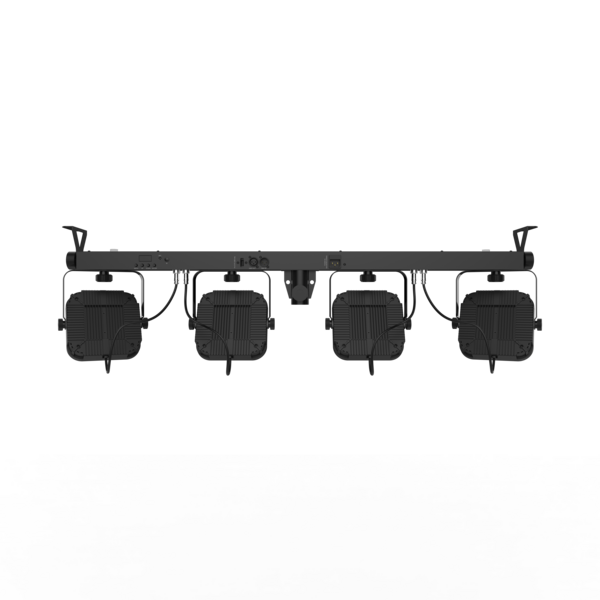

4BAR Hex ILS
Complete wash lighting solution fitted with high-intensity, hex-color (RGBAW+UV) LEDs
Product Features
- Complete wash lighting solution fitted with high-intensity, hex-color (RGBAW+UV) LEDs
- ILS compatibility for use in the ILS ecosystem
- D-Fi USB compatibility for wireless Master/Slave or DMX control
- Generate a broad spectrum of colors and achieve natural-looking color temperatures with 6-in-1 LED technology
- Update the unit’s software from the built-in USB port
- Out of the box wireless control with included footswitch or optional IRC-6 controller

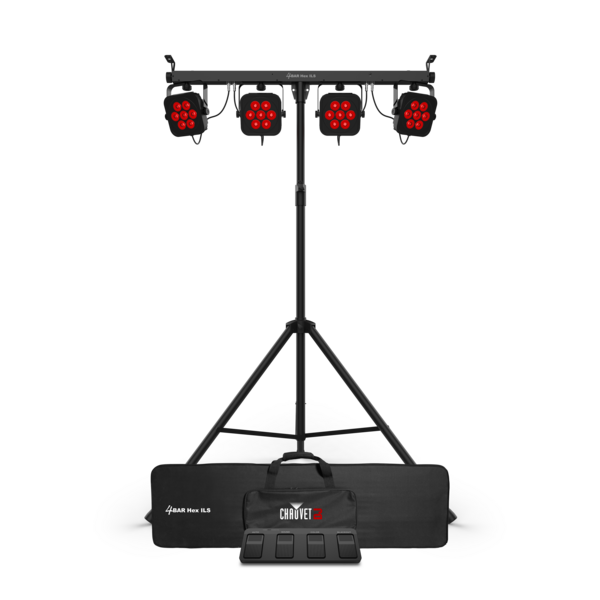

- Easily set up and tear down in minutes with the included tripod stand and carrying bags
- Achieve total room or stage coverage with 4 individually adjustable heads
- Increase mounting options by safely mounting to truss using built-in bolts
Specifications
DMX Channels
6, 8, or 27
DMX Connectors
3-pin XLR
Light Source
42 LEDs (hex color RGBAW+UV) 5.1 W, (2 A), 50,000 hours life expectancy
Strobe Rate
0 to 20 Hz
Beam Angle
16°
Field Angle
25°
Illuminance
1570 lux @ 2 m (per pod)
Operating Frequency (D-Fi)
2.412 to 2.484 GHz
Operating Frequency (foot switch)
433 MHz
Max Unobstructed Distance (foot switch)
100 ft (30.5 m)
Footswitch battery
9 V
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current
97 W, 1.3 A @ 120 V, 60 Hz
Power and Current
94 W, 0.7 A @ 230 V, 50 Hz
Stand Height
7 ft 4 in (2.2 m)
Fits Tripod Sizes
1.5 in (36.80 mm)
Bracket Mounting Hole
M10 (1.5 mm pitch)
Weight
12.2 lb (5.5 kg)
Weight (Controller)
1.2 lb (0.6 kg)
Size
45.7 x 2 x 12 in (1186 x 50.8 x 305 mm)
Size (Controller)
16.5 x 5.2 x 1.5 in (419 x 132 x 38 mm)
Optional Controllers
IRC-6, ILS Command
Approvals
CE, RoHS, UKCA
