4BAR Flex Q ILS

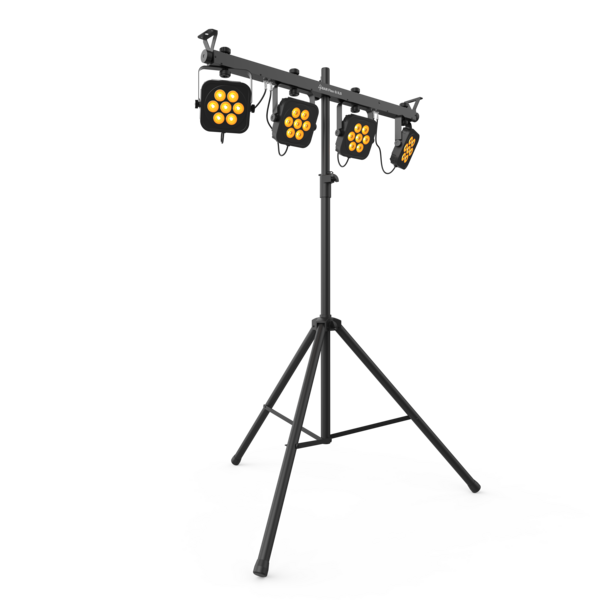

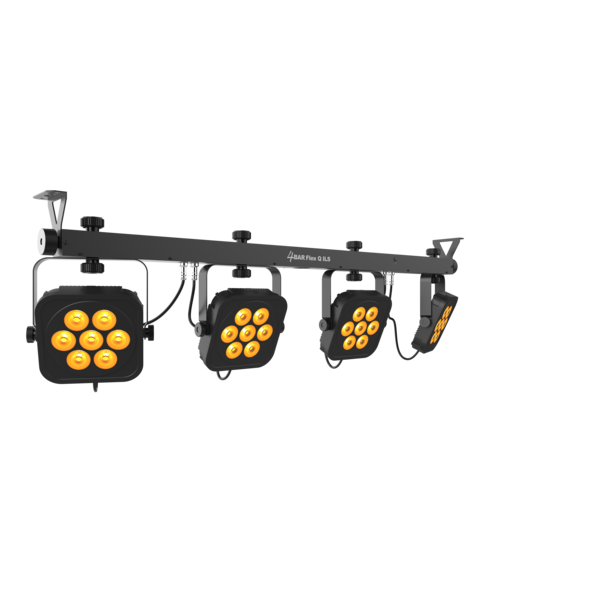

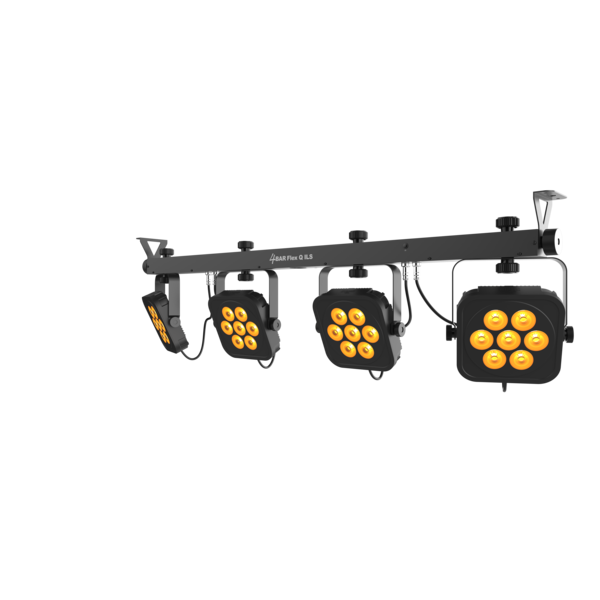

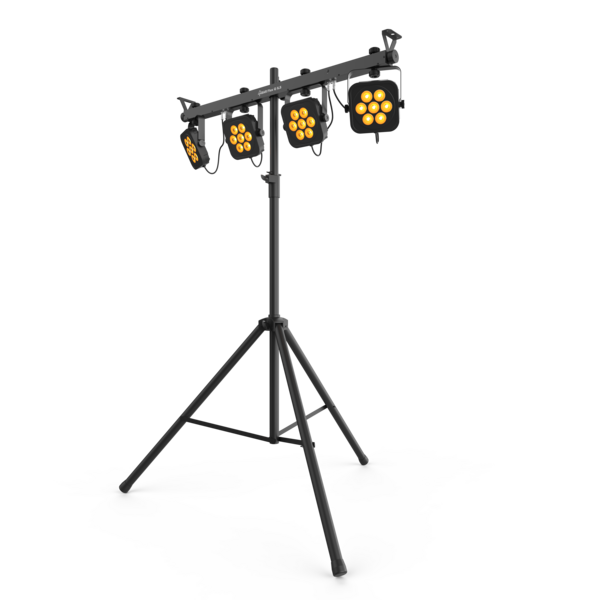

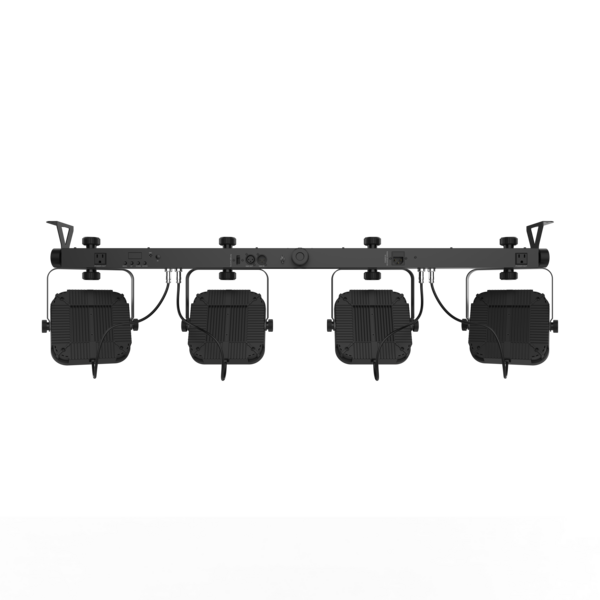

Complete wash lighting solution fitted with high-intensity, quad-color (RGBA) LEDs
Product Features
- Complete wash lighting solution fitted with high-intensity, quad-color (RGBA) LEDs
- ILS compatibility for use in the ILS ecosystem
- Mounts to most tripods or speaker stands, without the need for additional clamps, using the pass-through hole
- Generate a broad spectrum of colors and achieve natural- looking color temperatures with punchy amber LEDs
- D-Fi™ USB compatibility for wireless master/slave or DMX control
- Create the ultimate light show by mounting up to 4 additional fixtures to the top of the 4Bar Flex Q
- Provide electricity to the additional lights by using the built-in Edison plugs
- Maximize setup possibilities and configurations with 2 included L-brackets
- Easily set up and tear down in minutes with the included carrying bag
- Multiple control options include standalone, DMX mode, wireless footswitch or the IRC-6 remote
- Safely mounts to truss using built-in bolts
Specifications
DMX Channels
4, 6 or 19
DMX Connectors
3-pin XLR
Light Source
28 LEDs (quad-color RGBA) 3.5 W, (1.3 A), 50,000 hours life expectancy
Strobe Rate
0 to 20 Hz
Beam Angle
14°
Field Angle
23°
Illuminance
2,353 lux @ 2 m (per pod)
Operating Frequency (D-Fi)
2.412 to 2.484 GHz
Operating Frequency (foot switch)
433 MHz
Max Unobstructed Distance (foot switch)
100 ft (30.5 m)
Footswitch battery
9 V
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current
80 W, 1.2 A @ 120 V, 60 Hz
Power and Current
78 W, 0.6 A @ 230 V, 50 Hz
Fits Tripod Sizes
1.5 in (36.80 mm)
Bracket Mounting Hole
M10 (1.5 mm pitch)
Weight
12.2 lb (5.5 kg)
Weight (Controller)
1.2 lb (0.6 kg)
Size
45.7 x 2 x 12 in (1186 x 50.8 x 305 mm)
Size (Controller)
16.5 x 5.2 x 1.5 in (419 x 132 x 38 mm)
Included controller
IRC-6
Optional controller
D-Fi USB
Approvals
CE, RoHS, UKCA
