Electro Voice ZX560B 600W 15" 2-Way Loudspeaker, Bi-Amp Or Passive, 60 X 60 Horn, Integral Stand Mo

Electro Voice ZX560B 600W 15" 2-Way Loudspeaker, Bi-Amp Or Passive, 60 X 60 Horn, Integral Stand Mo

$1,624.00 $1,199.00

Features: The Electro-Voice Zx5-60 is a 2-way P.A. suspension loudspeaker with a 600-watt continuous power handling capacity and a 60°¸ x 60°¸ coverage angle, for long-throw and cluster applications. The high-tech, high-impact polypropylene enclosure houses a 15" woofer and a 1" Neodymium compression driver with a large 2" voice-coil. The...

Qty:
Features:

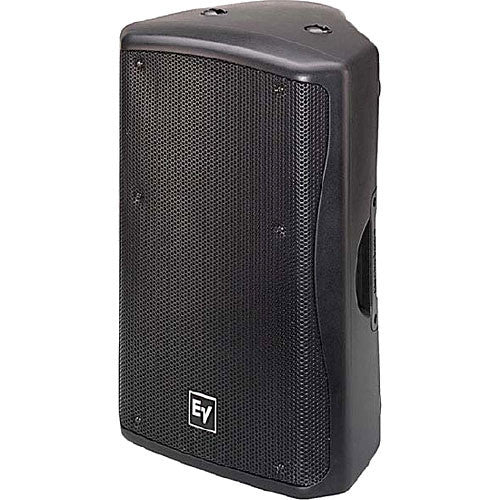

The Electro-Voice Zx5-60 is a 2-way P.A. suspension loudspeaker with a 600-watt continuous power handling capacity and a 60°¸ x 60°¸ coverage angle, for long-throw and cluster applications. The high-tech, high-impact polypropylene enclosure houses a 15" woofer and a 1" Neodymium compression driver with a large 2" voice-coil. The Zx5-60 cabinet is equipped with 10 integral suspension points for permanent suspension or bracketing, and 3 Anchor Plates for single-stud fittings, with an additional pair of Aunchor Plate attachment points on the bottom of the speaker.

Features:

  • 2-way 600-watt suspension P.A. speaker for log-throw and cluster applications
  • High output, 132dB SPL capacity
  • Adjustable feet allow 45°¸ or 55°¸ speaker placement angle for use as stage monitor
  • 15" forced-air-cooled woofer, 1" titanium diaphragm compression driver with 2" voice coil
  • 60°¸ x 60°¸ coverage angle, for long-throw and cluster applications
  • Rugged, high-tech polypropylene enclosure
  • 3 suspension Anchor Plates, 10 M8 insert suspension points
    • Specifications:
  • Active or Passive: Passive
  • Frequency Response: 58 Hz - 18 kHz
  • Power Capacity: 600 Watts continuous
  • 2400 Watts peak
  • Maximum Sound Pressure Level (SPL): 132dB
  • Nominal Sensitivity: 98dB, 1W/1m
  • Impedance: 8 Ohms
  • Crossover: 1.5kHz
  • Low Frequency Driver: 15" driver with forced-air cooling
  • High Frequency Driver: 1" titanium Neodymium compression driver with 2" voice coil
  • Enclosure Material: Polypropylene structural foam, powder-coated galavanized steel grille
  • Input Connections: Neutrik Speakon NL4
  • Dimensions: 27.3 x 17.6 x 16.1" (692 x 446 x 411mm)
  • Weight: 49 Lbs. (22.2 kg)


    • Model: ZX560B
    Manufacturer: Electro Voice
