Electro Voice ZX390W 600W 12" 2-Way Loudspeaker, Bi-Amp Or Passive, 90

Electro Voice ZX390W 600W 12" 2-Way Loudspeaker, Bi-Amp Or Passive, 90 X 50 Horn, Integral Stand Mo

$1,525.00 $1,099.00

Features: The Electro-Voice ZX3-90W is a 2-way P.A. passive loudspeaker with a 600-watt continuous power handling capacity and a 90x50°¸ coverage angle, for wider coverage or shorter distances. The high-tech, high-impact polypropylene enclosure houses a 12" woofer and a 1" Neodymium compression driver with a large 2" voice-coil. The ZX3-90W...

Product Description

Features:

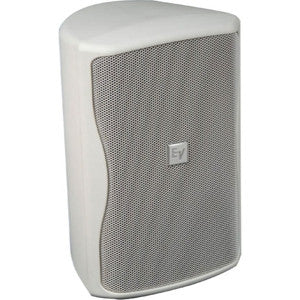

The Electro-Voice ZX3-90W is a 2-way P.A. passive loudspeaker with a 600-watt continuous power handling capacity and a 90x50°¸ coverage angle, for wider coverage or shorter distances. The high-tech, high-impact polypropylene enclosure houses a 12" woofer and a 1" Neodymium compression driver with a large 2" voice-coil. The ZX3-90W cabinet is equipped with 10 integral suspension points for permanent suspension or bracketing, and 3 Anchor Plates for single-stud fittings, with an additional pair of Anchor Plate attachment points on the bottom of the speaker.

Features:

2-way 600-watt suspension P.A. speaker with 90x50°¸ coverage for wider coverage or shorter distances

High output, 131dB SPL capacity

Adjustable feet allow 45°¸ or 55°¸ speaker placement angle for use as stage monitor

12" forced-air-cooled woofer, 1" titanium diaphragm compression driver with 2" voice coil

Rugged, high-tech polypropylene enclosure

3 suspension Anchor Plates, 10 M8 insert suspension points

Specifications:

Active or Passive: Passive

Frequency Response: -10dB:48-20,000Hz

Power Capacity: 600W

Maximum Sound Pressure Level (SPL): 131dB

Nominal Sensitivity: 97dB

Impedance: 8 ohms

Crossover: 2KHz

Low Frequency Driver: DVX3121, 12" (305mm) Driver

High Frequency Driver: ND2, 1" (25.4mm) exit Neodymium

Enclosure Material: Polypropylene Structural Foam

Input Connections: Neutrik Speakon NL4's x 2

Mounting Options: Enclosure has locations for 4 Single-StudAttachment Plates and 10 Forged SteelEyebolts - 2 on Top, 2 on Bottom, 2 onSide, and 1 on Rear of Enclosure

Dimensions: 24.14 x 15.64 x 14.26" (613 x 397 x 362mm)

Weight: 43.7 Lbs. (19.8kg)

Model:	ZX390W
Manufacturer:	Electro Voice
