Home / Speakers / Electro Voice TX1152 500 Watts, 15" 2-Way, Passive, 60° X 40° Horn Pattern, All-New Smx2151 Woofer

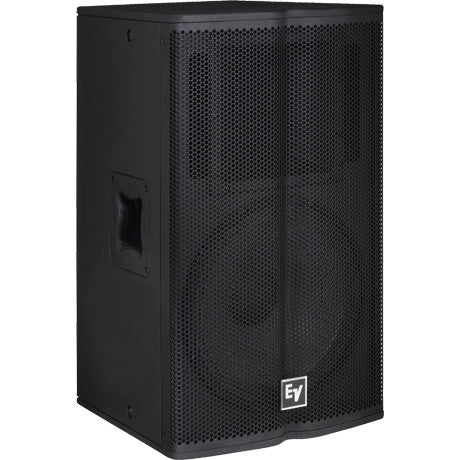

Electro Voice TX1152 500 Watts, 15" 2-Way, Passive, 60° X 40° Horn Pattern, All-New Smx2151 Woofer

Electro Voice TX1152 500 Watts, 15" 2-Way, Passive, 60° X 40° Horn Pattern, All-New Smx2151 Woofer

$1,280.00 $1,049.00

Features: 15-inch two-way full-range loudspeaker Features: High-output, high-quality sound Excellent pattern control for medium throw use Low-distortion SMX2151 woofer with fully symmetric drive 1.25-inch DH3/2010A titanium HF compression driver Rotatable Constant-directivity 60° x 40° horn Advanced 4th-order crossover with HF protection 100 dB sensitivity, 133 dB maximum SPL Power handling:...

Qty:
Features:

15-inch two-way full-range loudspeaker

Features:

  • High-output, high-quality sound
  • Excellent pattern control for medium throw use
  • Low-distortion SMX2151 woofer with fully symmetric drive
  • 1.25-inch DH3/2010A titanium HF compression driver
  • Rotatable Constant-directivity 60° x 40° horn
  • Advanced 4th-order crossover with HF protection
  • 100 dB sensitivity, 133 dB maximum SPL
  • Power handling: 500 W continuous, 2000 W peak
  • Lightweight trapezoidal plywood/MDF enclosure
  • Pole mount for use with subwoofer or stand
  • Six 3/8-inch threaded suspension points
  • Black EVCoatTM finish
    • Specifications:
  • Color: Black
  • Input Connections: Parallel Neutrik NL4
  • Speaker Type: Full-range
  • Frequency Response (-3 dB): 65 - 20000 Hz
  • Frequency Response (-10 dB): 45 - 20000 Hz
  • Internal Crossover: Yes
  • Recommended High-Pass Frequency: 40 Hz
  • Sensitivity 1 W/1 m: 100 dB
  • Max. SPL/1m (calc): 133 dB
  • Coverage (Nominal -6 dB) H: 60 °
  • Coverage (Nominal -6 dB) V: 40 °
  • Rotatable Horn: Yes
  • System Power Handling (Continuous/Program/Peak): 500//2000 Watts
  • LF Transducer: 15-inch SMX2151
  • HF Transducer: 1.25-inch DH3/2010A
  • Crossover Frequency: 1750 Hz
  • Nominal Impedance (Passive): 8 O
  • Minimum Impedance: 6.2 O
  • Enclosure Material: Plywood and MDF with EVCOAT
  • Flying: Yes
  • Suspension: (6) 3/8-inch threaded inserts
  • Height: 18.7" (475 mm)
  • Width: 17.28" (439 mm)
  • Depth: 25.79" (655 mm)
  • Weight Net: 27.6 kg (60.85 Lbs.)


    • Model: TX1152
    Manufacturer: Electro Voice
