Home / Speakers / Electro Voice TX1122 500 Watts, 12" 2-Way, Passive, 90° X 50° Horn Pattern, All-New Smx2120 Woofer

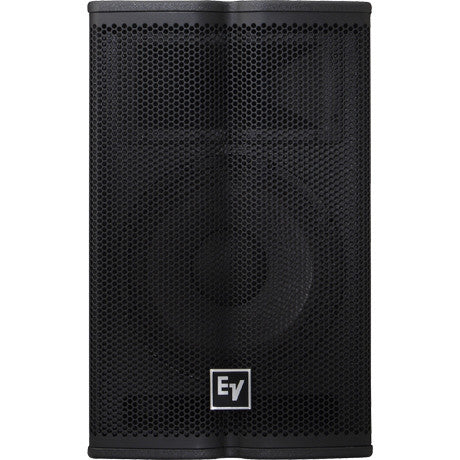

Electro Voice TX1122 500 Watts, 12" 2-Way, Passive, 90° X 50° Horn Pattern, All-New Smx2120 Woofer

Electro Voice TX1122 500 Watts, 12" 2-Way, Passive, 90° X 50° Horn Pattern, All-New Smx2120 Woofer

$1,280.00 $949.00

Features: 12-inch two-way full-range loudspeaker Features: High-quality sound at high levels Excellent pattern control for short-to-medium throw Low-distortion SMX2120 woofer with fully symmetric drive 1.25-inch DH3/2010A titanium HF compression driver Constant-directivity 90° H x 50° V horn Advanced 4th-order crossover with HF protection 97 dB sensitivity, 130 dB maximum SPL...

Qty:
Features:

12-inch two-way full-range loudspeaker

Features:

  • High-quality sound at high levels
  • Excellent pattern control for short-to-medium throw
  • Low-distortion SMX2120 woofer with fully symmetric drive
  • 1.25-inch DH3/2010A titanium HF compression driver
  • Constant-directivity 90° H x 50° V horn
  • Advanced 4th-order crossover with HF protection
  • 97 dB sensitivity, 130 dB maximum SPL
  • Power handling: 500 W continuous, 2000 W peak
  • Lightweight trapezoidal plywood/MDF enclosure
  • Pole mount for use with subwoofer or stand
  • Six 3/8-inch threaded suspension points
  • Black EVCoatTM finish
    • Specifications:
  • Color: Black
  • Input Connections: Parallel Neutrik NL4
  • Speaker Type: Full-range
  • Frequency Response (-3 dB): 70 - 20000 Hz
  • Frequency Response (-10 dB): 45 - 20000 Hz
  • Internal Crossover: Yes
  • Recommended High-Pass Frequency: 45 Hz
  • Sensitivity 1 W/1 m: 97 dB 1w/1m
  • Max. SPL/1m (calc): 132 dB
  • Coverage (Nominal -6 dB) H: 90 °
  • Coverage (Nominal -6 dB) V: 50 °
  • Rotatable Horn: No
  • System Power Handling (Continuous/Program/Peak): 500//2000 Watts
  • LF Transducer: 12-inch SMX2121
  • HF Transducer: 1.25-inch DH3/2010A
  • Crossover Frequency: 1600 Hz
  • Nominal Impedance (Passive): 8 O
  • Minimum Impedance: 6.4 O
  • Enclosure Material: Plywood and MDF with EVCOAT
  • Flying: Yes
  • Suspension: (6) 3/8-inch threaded inserts
  • Height: 17.32" (440 mm)
  • Width: 14.33" (364 mm)
  • Depth: 22.56" (573 mm)
  • Weight Net: 19.8 kg (43.65 Lbs.)


    • Model: TX1122
    Manufacturer: Electro Voice
