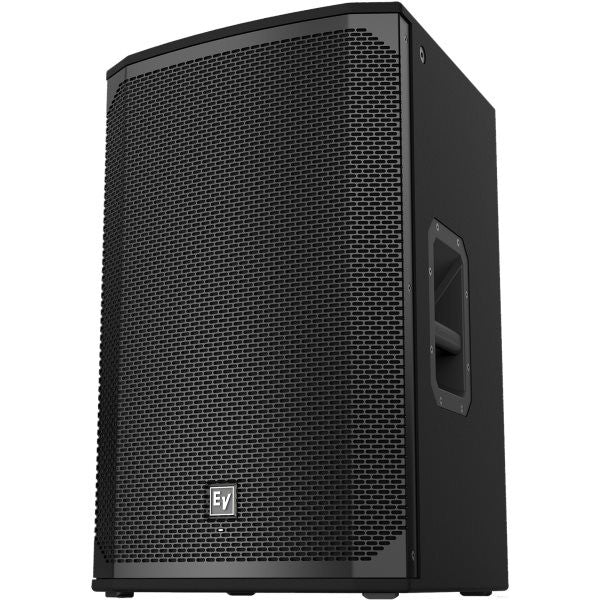

Electro Voice EKX15 EKX-15 Passive 15" 2-Way Speaker

Electro Voice EKX15 EKX-15 Passive 15" 2-Way Speaker

$1,576.00 $799.00

Features: 15-Inch Two-Way Passive Loudspeaker Features: 1600 W (peak), 132 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV. EV-patented Signal Synchronized TransducersTM (SST) waveguide design provides precise and consistent coverage. Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish. Eight M10 threaded mounting points,...

Qty:
Features:

15-Inch Two-Way Passive Loudspeaker

Features:

  • 1600 W (peak), 132 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV.
  • EV-patented Signal Synchronized TransducersTM (SST) waveguide design provides precise and consistent coverage.
  • Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
  • Eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.
  • 90°¸ x 60°¸ pattern for best coverage on mid-size stages. 40°¸ monitor angle with rubber feet.
    • Specifications:
  • Axial Sensitivity (SPL, 1 W @ 1 m): 96 dB Full Space Measurement
  • Maximum SPL: 132 dB Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating
  • Nominal Impedance: 8 O
  • Power Handling (Continuous / Peak): 400 W/1600 W
  • Frequency Response (-3 dB): 75 Hz - 18 k Hz Full Space Measurement
  • Frequency Response (-10 dB): 50 Hz - 20 k Hz Full Space Measurement
  • Recommended High-Pass Frequency: 50 Hz
  • Coverage (Nominal -6 dB) H: 90 °¸
  • Coverage (Nominal -6 dB) V: 60 °¸
  • LF Transducer: EVS-15M 381 mm (15 in)
  • HF Transducer: DH-1M 1-inch titanium compression driver
  • Crossover Frequency: 1.6 k Hz
  • Minimum Impedance: 7.2 O
  • Connector Type: Dual NL4
  • Enclosure Material: 15 mm, plywood with EVCoat
  • Grill: 18 AWG steel with powdercoat
  • Suspension: (8) M10 threaded mounting points
  • Height: 685 mm (26.97")
  • Width: 432 mm (17.01")
  • Depth: 429 mm (16.89")
  • Weight Net: 23.2 kg (51.15 Lbs.)
  • Shipping Weight: 28.2 kg (62.17 Lbs.)


    • Model: EKX15
    Manufacturer: Electro Voice
