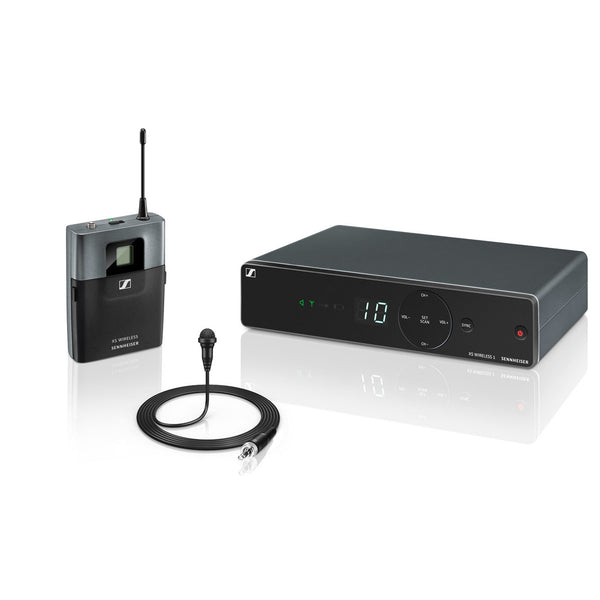

Inspire your audience. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 LAVALIER MIC SET is an easy to use all-in- one wireless system for presenters and moderators, excellent for a powerful and inspiring presentation. The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and an unobstrusive clip-on microphone.

• Compact bodypack transmitter, unobstrusive clip-on microphone

• Antenna-switching diversity reception

• Integrated antennas

• Automatic frequency management and synchronization via remote channel for easy setup

• Selectable UHF frequencies within a large bandwidth

• Up to 10 compatible channels

What's in the Box

• 1 receiver EM-XSW 1
• 1 lavalier microphone ME 2-2
• 1 bodypack transmitter SK-XSW
• 1 power supply NT 12-5 CW
• 2 AA batteries

• Receivers

  • Dimensions

    approx. 200 x 42 x 127 mm



  • Weight

    approx. 340g



  • Power supply

    12 V DC nom. / 300 mA



  • AF frequency response

    50 to 16,000 Hz (–3 dB)

  Transmitter

  • Dimensions

    approx. 71 x 96 x 28 mm



  • Weight

    approx. 95g



  • Power supply

    2 AA size batteries, 1.5 V



  • Adjustment Range Transmitter

    0 to -30 dB, adjustable in 10 dB steps

  • Microphone

    condenser



  • THD, total harmonic distortion

    ≤ 0.9%



  • Pick-up pattern

    omni-directional



  • Signal-to-noise ratio

    ≥ 103 dBA



  • RF output power

    10 mW



  • Switching bandwidth

    up to 24 MHz



  • Operating time

    approx. 10 hrs



  • Modulation

    wideband FM



  • Output voltage

    '1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu



  • Housing

    rugged ABS housing



  • Diversity reception

    antenna switching diversity via internal antennas



  • Frequency

    8 frequency banks, each with up to 10 factory-preset channels



  • Frequency range

    A: 548-572 MHz, GB: 606-630 MHz

    B: 614-638 MHz, C: 766-790 MHz

    D: 794-806 MHz

    E: 821-832 MHz, 863-865 MHz

    K: 925-937.5 MHz



  • Sensitivity

    < 3 μV at 52 dB(A)rms S/N



  • SPL for peak deviation

    130 dB



  • Squelch

    adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)



  • Synchronization

    2.4 GHz, Low Power OQPSK (only active during synchronization)



  • Input sensitivity

    1.5 mV / Pa



  • Audio adjustment range

    45 dB, adjustable in 5-dB steps



  • Line / Mic level

    20 dB, switchable



  • Temperature Range

    operation: 0°C to +40°C, storage: –20°C to +70°C



  • Receiver Principle

    double superheterodyne
