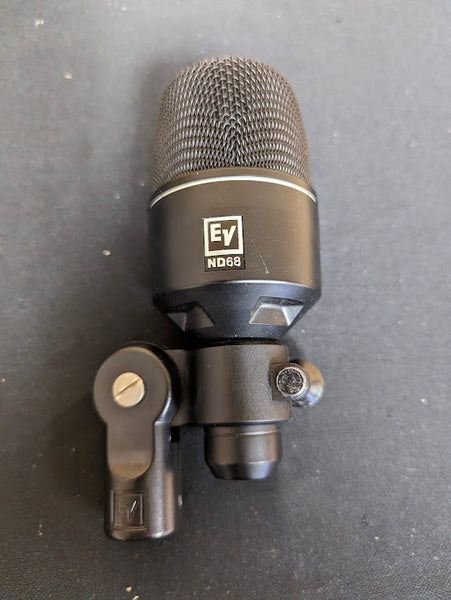

(Rep Sample, DEMO) ND68 - Dynamic supercardioid bass drum microphone
Rep Sample, Demo Unit. Great Condition. No box/pouch included. ND68 Dynamic supercardioid bass drum microphone Excellent acoustic isolationWith deep lows and top-end punctuation Large-diaphragm dynamic capsuleCreates a rich and detailed frequency response Extremely high SPL handling capabilityManages close miking of high SPL transients and RMS wave fronts up to 144...
Rep Sample, Demo Unit. Great Condition. No box/pouch included.
ND68
Dynamic supercardioid bass drum microphone
-
Excellent acoustic isolation
With deep lows and top-end punctuation -
Large-diaphragm dynamic capsule
Creates a rich and detailed frequency response -
Extremely high SPL handling capability
Manages close miking of high SPL transients and RMS wave fronts up to 144 dB SPL -
Humbucking coil guards against line hum
Use with confidence near speaker cabinets and EMF-generating equipment racks -
Memraflex grille resists denting
Durable tight-mesh grilles withstand extraordinarily rough treatment
The ND68 is a robust, high-performance, large-diaphragm dynamic supercardioid kick drum and low-frequency instrument microphone. Its supercardioid polar pattern provides excellent acoustic isolation from nearby instruments, and its voicing characteristics deliver a deep low end, relaxed midrange, as well as high-frequency content for aggressive top-end punctuation.
SPECIFICATIONS
| Connector Type | 3-pin XLR |
| Height | 5.63" (143mm) |
| Weight Net | 13.19oz (374g) |
| Shipping Weight | 24.8oz (703g) |
| Family | ND Series |
| Audio Frequency Response | 20 – 11,000 |
| Maximum SPL | > 140dB |
| Polar Pattern | Supercardioid |
| Wired/Wireless | Wired |
| Mic Type | Instrument |
| Diameter (Max) | 2.39" (60.8mm) |
| Element | Dynamic |
| Impedance, Low-Z balanced | 150Ω |
| Open Circuit Voltage | 0.8mV/Pascal |
| Case Material | Die cast zinc |
| Finish | Black polyurethane paint |
| Power Requirement | Passive |
