Stylus Pro S

$56.99 $40.99

Pro S Replacement stylus The Pro S entry-level cartridge is perfect for newcomers on the DJ scene who want to start off with decent, but not too expensive equipment.The Pro S has a spherical diamond stylus which minimizes scratching and a solid cantilever which can survive hectic activity at the...

Product Description

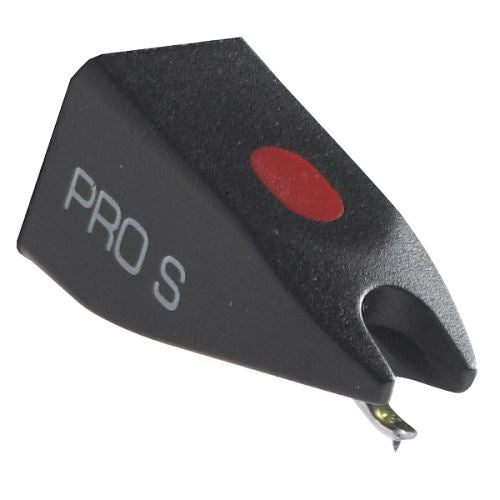

Pro S Replacement stylus

The Pro S entry-level cartridge is perfect for newcomers on the DJ scene who want to start off with decent, but not too expensive equipment.

The Pro S has a spherical diamond stylus which minimizes scratching and a solid cantilever which can survive hectic activity at the turntable.

No matter what the application, the Pro S provides remarkable versatility for virtually any setting.

The sound quality is absolutely not to worry about.

The Pro S is a consistent performer and a fine all-arounder!

Pro S Stylus Technical data

Output voltage at 1000Hz, 5cm/sec. - 5 mV
Channel balance at 1kHz - 2 dB
Channel separation at 1kHz - 20 dB
Channel separation at 15 kHz - 15 dB
Frequency range at -3dB - 20-18.000 Hz
Frequency response - 20-18.000 Hz +/-2 dB
Tracking ability at 315 Hz at recommmende tracking force - 70 μm
Compliance, dynamic lateral - 7 μm/m N
Stylus type - Spherical
Stylus tip radius - R 18 μm

Tracking force range - 3.0-5.0 g (30-50 mN)
Tracking force recommended - 4.0 g (40 mN)
Tracking angle - 20°
Internal impedance, DC resistance - 750 Ohm
Internal inductance - 450 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 200-600 pF
Concorde / OM cartridge weight - 18.5 g / 5.0 g

Compatible with cartridges - Concorde Pro S and OM Pro S

Pro S Replacement stylus

Pro S Stylus Technical data
