All-In-One Standalone Motorized DJ System
SYSTEM ONE redefines what’s possible for open format DJs, allowing for dynamic, laptop-free performances and an unmatched level of creative freedom—all in one system.

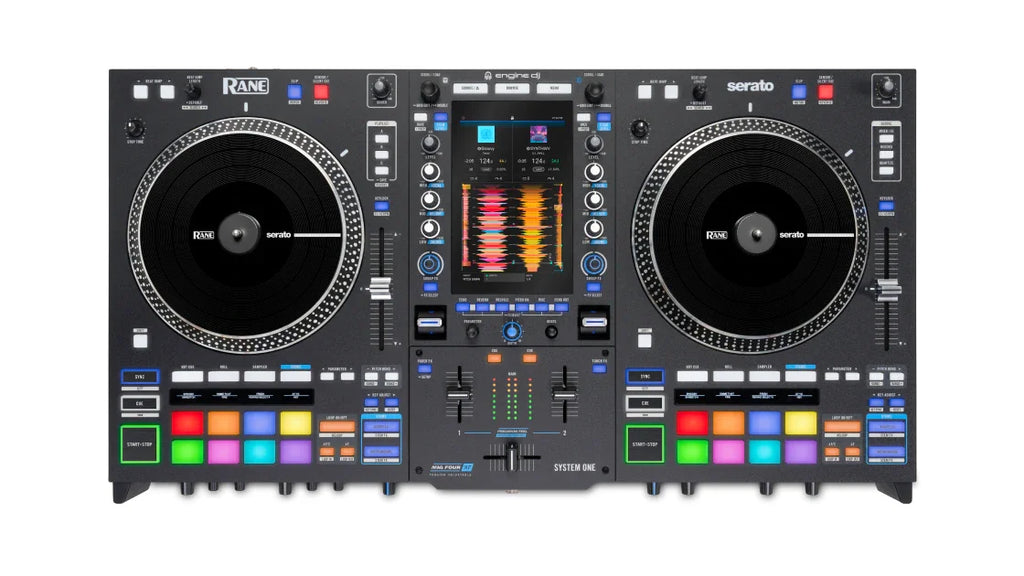

RANE SYSTEM ONE is the world’s first all-in-one standalone DJ system with motorized platters, fusing the legacy feel of turntables with the freedom of modern, laptop-free standalone DJ technology.
The first RANE product with Engine DJ on board, SYSTEM ONE allows open format DJs to experience the trusted performance of RANE hardware while seamlessly mixing between standalone media, music streaming services, and software sources like Serato DJ and Algoriddim djay (support coming in early 2026.) With loads of FX options and multiple ways to DJ with Stems, this all-in-one system gives you the power to unlock new levels of creativity and elevate every performance.
SYSTEM ONE is designed to streamline your entire workflow. The embedded Engine DJ operating system allows you to deliver dynamic performances without a laptop. This technology, combined with the 7.2” aluminum motorized platters, empowers open format DJs with an unmatched level of freedom while maintaining the legacy feel of turntables
Converters
Cirrus Logic, 24-bit PCM, 44.1 kHz
Digital Signal Processing
32-bit, Floating Point, Double Precision
Audio Outputs
Main Output
(XLR, RCA stereo pair)
Output Type:
Balanced XLR
Max Output Level (XLR):
8 Vrms
Max Output Level (RCA):
4 Vrms
Frequency Response:
20 Hz–20 kHz: +0, -1 dB
THD+N:
0.002% @ 1 kHz, 4 Vrms
Channel Separation:
> 80 dB
Input Gain Trim Range:
Off to +12 dB
Output Level Range:
Off to 0 dB
Booth Output
(1/4” [6.35 mm] TRS)
Output Type:
Balanced TRS
Frequency Response:
20 Hz – 20 kHz: +0, -1 dB
THD+N:
0.002% @ 1 kHz, 4 Vrms
Channel Separation:
> 80 dB
Input Gain Trim Range:
Off to +12 dB
Output Level Range:
Off to 0 dB
Headphone Output
(1/4” [6.35 mm] and 1/8”
[3.5 mm] TRS)
Output Type:
Stereo TRS (1/8” and 1/4” jacks)
Cue Features:
Cue / Split Cue
Max Output Level (No Load):
4 Vrms
Max Power Output @ 50 Ω:
150 mW
Frequency Response:
20 Hz – 20 kHz: +0, -1 dB
THD+N @ 1 kHz, 4 Vrms (No Load):
0.002%
THD+N @ 1 kHz, Full Power @ 50 Ω:
0.08%
Channel Separation:
> 80 dB
Level Control Range:
Off to 0 dB
Inputs (Combo XLR/1/4”
[6.35 mm] TRS)
Input Type:
Balanced XLR/TRS combo
Frequency Response @ 20 Hz:
-2.5 dB
Frequency Response @ 20 kHz:
-5 dB
THD+N @ 0.1 Vin, Gain = 25 dB:
0.015% (100 Hz–20 kHz)
DR (A-weighted), Gain = 25 dB:
102 dB
DR (A-weighted), Gain = 60 dB:
72 dB
IRN (A-weighted), Gain = 60 dB:
-132 dB
IRN (20 Hz–20 kHz), Gain = 60 dB:
-130 dB
Auxiliary Input
(RCA stereo pair)
ADC:
24-bit, 115 dB DR (A-weighted)
Input Type:
Unbalanced RCA
Frequency Response:
20 Hz –20 kHz: +0, -1 dB
THD+N @ 3 Vrms, Unity Gain:
0.005% (20 Hz–20 kHz)
Gain Range:
Off to +12 dB
DR (A-weighted), Unity Gain:
108 dB
Pads:
16 total, on/off multi-color back-lit (8 per deck)
Channel Faders:
2 PRECISION FEEL tension-adjustable with contour and reverse
Crossfader:
1 MAG FOUR tension-adjustable with contour and reverse
Main Display:
7"/178 mm (diagonal) full-color LED-backlit display with touch interface
Pad Displays:
(8) 128 x 32 monochrome OLEDs
Wi-Fi:
- 2.4GHz/5GHz
- 802.11a/b/g/n/ac
- Wi-Fi 5
File Systems
- exFAT (recommended)
- FAT32
Playable Formats
- AAC/M4A
- AIF/AIFF (44.1–192 kHz, 16–32-bit)
- ALAC
- FLAC
- MP3 (32–320 kbps)
- MP4
- Ogg Vorbis
- WAV (44.1–192 kHz, 16–32-bit)
Streaming Services
- Onboard Streaming Services (subscription required)
- Amazon Music Unlimited
- Apple Music
- Beatport
- Beatsource
- SoundCloud Go+
- TIDAL
Onboard Smart Lighting
Supported DMX
- SoundSwitch DMX Micro
- SoundSwitch Control One
Power
(Internal with locking IEC)
Input Voltage:
100–240 VAC
Dimensions (W x D x H):
Inches: 29.00 x 15.87 x 5.70
Centimeters: 73.66 x 40.30 x 14.47
Weight:
29.4 lbs (13.33 kg)
Inputs
Microphones:
- Mic 1: XLR + 1/4” Combo Jack
- Mic 2: XLR + 1/4” Combo Jack
Aux:
Stereo Pair (RCA)
Outputs
Main:
(2) XLR, Stereo Pair (RCA)
Booth:
(2) 1/4” TRS Jacks
Headphones:
- 1/4” Stereo Jack
- 3.5-mm Stereo Mini-Jack
Media Inputs
USB:
- USB 1: Type-A, USB 2.0 High Speed
- USB 2: Type-C, USB 3.0 SuperSpeed
- USB 3: Type-A, USB 3.0 SuperSpeed
- USB 4: Type-A, USB 3.0 SuperSpeed
- USB to Computer: Type-C, USB 3.0 SuperSpeed
SD Media:
SD, SDHC, SDXC
Internal HD:
SATA 3.0
