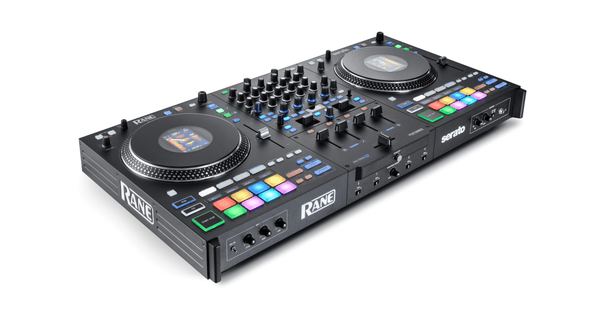

Professional 4-channel Motorized DJ Controller
The RANE PERFORMER is the only 4-channel motorized DJ controller built to RANE’s rigorous standards. The PERFORMER earns the namesake from the talented professional artists that put this controller to work, making good use of the PRECISION FEEL FADERS, MAG FOUR crossfader, and industry-leading sound quality.
Familiar Feel
The PERFORMER boasts 7” high torque die-cast aluminum platters with acrylic discs that respond just like vinyl.
PRECISION FEEL FADERS
Adjustable volume faders utilize the same dual rail mechanical system of the MAG FOUR, making them smooth, light, and extremely rugged.
Advanced STEMS Control
Four unique options for controlling stems, the PERFORMER sets the standard for creative open format DJing.
Advanced STEMS Control
Advanced Stems control features including STEM-SPLIT, STEM LEVEL, STEM Pad Mode, and instant Acapella/Instrumental buttons
Tech Specs
| Digital Audio |
| Converters |
- Cirrus Logic, 24-bit PCM, 48 kHz
|
| Digital Signal Processing |
- 32-bit, Floating Point, Double precision
|
| Connections |
- (2) XLR outputs (Main)
- (2) 1/4” outputs (Booth)
- (1) RCA stereo output pair (Main)
- (2) XLR / 1/4” (6.35 mm) TRS inputs (Mic 1–2)
- (2) RCA stereo input pairs (Deck 3-4)
- (1) 1/4” (6.35 mm) TRS output (Headphones)
- (1) 1/8” (3.5 mm) TRS output (Headphones)
- (2) USB Type-B ports
- (1) IEC power cable input
|
| Audio Outputs |
Main Outputs
(XLR) |
- Gain Trim
- Maximum Output
- THD+N (20 kHz BW @ 1 kHz)
- Frequency Response
|
- Off to 0 dB
- 8 Vrms
- 0.004%
- Flat - 20-20kHz
|
Main Outputs
(RCA stereo pair) |
- Maximum Output
- THD+N (20 kHz BW @ 1 kHz)
- Frequency Response
|
- 4 Vrms
- 0.004%
- Flat - 20-20kHz
|
Booth Outputs
(1/4”) |
- Gain Trim
- Maximum Output
- THD+N (20 kHz BW @ 1 kHz)
- Frequency Response
|
- Off to 0 dB
- 8 Vrms
- 0.004%
- Flat - 20-20kHz
|
Headphone Outputs
(1/4”/6.35 mm and 1/8”/3.5 mm TRS) |
- Maximum Output
- Output Power
- Dynamic Range (A-weighted)
|
- 4 Vrms Voltage: (no load)
- 50 mW (50 ohms)
- 108 dB
|
| Audio Inputs |
Microphone 1/2
(Combo XLR/1/4” [6.35 mm] TRS) |
- Analog Gain
- Maximum Input
- Gain Trim
- Tone Control
|
- 25 dB
- 110 mV
- Off to +26 dB (unity at center)
- 2-band
|
Line/Phono Inputs 3/4
(RCA stereo pairs, switchable) |
| Line |
- Maximum Input
- Gain Trim
- Tone Control
- THD+N (20 kHz BW @ 1 kHz
|
- 4 Vrms
- Off to +12 dB
- 3-band, full-cut to +10 dB
- 0.004%
|
| Phono (RIAA) |
- RIAA Curve
- Gain (@ 1 kHz)
- Maximum Input (@ 1 kHz)
- Dynamic Range (A-weighted)
|
- +/-0.25 dB
- 31.5 dB
- 106 mV
- 102 dB
|
| Pads |
- (16) on/off multi-color back-lit pads (8 per deck, 9 modes each
|
| Wheel Displays |
|
| Pad & FX Displays |
- (9) 128 x 32 Monochrome OLEDs
|
| Faders |
- (1) MAG FOUR tension-adjustable crossfader with contour
- (4) Precision Feel Faders (channel faders)
|
| Power |
- Connection: IEC
- Voltage: 100–240 V, 50/60 Hz
- Consumption: 150 W
|
| General |
Dimensions
(width x depth x height) |
- 30.84” x 15.84 x 4.32”
- 78.33 x 40.23 x 10.97 cm
|
| Weight |
|
Specifications are subject to change without notice.
