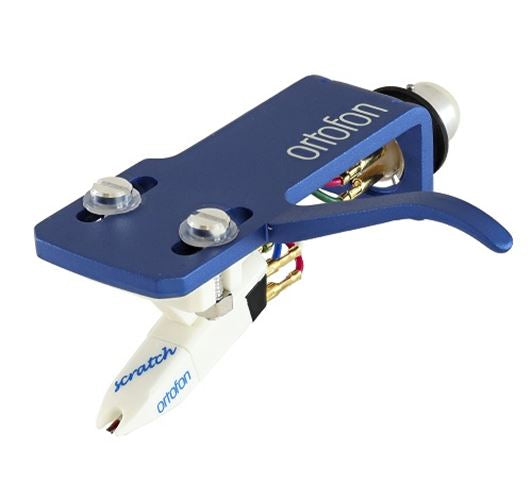

OM Scratch White pre-mounted on SH-4 Blue headshell

$167.99 $119.99

The OM Scratch White on the SH-4 Black headshell is a practical and convenient solution for our customers who wish direct and easy mounting and replacement on their S-shaped tonearm.  Features:• Universal mount fitting a wide range of S-shaped tonearms • Correct Baerwald alignment with the major part of tonearms with universal mount  •...

The OM Scratch White on the SH-4 Black headshell is a practical and convenient solution for our customers who wish direct and easy mounting and replacement on their S-shaped tonearm.

Features:
• Universal mount fitting a wide range of S-shaped tonearms
 Correct Baerwald alignment with the major part of tonearms with universal mount
• Spherical stylus minimizes scratching
• Increased tracking ability
• Reinforced rubber suspension

High output and maximum scratch performance guaranteed!



OM Scratch White technical data

  • Stylus TypeSpherical
  • Tracking Force4.0 g (40 mN)
  • Output Voltage7 mV
  • Frequency Range20-15.000 Hz

Output voltage at 1000Hz, 5cm/sec. - 7 mV
Channel balance at 1kHz -  1,5 dB
Channel separation at 1kHz  - 25 dB
Channel separation at 15 kHz  - 15 dB
Frequency range at -3dB  - 20-20.000 Hz
Frequency response  - 20-15.000 Hz 3dB/-2dB
Tracking ability at 315 Hz at recommmended tracking force -  80 μm
Compliance, dynamic lateral  -  6 μm/m N
Stylus type -  Spherical
Stylus tip radius -  R 18 μm
Tracking force range -  3,0-5,0 g (30-50 mN)
Tracking force recommended - 4,0 g (40 mN)
Tracking angle  - 20°

Internal impedance, DC resistance -  750 Ohm
Internal inductance  - 450 mH
Recommended load resistance -  47 kOhm
Recommended load capacitance -  200-600 pF
OM cartridge weight  - 5 g
OM pre-mounted on SH-4 weight incl. screws - 14,5 g
