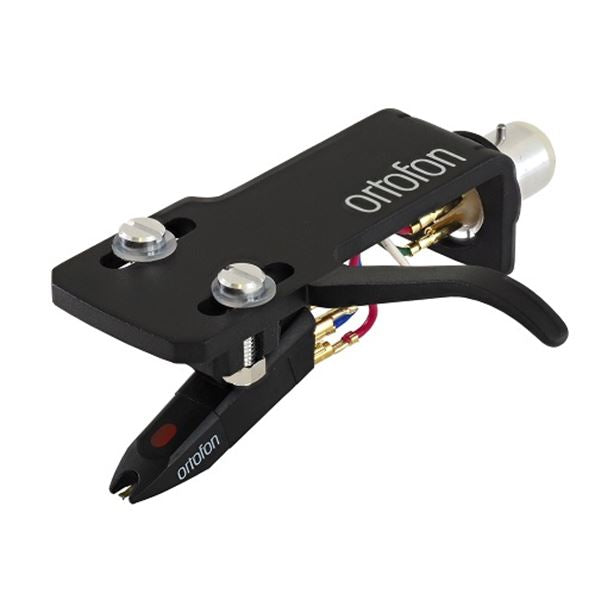

OM Pro S pre-mounted on SH-4 Black

$164.99 $117.99

The OM Pro S on the SH-4 Black headshell is a practical and convenient solution for our customers who wish direct and easy mounting and replacement on their S-shaped tonearm.  Features:• Universal mount fitting a wide range of S-shaped tonearms • Correct Baerwald alignment with the major part of tonearms with universal mount  •...

The OM Pro S on the SH-4 Black headshell is a practical and convenient solution for our customers who wish direct and easy mounting and replacement on their S-shaped tonearm.

Features:
• Universal mount fitting a wide range of S-shaped tonearms
 Correct Baerwald alignment with the major part of tonearms with universal mount
• Spherical stylus minimizes scratching
• Solid cantilever can survive hectic activity at the turntable

The OM Pro S is a consistent performer and a fine all-arounder!

OM Pro S technical data

  • Stylus TypeSpherical
  • Tracking Force4.0 g (40 mN)
  • Output Voltage5 mV
  • Frequency Range20-18.000 Hz

Output voltage at 1000Hz, 5cm/sec.  -  5 mV
Channel balance at 1kHz  -  2 dB
Channel separation at 1kHz  -  20 dB
Channel separation at 15 kHz  -  15 dB
Frequency range at -3dB  -  20-18.000 Hz
Tracking ability at 315 Hz at recommmended tracking force  -  70 μm
Compliance, dynamic lateral  -  7 μm/m N
Stylus type -  Spherical
Stylus tip radius -  R 18 μm
Tracking force range  -  3 - 5 g
Tracking force recommended  -  4 g
Tracking angle  -  20°

Internal impedance, DC resistance  -  750 Ohm
Internal inductance  -  450 mH
Recommended load resistance  -  47 kOhm
Recommended load capacitance  -  200-600 pF
OM cartridge weight  -   5,0 g
OM pre-mounted on SH-4 weight incl. screws - 14,5 g
