Specifications

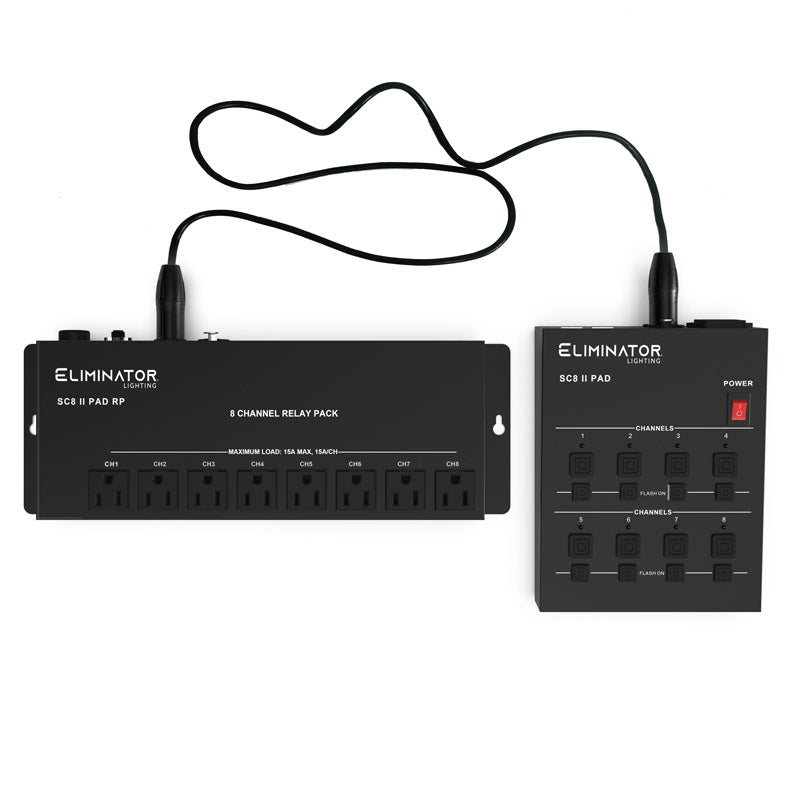

System Includes:

• 1x SC8 II Pad controller
• 1x SC8 II PAD RP (Relay Pack)
• 1x 25ft. 3-pin DMX Cable
• 1x 4ft. (1.2M) IEC Power Cord

SC8 II Pad Features:

• 8x Individual channel On / Off toggle switches
• 8x individual flash switches
• AC100-240V 50/60Hz power input with IEC inlet
• 2x USB outputs to charge mobile devices
• Master On/Off Power Switch
• 3-pin XLR Data Output
• Rubber Feet for Desk Use

SC8 II Pad RP Features:

• 8x Edison Power Outlets
• 15 AMPS Total Power Capacity (Per Relay Pack)
• 3-pin XLR Data In/Out to connect to additional relay pack
• Circuit Breaker Reset
• M10 Mounting Thread for clamp
• Safety Loop

Electrical:

• Power Input:

SC8 II Pad: AC 100-240V, 50/60Hz

SC8 II Pad RP: AC 100-120V, 60Hz

• Power Consumption:

SC8 II Pad: AC 120V, 60Hz; 350mA; 20W

AC 230v, 50Hz; 180mA; 21W

SC8 II Pad RP: AC 100V, 60Hz; 15A; 1500W

AC 120V, 60Hz; 15A; 1800W

Dimensions:

• SC8 II Pad - 7.75” x 5.9” x 2.25” / 197x150x57.9mm
• SC8 II Pad RP - 13.5” x 5” x 2” / 343x128x53.2mm

Weight:

• 5 lbs. / 2.37 kgs.

Approvals / Ratings:

• CE
• cETLus (Control # 5014475)
• FCC
• IP20

*Specifications are subject to change without notice.
