Specifications

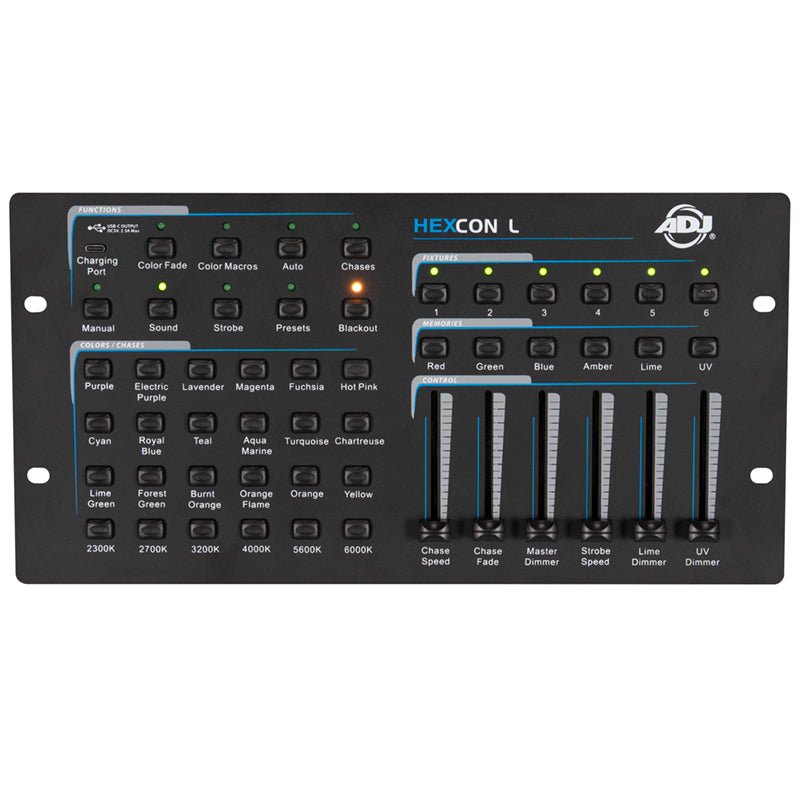

Compact DMX controller for ADJ, RGBAL+UV, HEX series products

Control up to 6 individual, RGBAL+UV LED fixtures or fixture groups

6 user programmable presets, direct access buttons

30 Color preset direct access buttons

6 multi-function faders

Color Macro playback mode

Manual RGBAL+UV intensity control mode

Color Fade Mode, Color Chase Mode, Auto Run, Sound Active, and Strobe functions.

On the fly Speed Fade control of all chase programs

Sound active mode via internal microphone

Adjustable microphone sensitivity

Variable strobe- 0.33Hz to 11Hz

Blackout button

DMX output connector: 5-pin XLR

USB C Charging port (Charges most mobile phones and tablets)

Power In: 5VDC 3A UL approved power supply (Included)

Power consumption: 15 Watts (3 Amps)

Approvals: CE, cETLus and FCC

IP Rating: IP20

Dimensions: 14.2” x 7.2” x 2.7” (360mm x 183mm x 69mm)

Weight: 4lbs. (1.74kgs.)

Ambient Usage Temperature: -20°C ~ 40°C

Storage Temperature: -30°C ~ 45°C

Specifications are subject to change without notice.
