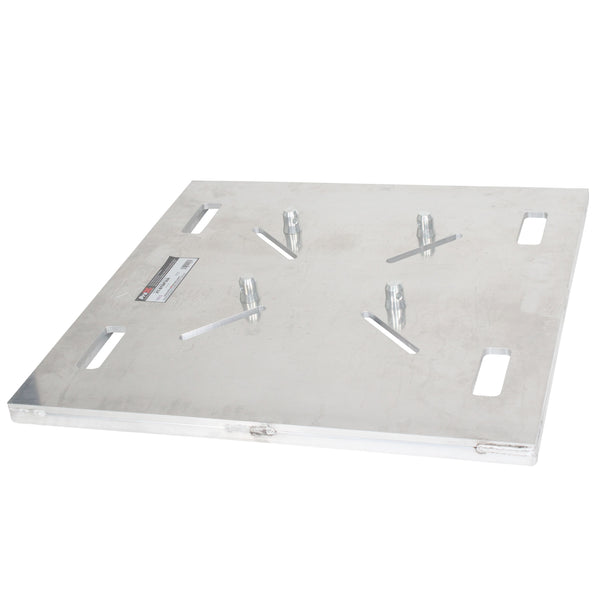

ProX XT-BTBP30A BoltX™ Heavy-Duty Base Plate is engineered for professional box truss systems where strength, stability, and dependable fitment are essential. Built for demanding production environments, this 30-inch base plate is ideal for stage lighting, concerts, event structures, trade show displays, house of worship installations, obstacle course structures, and other rigging-related applications where a secure truss foundation is required.

Designed for professional use, the XT-BTBP30A is built from a 1/2" aluminum plate welded to a 1" raised frame, creating a strong and durable platform for repeated use in touring, rental, and permanent installation settings. The raised frame construction adds rigidity and support while maintaining a clean, professional appearance.

The XT-BTBP30A is designed to mate perfectly with ProX BoltX™ 12" and 16" bolted box truss systems, and it is also drilled to fit F34 truss patterns for added versatility. Its industry-standard 6.75" x 6.75" bolt pattern allows compatibility with many other 12-inch professional box truss manufacturers using the same bolt-center spacing, making it a practical choice for mixed truss inventories and a wide range of staging applications.

For easier handling on the job site, the base plate features four integrated hand holes for lifting and positioning. It is also slotted and drilled for quick center or offset mounting, giving users more flexibility during setup. Each unit includes one full set of four 5/8"-11 attachment bolts, nuts, flat washers, and lock washers for secure connection to compatible truss sections.

Manufactured with quality and reliability in mind, the XT-BTBP30A is load tested and inspected during production and quality control. It is welded to TÜV standards using 6082-T6 alloy by GSI SLV-certified welders, reflecting ProX’s commitment to professional-grade performance and workmanship.

Important: Always determine the total load weight of your structure and mounted equipment before use, and consult the appropriate loading chart for safe operation.

• Designed for 12" and 16" BoltX™ bolted box truss systems
• Also drilled to fit F34 truss patterns (conical connectors included)
• Heavy-duty 30" aluminum base plate for professional truss support
• Built from a 1/2" aluminum plate welded to a 1" raised frame
• Industry-standard 6.75" x 6.75" bolt pattern with 5/8" holes
• Compatible with many other 12" professional box truss manufacturers
• Four convenient hand holes for easier lifting and positioning
• Slotted and drilled for quick center or offset mounting options
• Ideal for stage lighting, concerts, event production, installations, and structural builds
• Load tested and inspected during manufacturing and quality control
• Includes one set of four 5/8"-11 attachment bolts, nuts, flat washers, and lock washers
• Welded to TÜV standards
• Made from 6082-T6 alloy
• Welded by GSI SLV-certified welders
• Finish: Natural Aluminum
