Specifications

FEATURES:

• Individual volume controls on each channel
• On/Off power switch
• 2 Individual 3-pin XLR balanced microphone outputs

+ One 1/4-inch mixed output

• 2 removable antennas and extension cables for

front mounting

• Rugged 1RU Metal Receiver Chassis
• Quartz Controlled Fixed Frequency

WHAT’S INSIDE:

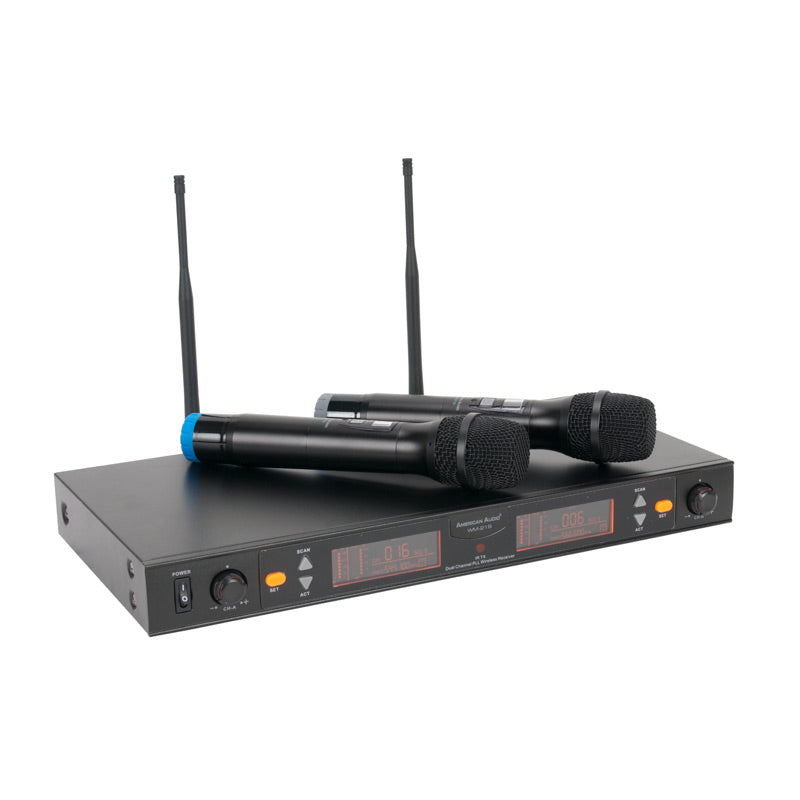

• 2x Hand Held Wireless Microphones (AA batteries

not included)

• 2x Microphone Colored Rings
• 1x 2-Channel UHF Wireless Receiver
• 2x Detachable UHF Antennas
• 1x Power Cable
• 2x Rack Ears to mount in 19-inch rack mount
• 2x Microphone clips

PERFORMANCE:

• Wireless Range: 300 ft. (90M) line of site*
• Battery life with full charge: 6-10 hours
• Frequency Range: UHF 540-590MHz
• Dynamic Range: >98dB
• Total Harmonic Distortion: <1%
• Frequency Response: 50HZ ~ 14KHz 3dB
• Signal to Noise Ratio: >85dB
• Audio Output Level: 0-300mV (Balanced: 0-2V)
• Transmitting Power: +10sBM

*Actual wireless range will depend on RF signal absorption

and interference

DIMENSIONS / WEIGHT:

• Receiver Dimensions (LxWxH): 16.5”x9”x1.75” / 420x230x45mm
• Receiver Weight: 1.5 lbs. / .68kg.
