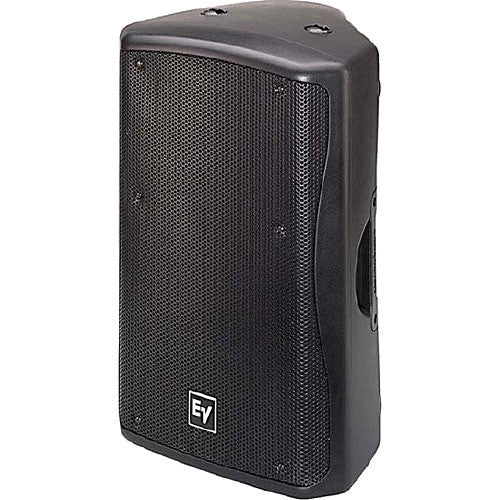

Electro Voice ZX590B 600" 15" 2-Way Loudspeaker, Bi-Amp Or Passive, 90

Electro Voice ZX590B 600" 15" 2-Way Loudspeaker, Bi-Amp Or Passive, 90 X 50 Horn, Integral Stand Mo

$1,624.00 $1,199.00

Features: The Electro-Voice Zx5-90 is a 2-way P.A. suspension loudspeaker with a 600-watt continuous power handling capacity and a 90°¸ x 50°¸ coverage angle, for wider-angle, shorter distance applications. The high-tech, high-impact polypropylene enclosure houses a 15" woofer and a 1" Neodymium compression driver with a large 2" voice-coil. The...

Product Description

Features:

The Electro-Voice Zx5-90 is a 2-way P.A. suspension loudspeaker with a 600-watt continuous power handling capacity and a 90°¸ x 50°¸ coverage angle, for wider-angle, shorter distance applications. The high-tech, high-impact polypropylene enclosure houses a 15" woofer and a 1" Neodymium compression driver with a large 2" voice-coil. The Zx5-90 cabinet is equipped with 10 integral suspension points for permanent suspension or bracketing, and 3 Anchor Plates for single-stud fittings, with an additional pair of Aunchor Plate attachment points on the bottom of the speaker.

Features:

2-way 600-watt suspension P.A. speaker for log-throw and cluster applications

High output, 132dB SPL capacity

Adjustable feet allow 45°¸ or 55°¸ speaker placement angle for use as stage monitor

15" forced-air-cooled woofer, 1" titanium diaphragm compression driver with 2" voice coil

90°¸ x 50°¸ coverage pattern for wider angle, shorter-throw applications

Rugged, high-tech polypropylene enclosure

3 suspension Anchor Plates, 10 M8 insert suspension points

Specifications:

Active or Passive: Passive

Frequency Response: 58 Hz - 18 kHz

Power Capacity: 600 Watts continuous

2400 Watts peak

Maximum Sound Pressure Level (SPL): 132dB

Nominal Sensitivity: 98dB, 1W/1m

Impedance: 8 Ohms

Crossover: 1.5kHz

Low Frequency Driver: 15" driver with forced-air cooling

High Frequency Driver: 1" titanium Neodymium compression driver with 2" voice coil

Enclosure Material: Polypropylene structural foam, powder-coated galavanized steel grille

Input Connections: Neutrik Speakon NL4

Dimensions: 27.3 x 17.6 x 16.1" (692 x 446 x 411mm)

Weight: 49 Lbs. (22.2 kg)

Model:	ZX590B
Manufacturer:	Electro Voice
