Electro Voice

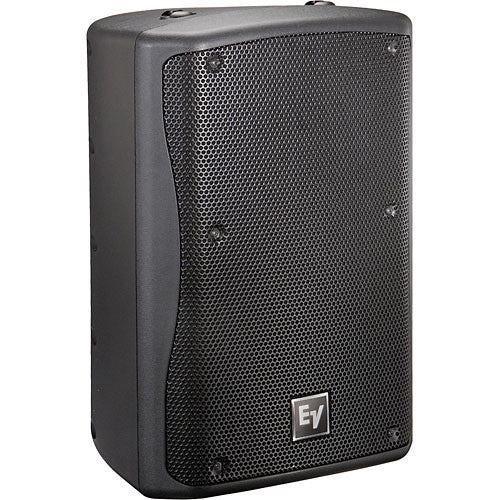

ZX390B 600W 12" 2-Way Loudspeaker, Bi-Amp Or Passive, 90 X 50 Horn, Integral Stand Mo

  • Sale
  • $949.00
  • Regular price $1,229.00


Features:

The Electro-Voice ZX3-90B is a 2-way P.A. passive loudspeaker with a 600-watt continuous power handling capacity and a 90x50°¸ coverage angle, for wider coverage or shorter distances. The high-tech, high-impact polypropylene enclosure houses a 12" woofer and a 1" Neodymium compression driver with a large 2" voice-coil. The ZX3-90B cabinet is equipped with 10 integral suspension points for permanent suspension or bracketing, and 3 Anchor Plates for single-stud fittings, with an additional pair of Anchor Plate attachment points on the bottom of the speaker.

Features:

  • 2-way 600-watt suspension P.A. speaker with 90x50°¸ coverage for wider coverage or shorter distances
  • High output, 131dB SPL capacity
  • Adjustable feet allow 45°¸ or 55°¸ speaker placement angle for use as stage monitor
  • 12" forced-air-cooled woofer, 1" titanium diaphragm compression driver with 2" voice coil
  • Rugged, high-tech polypropylene enclosure
  • 3 suspension Anchor Plates, 10 M8 insert suspension points
  • Specifications:
  • Active or Passive: Passive
  • Frequency Response: -10dB:48-20,000Hz
  • Power Capacity: 600W
  • Maximum Sound Pressure Level (SPL): 131dB
  • Nominal Sensitivity: 97dB
  • Impedance: 8 ohms
  • Crossover: 2KHz
  • Low Frequency Driver: DVX3121, 12" (305mm) Driver
  • High Frequency Driver: ND2, 1" (25.4mm) exit Neodymium
  • Enclosure Material: Polypropylene Structural Foam
  • Input Connections: Neutrik Speakon NL4's x 2
  • Mounting Options: Enclosure has locations for 4 Single-StudAttachment Plates and 10 Forged SteelEyebolts - 2 on Top, 2 on Bottom, 2 onSide, and 1 on Rear of Enclosure
  • Dimensions: 24.14 x 15.64 x 14.26" (613 x 397 x 362mm)
  • Weight: 43.7 Lbs. (19.8kg)


  • Model: ZX390B
    Manufacturer: Electro Voice
