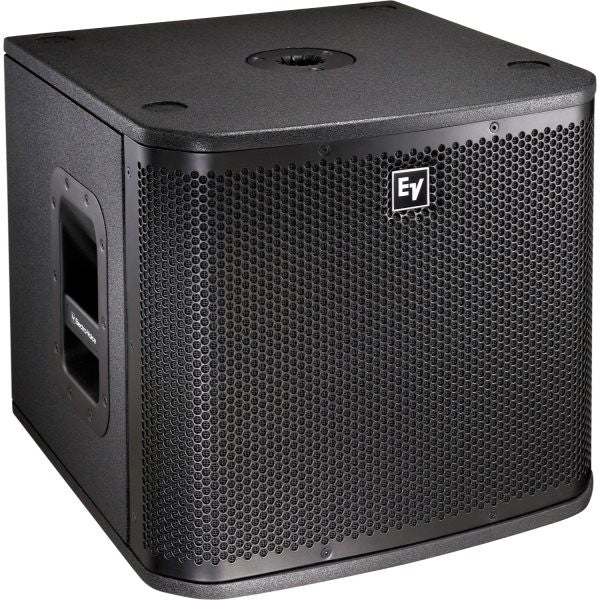

Electro Voice ZX1SUB ZX1-Sub, Black, Passive

$722.00 $599.00

Features: The ZX1-Sub from Electro-Voice is a 12" passive subwoofer optimized for use with a variety of the company's loudspeakers, including ZX1, EVID, and EVU models. Adding the subwoofer to a system will provide a deep low-frequency punch that can be felt as well as heard and is an ideal...

Qty:
Features:

The ZX1-Sub from Electro-Voice is a 12" passive subwoofer optimized for use with a variety of the company's loudspeakers, including ZX1, EVID, and EVU models. Adding the subwoofer to a system will provide a deep low-frequency punch that can be felt as well as heard and is an ideal choice to complete a wide range of smaller fixed installations or live sound systems.

Features:

  • 15-mm plywood enclosure, internally braced, with textured paint
  • 12" woofer for powerful, engaging bass response
  • Pole mount for full-range systems
  • Specifications:
  • Active or Passive: Passive
  • Transducer: 12" (305 mm) EVS-12S
  • Frequency Response:
    • 53 to 125 Hz, -3 dB
    • 42 to 200 Hz, -10 dB
  • Sensitivity: 94 dB, 1 W/1 m
  • Power Capacity:
    • Continuous: 400 W
    • Program: 800 W
    • Peak: 1600 W
  • Maximum Sound Pressure Level (SPL): 127 dB maximum, SPL/1m
  • Nominal Impedance: 8 O
  • Enclosure:
    • Construction: 9-ply, 15 mm plywood, internally braced with textured paint
    • Grill: 16 GA steel with black powder coat
  • Connectors: 2 x NL4 style
  • Dimensions (WxDxH): 17.50 x 18.00 x 15.75" (445 x 457 x 400 mm)
  • Weight: 56 Lbs. (25.4 kg) shipping


  • Model: ZX1SUB
    Manufacturer: Electro Voice
