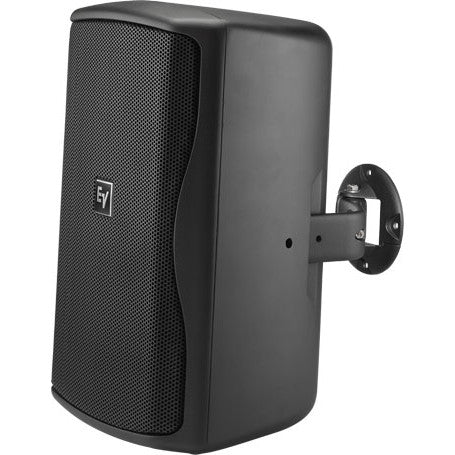

The Electro-Voice ZX1i-90 is a passive, full-range, 2-way indoor/outdoor installation loudspeaker, with a durable all-weather enclosure and water-resistant steel grille, housing an 8" woofer and a 1" compression driver in a rotatable horn. The speaker features a snap-on surface mount and a coverage pattern suitable for long-throw and cluster install applications.
2-way full-range indoor/outdoor installation loudspeaker with 200-watt continuous power handling
Optimized for long-throw and cluster applications, extended frequency reproduction
1" compression driver in 90°¸ x 50°¸ rotatable horn, horizontal and vertical placement options
8" weatherized cone driver
Integrated QuickSAM snap-in mounting bracket for simplified installation
Weather-resistant polymer enclosure with multi-layer, water-resistant cloth-covered 18-gauge steel grille
Active or Passive: Passive
Frequency Response: 60 Hz - 20 kHz, -3dB
Maximum Sound Pressure Level (SPL): 123 dB(90°¸)
Nominal Sensitivity: 94 dB(90°¸)
Impedance: 8 Ohms
Crossover: 1.7 kHz
Low Frequency Driver: 8"
High Frequency Driver: 1"
- 200 Watts continuous
- 400 Watts program
- 800 Watts peak
Input Connections: 1 x 4-pin Phoenix
Dimensions: 17.75 x 11.1 x 10.3" (451 x 282 x 263mm)
Weight: 18.5 Lbs. (8.4 kg)
- Paintable high-impact polymer
- Polyester powder-coated galvanized steel grille
