Electro Voice

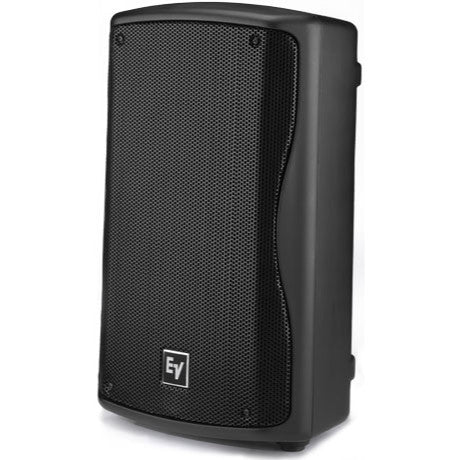

ZX190 200 Watt 8" 2-Way Speaker System with Ev Dh2005 Hi-Frequency Compression Driver

  • Sale
  • $329.00
  • Regular price $432.00


The Electro-Voice ZX190 200W 8" 2-Way Speaker (Black) is a passive, full-range, 2-way P.A. loudspeaker, with a durable all-weather enclosure, housing an 8" woofer and a 1" compression driver in a rotatable horn. This unit is equipped with full overload protection. The ZX190 features an integrated handle for simplified transportation, a built-in speaker pole mount, and a wedge-angle design. This unit is a perfect choice as a small stage monitor.


  • Multiple Formats: Use this loudspeaker in multipe formats. The weatherized cone driver and enclosure make it perfect for outside use while the integrated recessed carrying handle, pole mount and wedge-angle design lend themselves nicely to stage monitor situations.
  • Port Design: The velocity-compensated port design overcomes many of the limitations that other smaller sized loudspeakers encounter, and in turn gives you great low-frequency response and exceptional performance reliability.
  • Loaded with Features: This 2-way full-range PA loudspeaker is equipped with a 200W continuous, 800W peak power handling, full-bandwidth overload protection and full-range frequency reproduction. Just imagine the high quality performance you'll receive from your audio presentations.
  • Placement Options: The 90°¸ x 50°¸ rotatable horn gives you top-quality sound while also giving you horizontal and vertical placement options.
  • Specifications:
  • Active or Passive: Passive
  • Frequency Response: 60 Hz - 20 kHz, -3 dB
  • Power Capacity:
    • 200W continuous
    • 400W program
    • 800W peak
  • Maximum Sound Pressure Level (SPL): 123 dB (90°¸)
  • Nominal Sensitivity: 94 dB (90°¸)
  • Impedance: 8 Ohms
  • Crossover: 1.7 kHz
  • Low Frequency Driver: 8"
  • High Frequency Driver: 1"
  • Enclosure Material:
    • High-impact polymer
    • Polyester powder-coated galvanized steel grille
  • Input Connections: 2 x Speakon NL4
  • Dimensions: 18 x 11.1 x 10.4" (457 x 282 x 264 mm)
  • Weight: 18.5 Lbs. (8.4 kg)

  • Model: ZX190
    Manufacturer: Electro Voice
