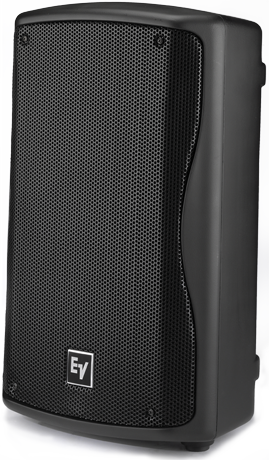

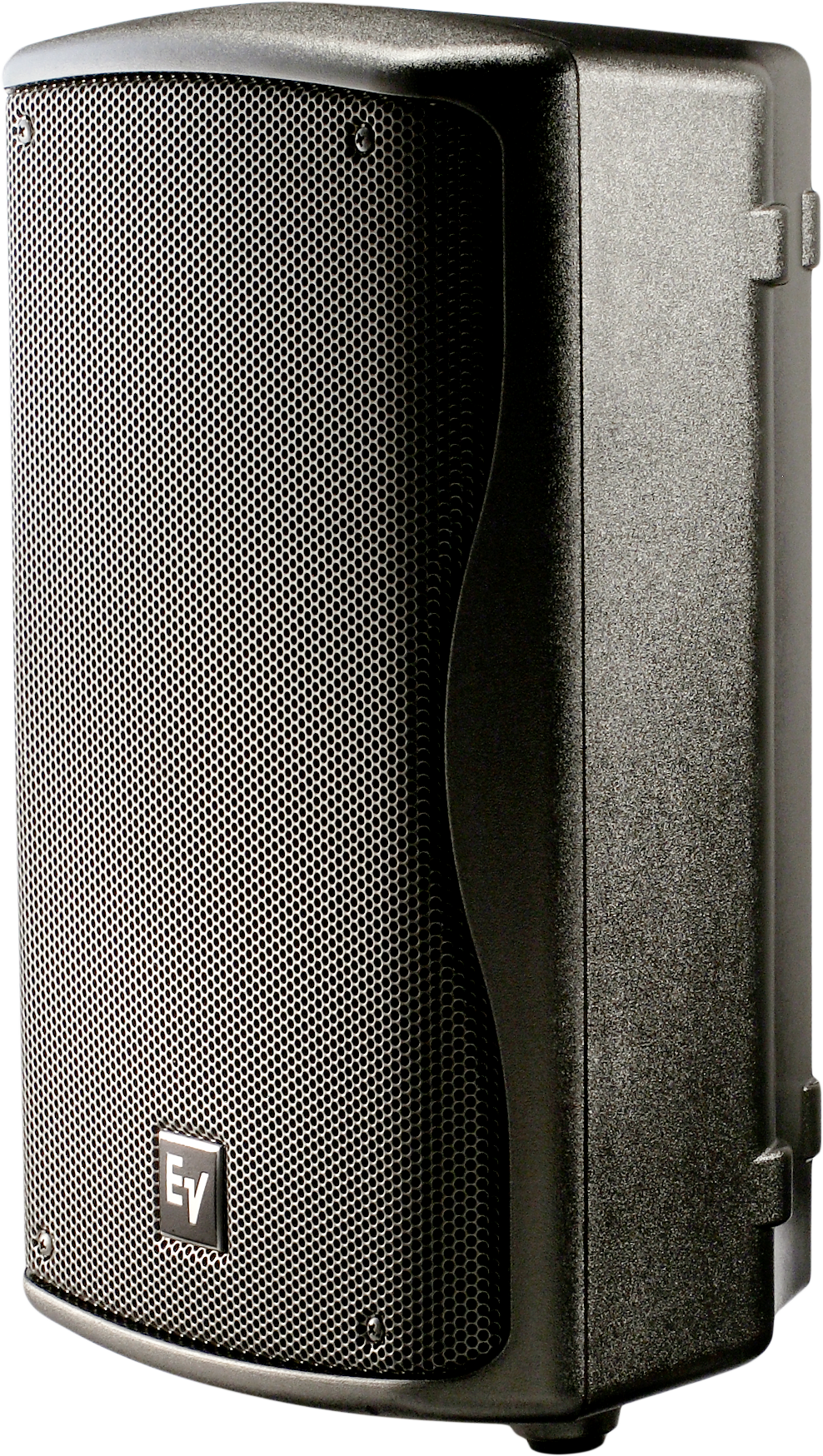

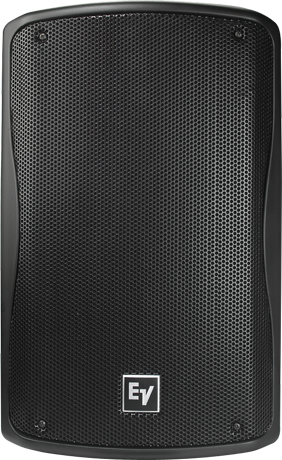

Name: Electro-Voice ZX1-90 – 8" 2‑way passive full‑range composite loudspeaker
Brand: Electro-Voice
SKU: ZX1-90
Price: 509.00 USD
Availability: InStock

Electro-Voice ZX1-90 – 8" 2‑way passive full‑range composite loudspeaker

$509.00

$509.00 $676.00

Electro-Voice

ZX1-90 – 8" 2‑way passive full‑range composite loudspeaker

Overview

8" 2‑way passive full‑range composite loudspeaker

Highlights

✓Smooth, wide frequency response
✓Ideal for mains, fills, or monitors
✓Velocity-compensated port for exceptional LF
✓Long-excursion weather-treated EV8L woofer
✓1.25-inch DH2005 titanium HF compression driver
✓Rotatable 90º x 50º horn for flexible coverage
✓Passive crossover with full-band overload protection
✓High sensitivity, 123 dB maximum SPL

Specifications

Freq. Response¹ (-3 dB)	60 Hz - 20 kHz
Freq. Range¹ (-10 dB)	48 Hz - 20 kHz
Rec. Hipass Frequency	40 Hz
Specifications Axial Sensitivity¹	92 dB (1W/1m)
Max Calculated SPL	121 dB
Horizontal Coverage	100°
Vertical Coverage	100°
Rated System Power	200W Cont. 2, 400W Prog., 800W Peak
LF Transducer	EV8L, 8 in (203mm) Driver
HF Transducer	DH2005, 1 in. (25.4mm) Exit Compression Driver
Crossover Frequency	1.7 kHz
Nominal Impedance	8 Ohms
Minimum Impedance	6 Ohms
Connectors	Neutrik Speakon NL4
Enclosure Material	High Impact Polymer
Grille	Polyester Powder Coated, 18GA Galvanized Steel
Dim (H x W x D)	457mm x 282mm x 264mm (17.98" x 11.12" x 10.38")
Net Weight	8.4 kg (18.5 lbs)
Shipping Weight	10.2 kg (22.5 lbs)
