Features:

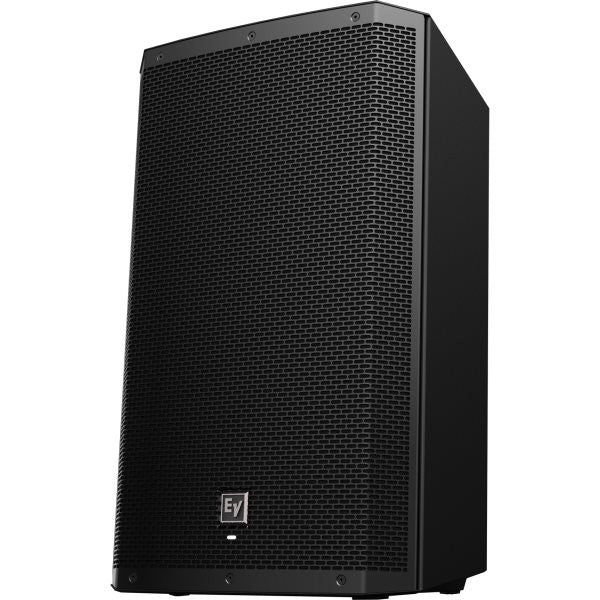

12-inch Two-Way Passive Loudspeaker. Big sound doesnt need to take up a lot of space. Ideal for main loudspeaker or monitor wedge duties, the ZLX-12 offers the ultimate combination of performance and portability – and always looks great on stage.
Features:
12" woofer for low-end punch in a compact enclosure and 1.5" high-frequency
titanium compression driver
55 Hz – 20 kHz frequency range
250 W continuous and 1000 W peak power handling
95 dB SPL sensitivity; 125 dB max SPL.8 Lbs. (14.9 kg)
Specifications:
Axial Sensitivity (SPL, 1 W @ 1 m): 95 dB
Frequency Range: 55 Hz - 20 kHz
Maximum SPL: 125 dB
Nominal Impedance: 8 O
Power Handling (Continuous / Peak): 250 / 1000 W
Frequency Response: 82 Hz - 18 kHz
Recommended High-Pass Frequency: 40 Hz
Coverage (Nominal -6 dB) H: 90 °¸
Coverage (Nominal -6 dB) V: 60 °¸
LF Transducer: EVS-12K, 300 mm (12 in) Woofer
HF Transducer: DH-1K
Crossover Frequency: 2100 Hz
Minimum Impedance: 7 O
Connector Type: Dual NL4
Enclosure Material: Polypropylene
Grill: 18 Gauge Steel with Black Powder Coat
Height: 24.02" (610 mm)
Width: 14.02" (356 mm)
Depth: 14.02" (356 mm)
Weight Net: 14.9 kg (32.85 Lbs.)
Shipping Weight: 18 kg (39.68 Lbs.)
Model: |
ZLX12 |
Manufacturer: |
Electro Voice |
