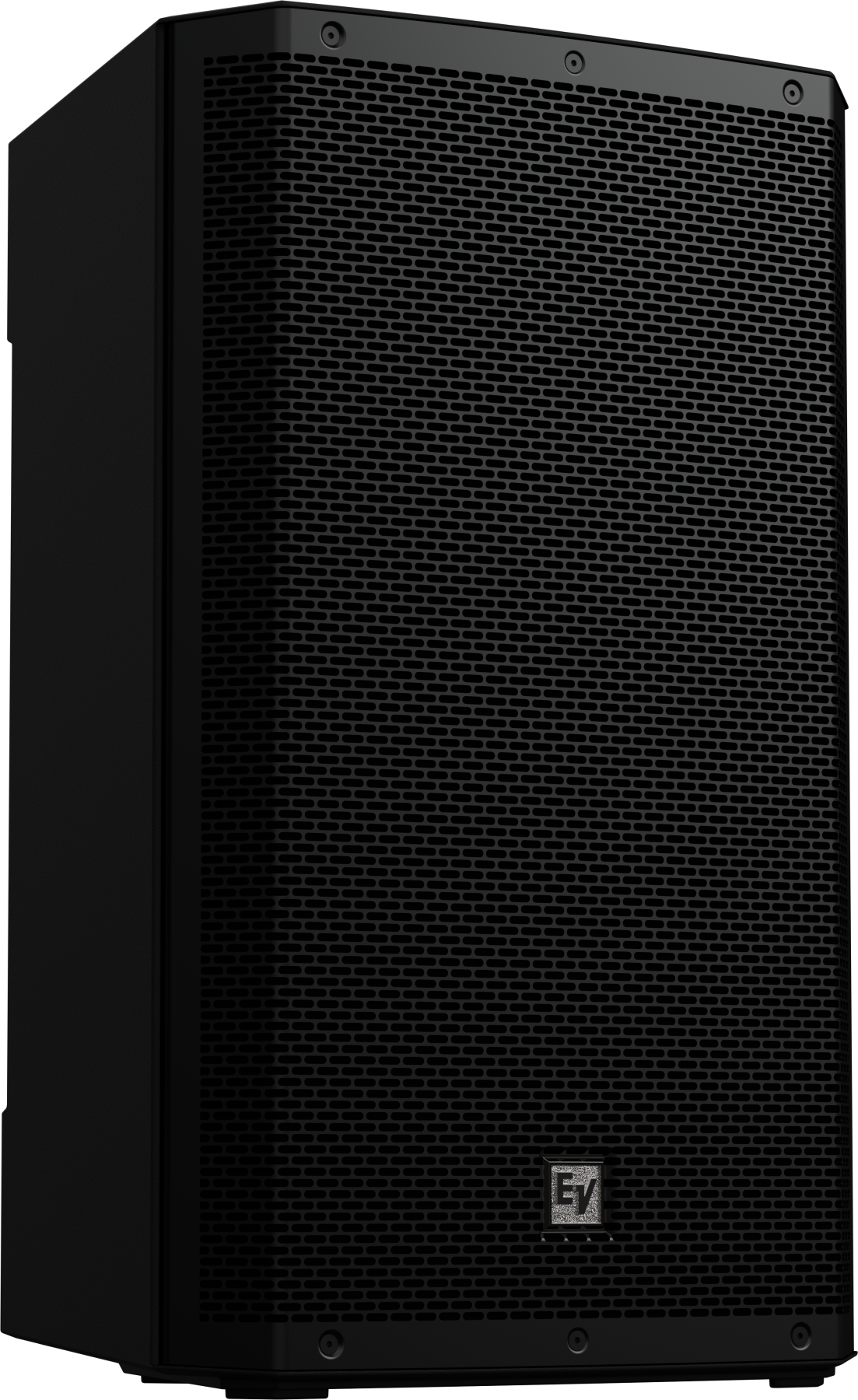

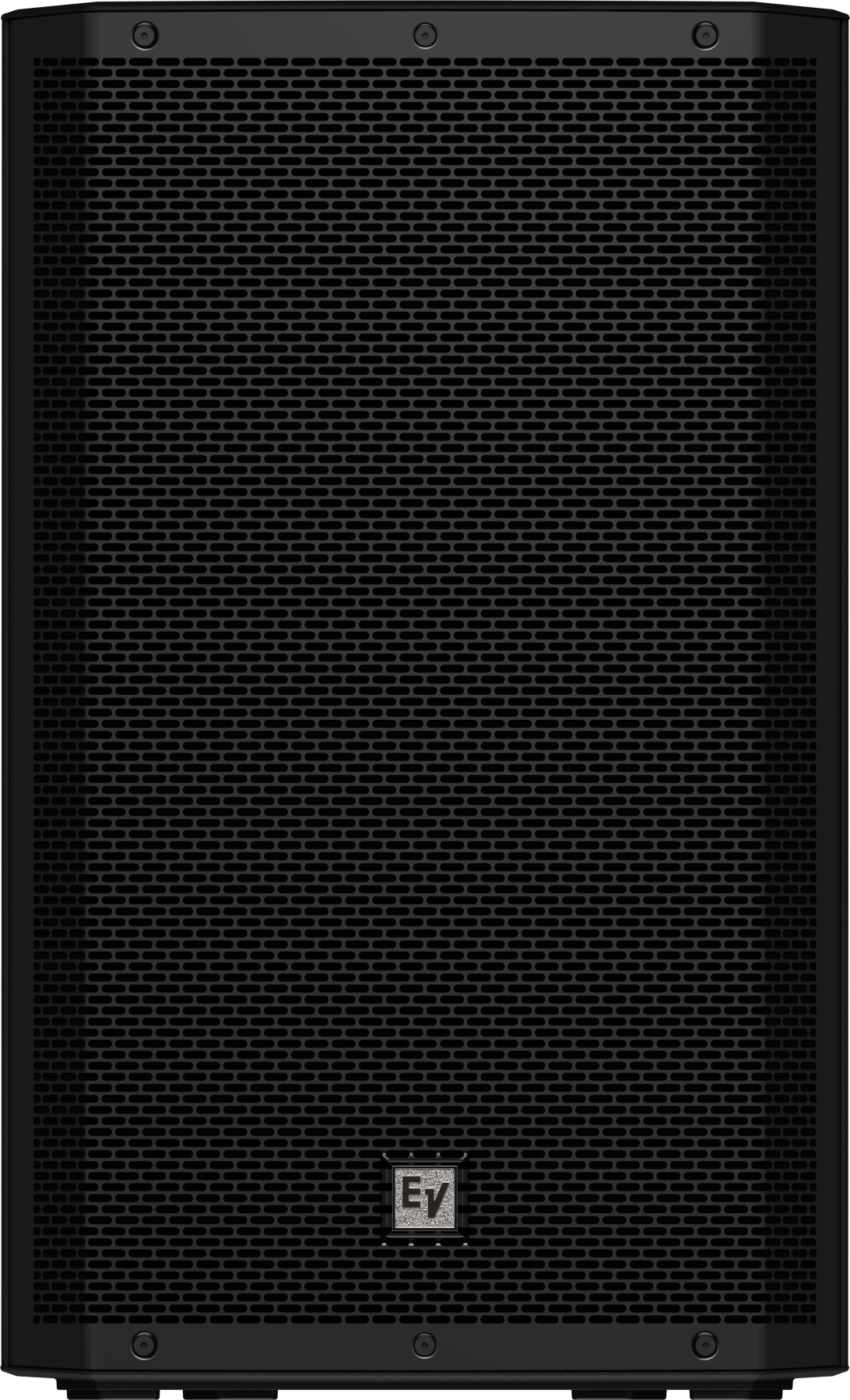

Electro-Voice ZLX-12-G2

Electro-Voice ZLX-12-G2 – The best-selling portable pa speakers in the world

$449.00
$449.00 $808.00
Skip to product information
Electro-Voice ZLX-12-G2
  • Electro-Voice ZLX-12-G2
  • Electro-Voice ZLX-12-G2
  • Electro-Voice ZLX-12-G2
  • Electro-Voice ZLX-12-G2
  • Electro-Voice ZLX-12-G2
  • Electro-Voice ZLX-12-G2
  • Electro-Voice ZLX-12-G2
  • Electro-Voice ZLX-12-G2
  • Electro-Voice ZLX-12-G2
  • Electro-Voice ZLX-12-G2
  • Electro-Voice ZLX-12-G2
  • Electro-Voice ZLX-12-G2
  • Electro-Voice ZLX-12-G2
  • Electro-Voice ZLX-12-G2
  • Electro-Voice ZLX-12-G2
  • Electro-Voice ZLX-12-G2
  • Electro-Voice ZLX-12-G2
  • Electro-Voice ZLX-12-G2
Electro-Voice ZLX-12-G2 – The best-selling portable pa speakers in the world

Electro-Voice ZLX-12-G2 – The best-selling portable pa speakers in the world

$449.00
$449.00 $808.00

Electro-Voice

ZLX-12-G2 – The best-selling portable pa speakers in the world

Overview

Passive loudspeaker

Highlights

  • ✓ZLX-G2 is the next generation of the bestselling pro-audio loudspeaker series from Electro-Voice
  • ✓Increased maximum SPL output and extended frequency response
  • ✓Robust and ergonomic design for day-to-day durability and portability
  • ✓Recommended to use with Dynacord DSP power amplifiers
  • ✓SONICUE integration - optimized speaker settings for best performance

Specifications

Frequency response (-3 dB) (Hz) 1 67 Hz – 20,000 Hz 69 Hz – 18,500 Hz 68 Hz – 18,000 Hz
Frequency range (-10 dB) (Hz) 1 55 Hz – 20,000 Hz 55 Hz – 20,000 Hz 53 Hz – 20,000 Hz
Axial sensitivity (dB SPL 1W/1m) 90 dB SPL 1W/1m 93 dB SPL 1W/1m 95 dB SPL 1W/1m
Maximum sound pressure level at a distance of 1 m (dB) 1 124 dB 125 dB 126 dB
High pass frequency (Hz) 60 Hz 48 Hz 40 Hz
Crossover frequency (kHz) 2 kHz 2 kHz 2 kHz
Coverage angle HxV (°) 90° x 60° 90° x 60° 90° x 60°
Power handling (continuous) (W) 250 W 250 W 250 W
Power handling (peak) (W) 1,000 W 1,000 W 1,000 W
Nominal impedance (Ω) 8 Ω 8 Ω 8 Ω
Specifications LF transducer WECA2088 WECA2128 WECA2158
LF transducer size (in) 8 in 12 in 15 in
LF transducer magnet material Ferrite Ferrite Ferrite
HF transducer DH-1K DH-1K DH-1K
HF transducer type Compression driver Compression driver Compression driver
HF transducer size (in) 1.4 in 1.4 in 1.4 in
HF transducer diaphragm material Titanium Titanium Titanium
Dimensions (H x W x D) (mm) 459.6 mm x 289.9 mm x 280.5 mm 621.1 mm x 356.2 mm x 356 mm 697.6 mm x 422.8 mm x 383.1 mm
Dimensions (H x W x D) (in) 18.09 in x 11.41 in x 11.04 in 24.45 in x 14.02 in x 14.01 in 27.46 in x 16.65 in x 15.08 in
Shipping dimensions (H x W x D) (mm) 500 mm x 390 mm x 350 mm 670 mm x 420 mm x 405 mm 765 mm x 490 mm x 490 mm

Product identifiers

SKU ZLX-12-G2
