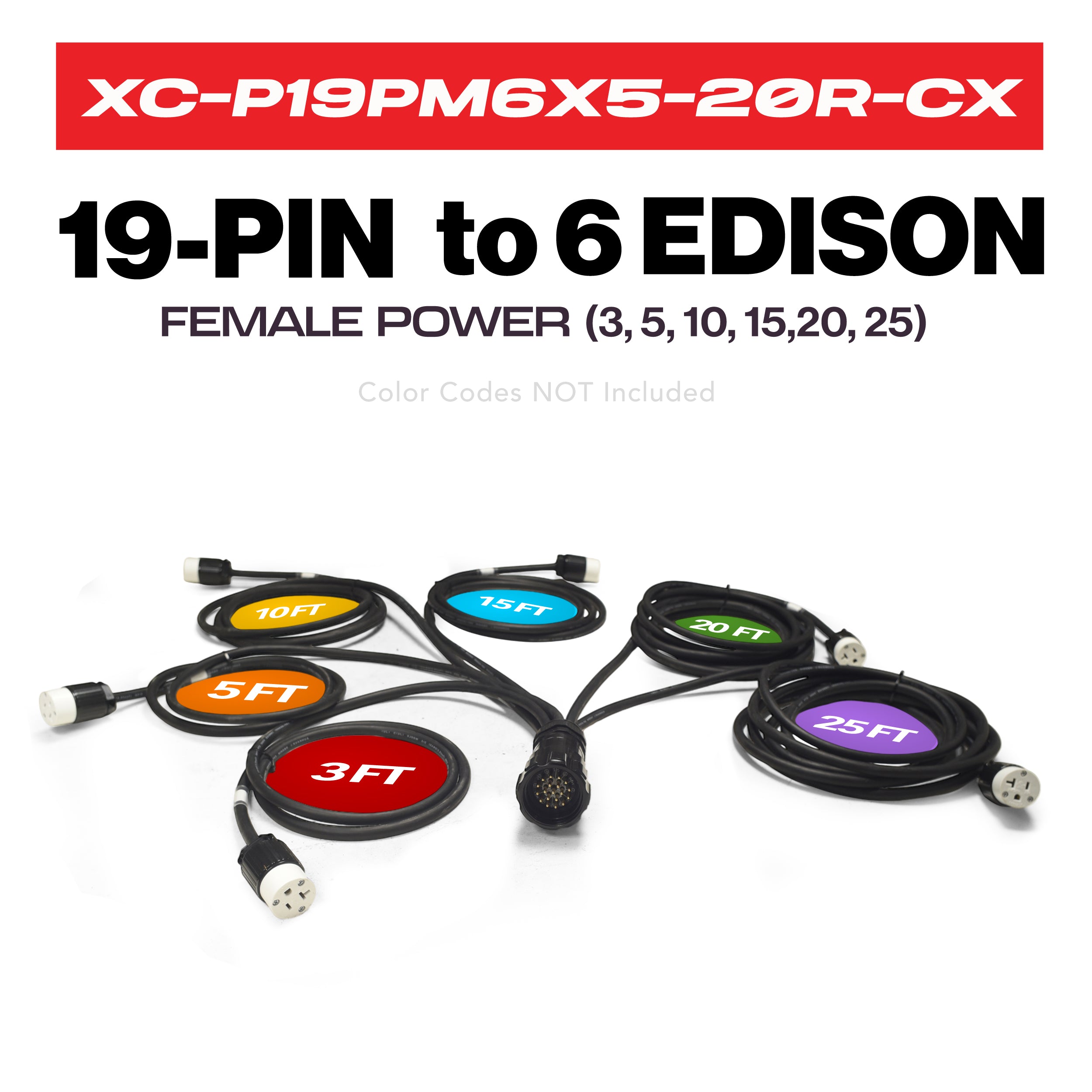

The ProX XC-P19PM6X5-20R-CX-MAX is a professional-grade 19-pin to 6× Edison female 5-20R connector in 3, 5, 10, 15, 20, 25 ft break-out extension cable designed for high-performance lighting and stage power distribution. Built using premium SJOOW 12 AWG portable power cable and a rugged 19-Pin Kup WPS-5219LM connector, this system provides reliable power distribution from a single multi-pin source to six standard Edison 5-20R outputs.

This break-out extension is ideal for powering stage lighting fixtures, LED video panels, audio equipment, and power distribution boxes in touring, rental, and fixed installation environments. Each Edison outlet extension is available in multiple lengths (3 ft, 5 ft, 10 ft, 15 ft, 20 ft, and 25 ft), allowing flexible placement of fixtures across the stage or production area.

The cable assembly features gold-plated multi-point contacts for superior conductivity and corrosion resistance, ensuring stable power delivery over repeated use. All 19-pin connectors are rated at 25A and UL standards for professional power interconnection systems. Connectors are professionally soldered to the cable for long-term durability and dependable electrical performance.

A rugged oil-resistant PVC rubber jacket protects the cable from abrasion, moisture, and job-site abuse, making this extension system well suited for concert touring, theatres, houses of worship, corporate events, and broadcast environments.

SJOOW Cable Insulation and Why It Matters?

The SJOOW rating identifies a heavy-duty portable power cable specifically designed for professional power distribution:

S – Extra-hard service rating for high-power applications
J – Junior service voltage rating, ideal for stage and event power
OO – Oil-resistant insulation and jacket for harsh environments
W – Approved for indoor and outdoor use

This construction makes SJOOW cable highly flexible, heat-resistant, and extremely durable, making it the preferred choice for touring power cables and multi-conductor stage extensions.

• Professional 19-Pin Extension Cable for stage and lighting power distribution
• Length: 3, 5, 10, 15, 20, 25 ft
• Connectors: 19-Pin Kupo WPS-5219LM
• Cable Type: SJOOW multi-conductor power cable
• Wire Gauge: 12 AWG bare copper conductors
• Reverse Planetary Lay for superior flexibility and easy coiling
• Rugged PVC Rubber Jacket with oil-resistant protection for road use
• Highly Flexible multi-conductor design for touring and rental environments
• Connectors soldered to cable for secure, long-lasting electrical integrity
• Multi-point Gold Plated Contacts
• 19 Pin connectors are all rated 25A
• 12/3 CU Black Flexible Portable Power SJOOW Cord
• Ideal for Lighting, LED Video Panels, Stage Power, Sound, Power Boxes, and Power Extension runs
• Built for Production Companies, Rental Houses, Touring Professionals, and Fixed Installations
