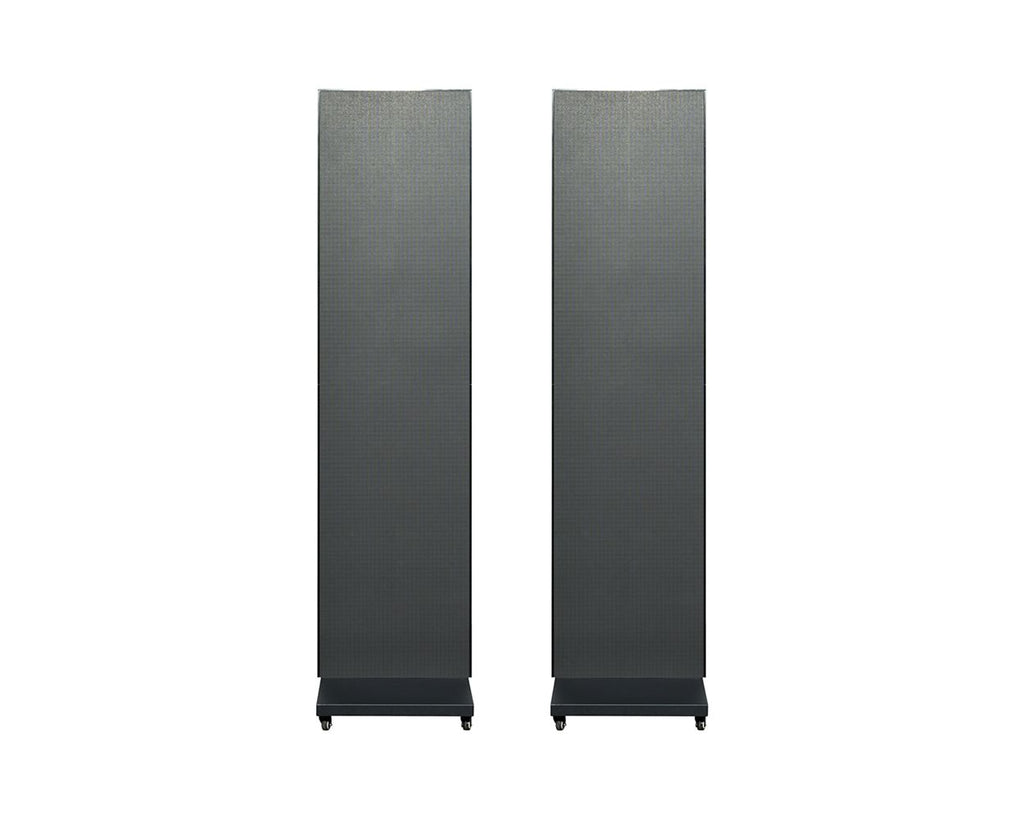

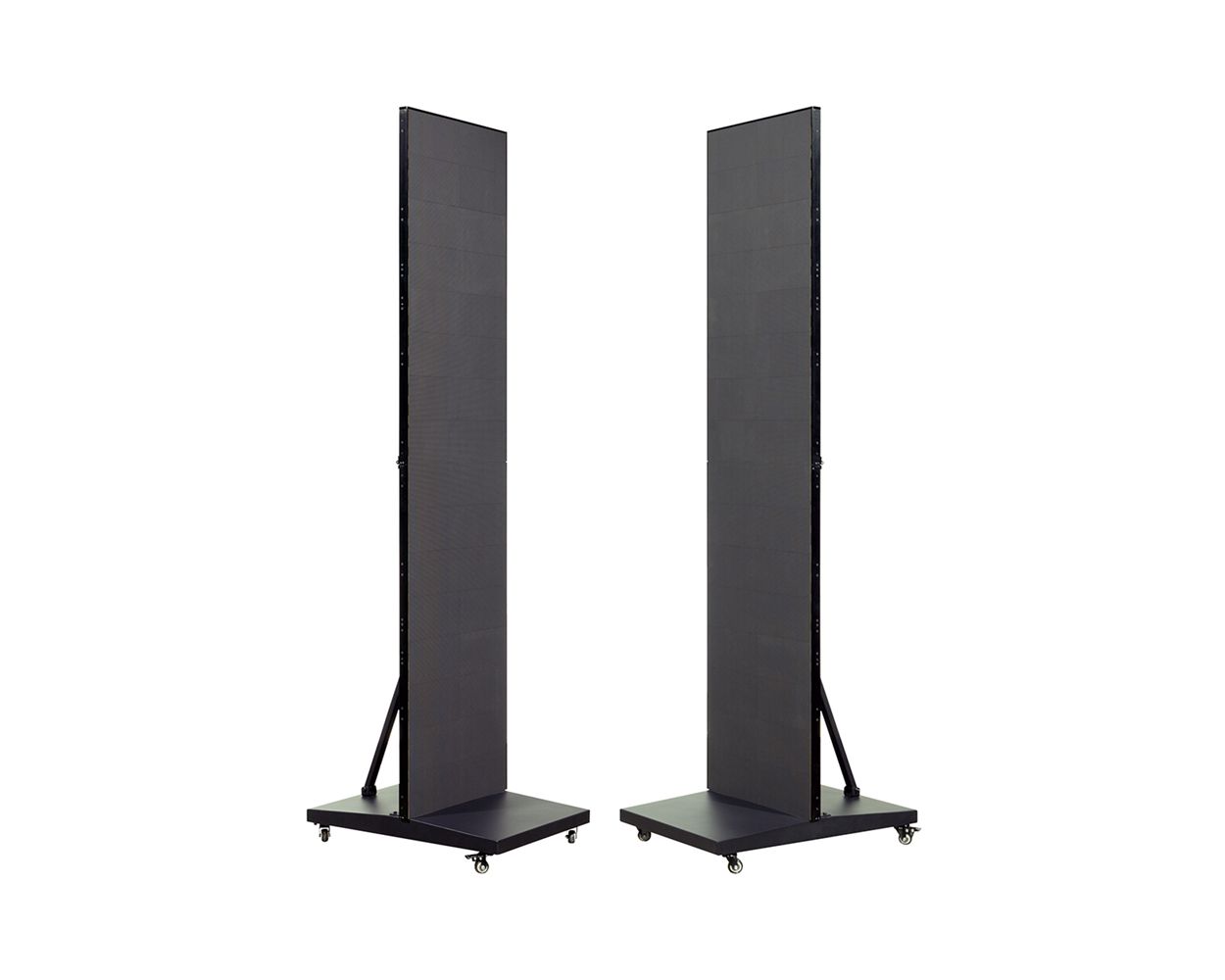

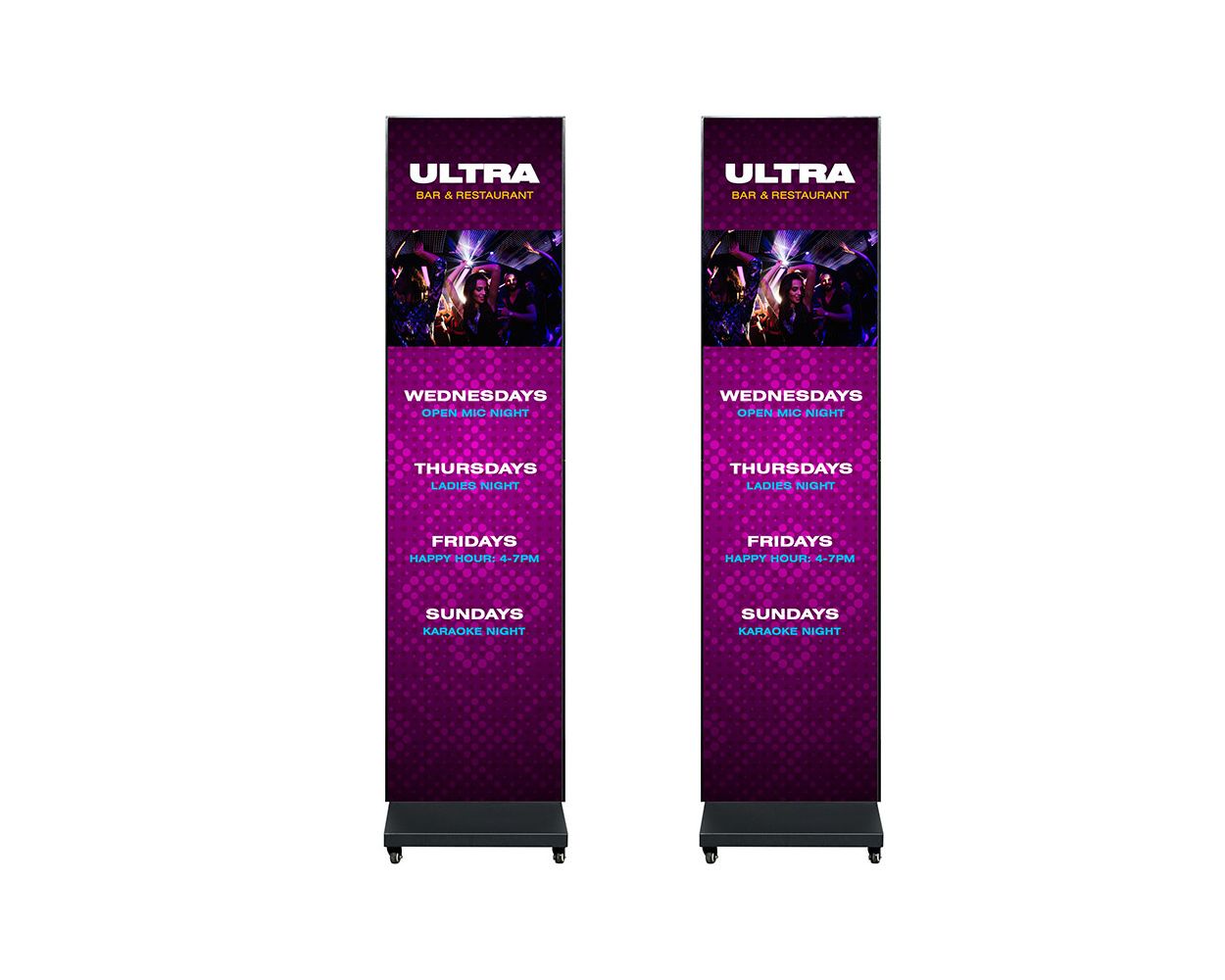

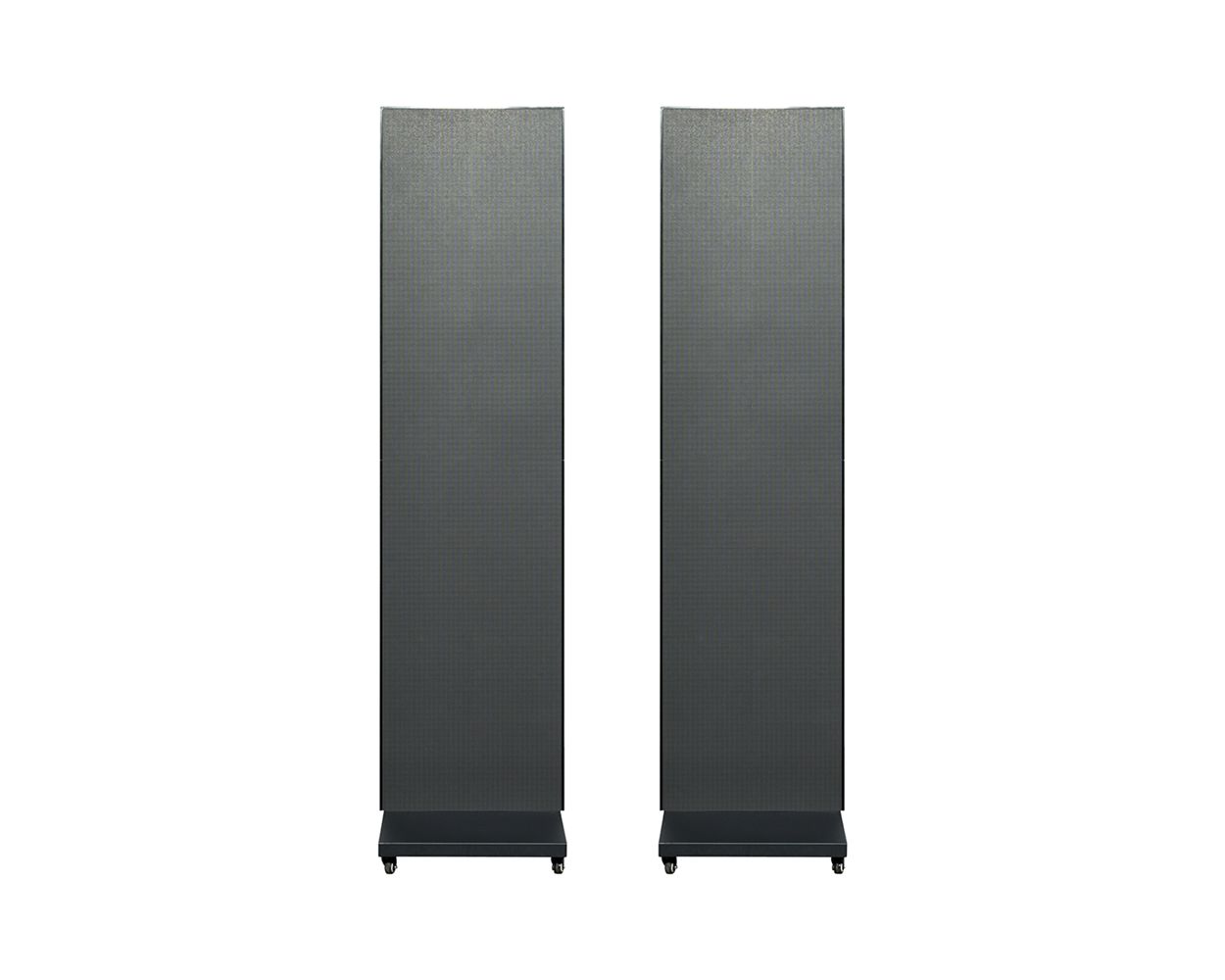

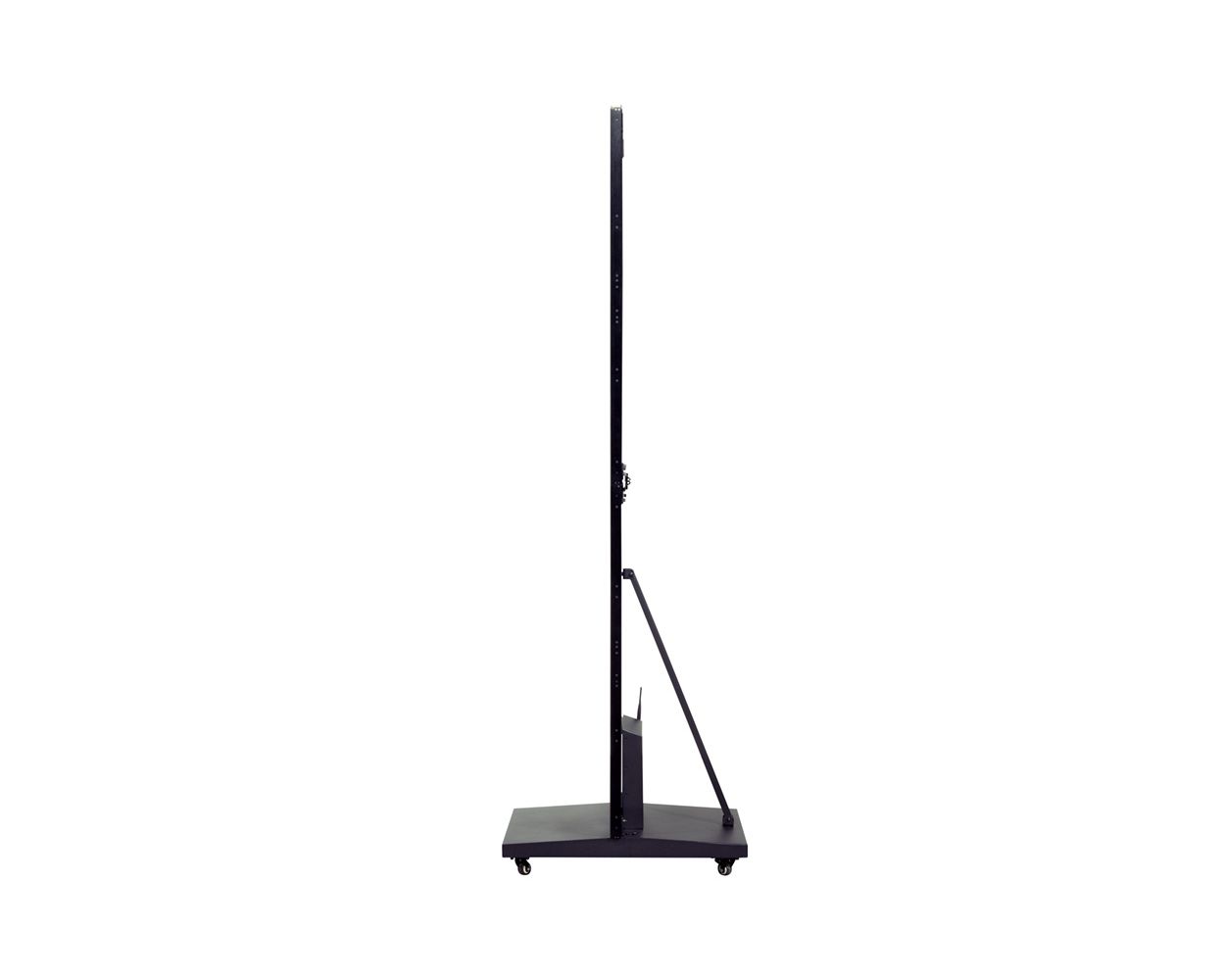

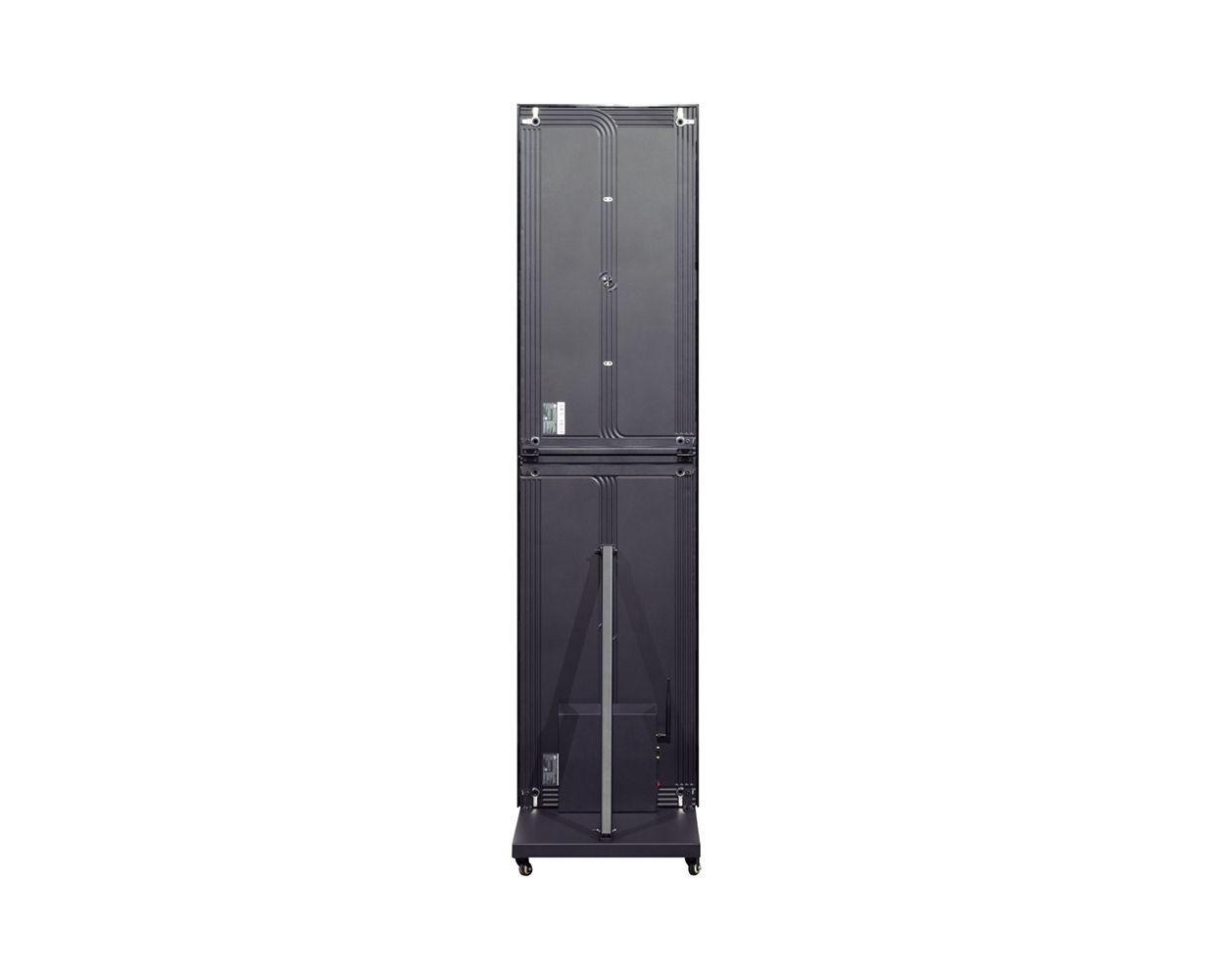

The ADJ Lighting WMS2 Media Sys DC is a versatile LED display solution built for maximum visual impact. It includes two WMS2 Media Systems on rolling bases, each with a built-in Novastar processor, and a rugged flight case that securely transports both systems. These systems can function independently or be linked together for an expanded display area. With a 2.6mm pixel pitch, vibrant visuals, and an effortless setup, it's perfect for retail, events, and dynamic digital signage applications.

Specifications

Specifications:

• Pixel Pitch (mm): 2.6
• Pixel Density (dot/m2): 147,456
• LED sealing Type: SMD1515
• Module Size (mm x mm): 250 x 250mm
• Module Resolution (PX x PX): 96 x 96 Dots
• Panel Resolution (PX x PX): 384 x 192
• Average Life (Hours): 50,000

Features:

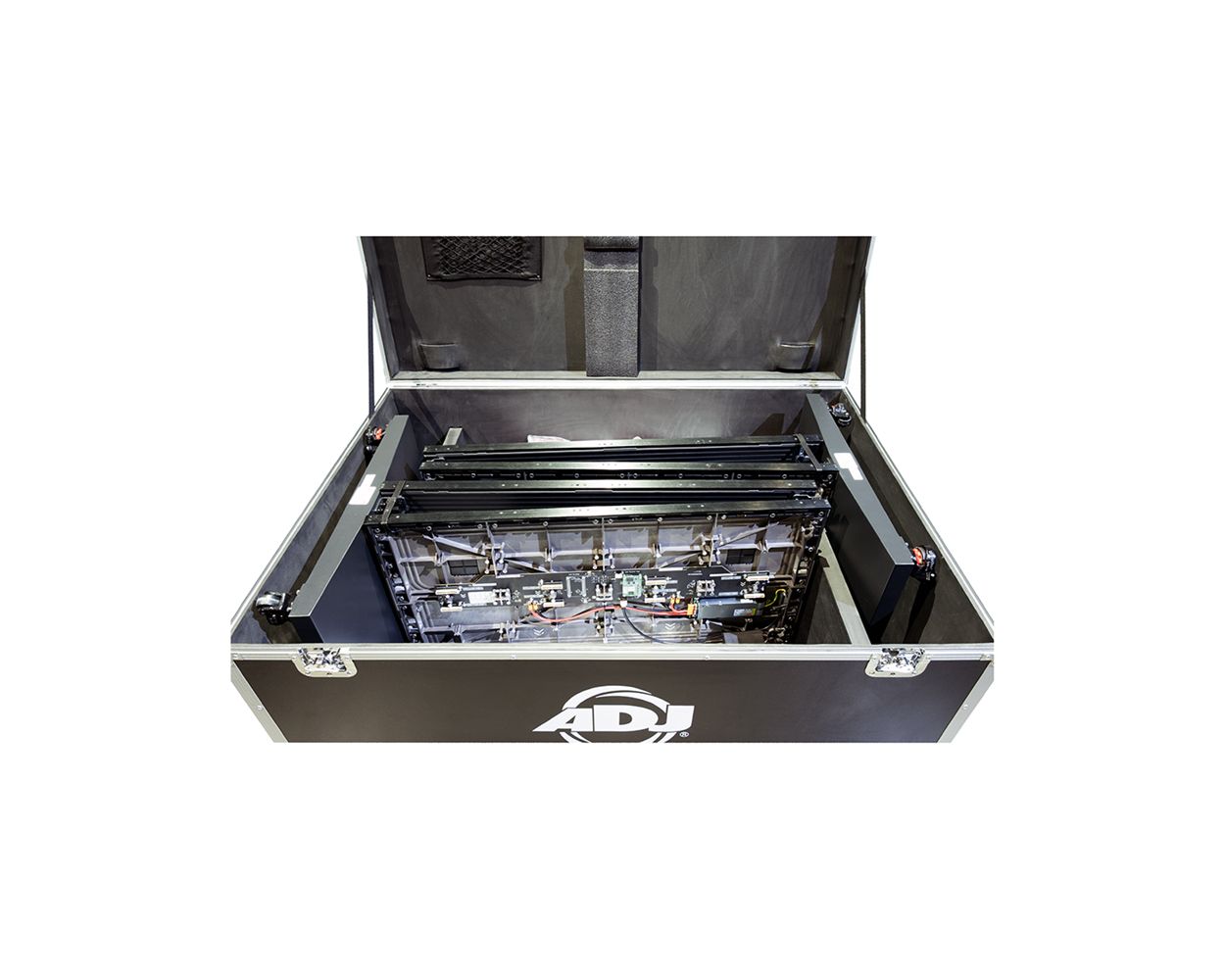

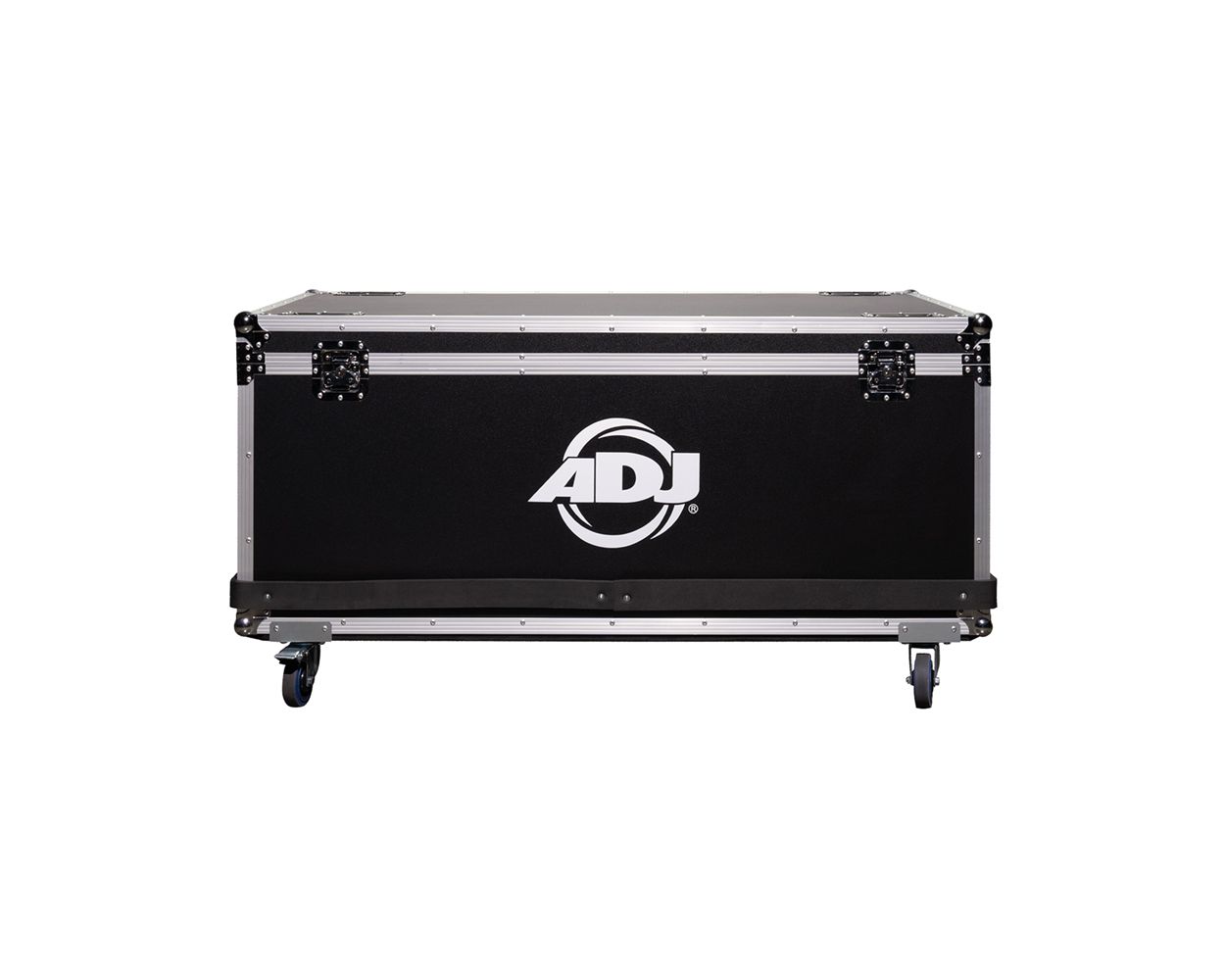

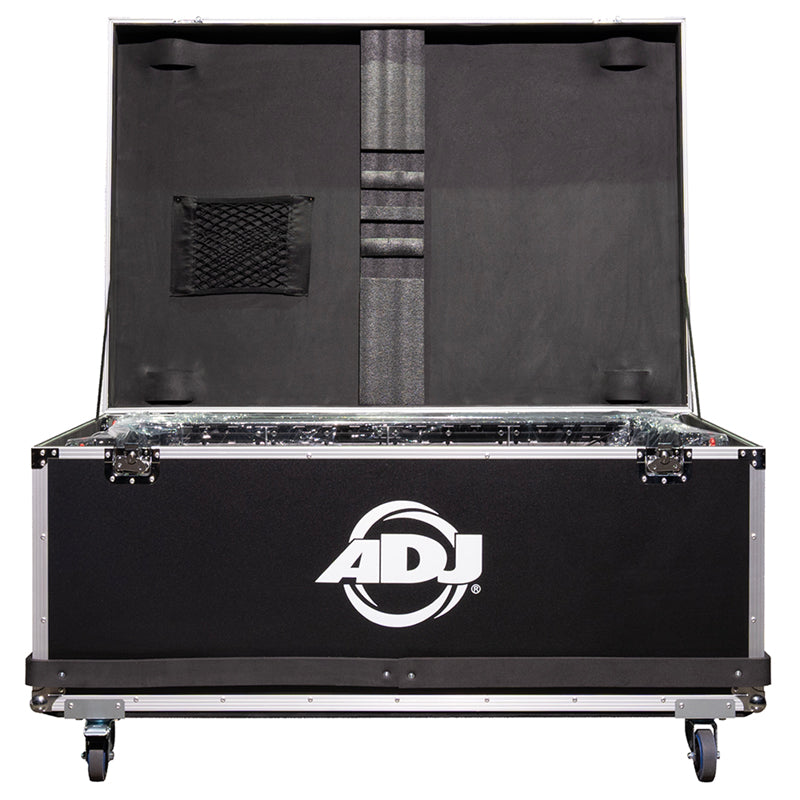

• Transport: Dual System Flight Case
• Two WMS2 Media Systems

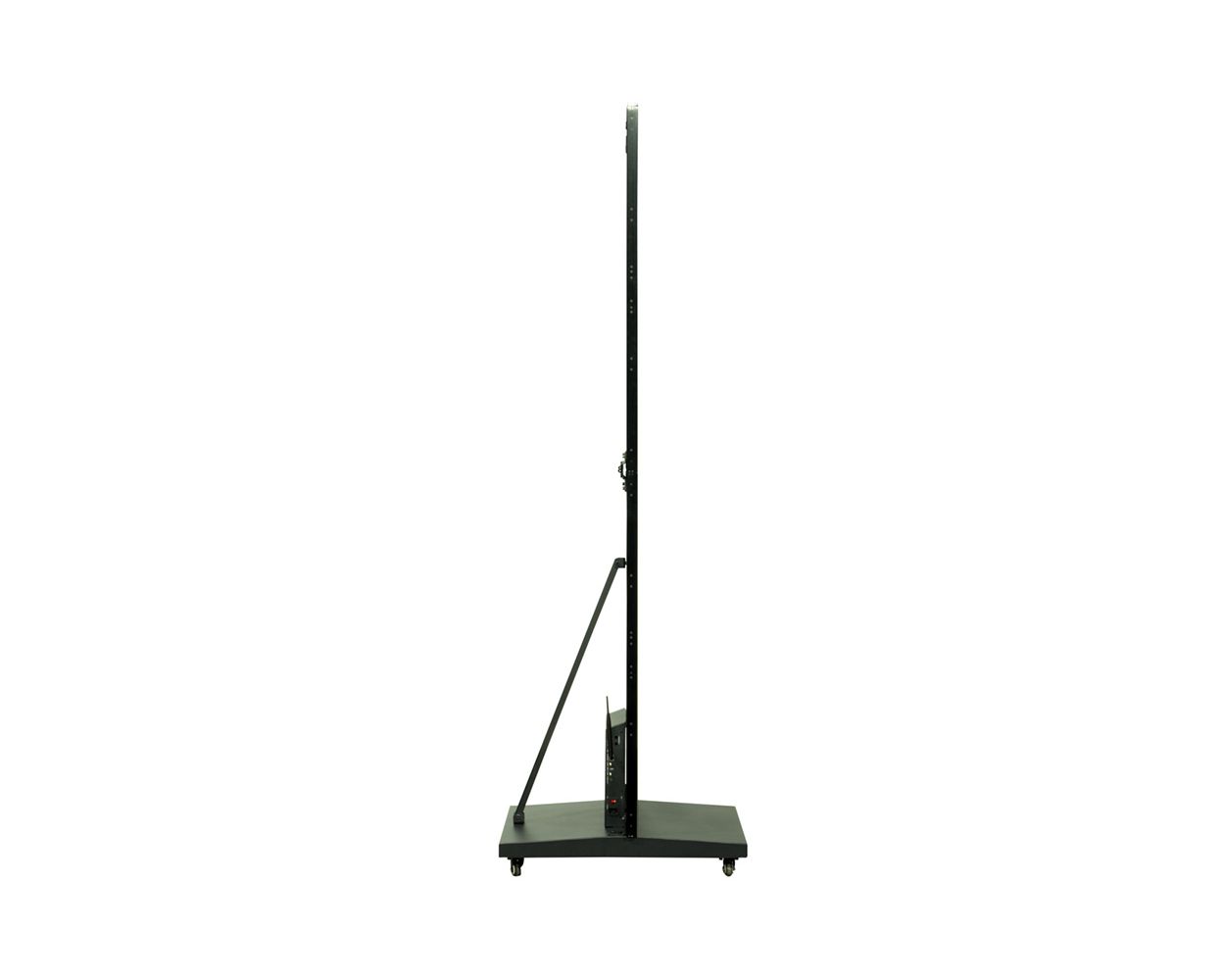

• Installation Method: Roll and Set
• Maintenance: Front
• Configuration*: CFD455, 3840Hz.

Optical Ratings:

• Brightness (cd/m2): 700-800nits
• Horizontal Viewing Angle (Deg): 160
• Vertical Viewing Angle (Deg): 140
• Grey Scale (Bit): ≥14
• Refresh Rate (Hz): 3840

Power Supply:

• Input Voltage (V): 100-240VAC
• Max Power Dissipation (W/m²): 520 (Per System)
• Average Power consumption (W/m²): 180 (Per System)

Control System:

• Receiving Card in WMS2 Panels: Novastar A8s-N

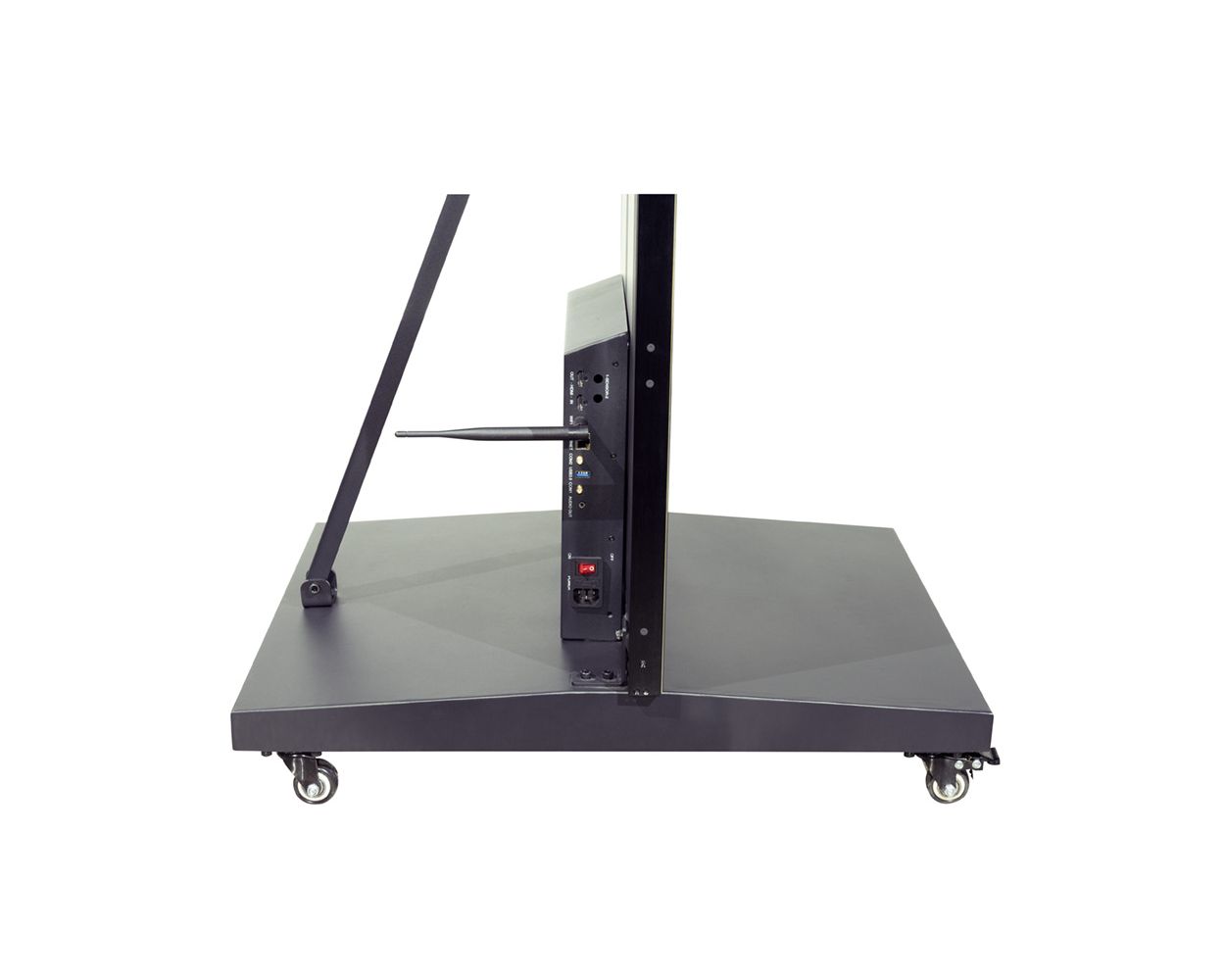

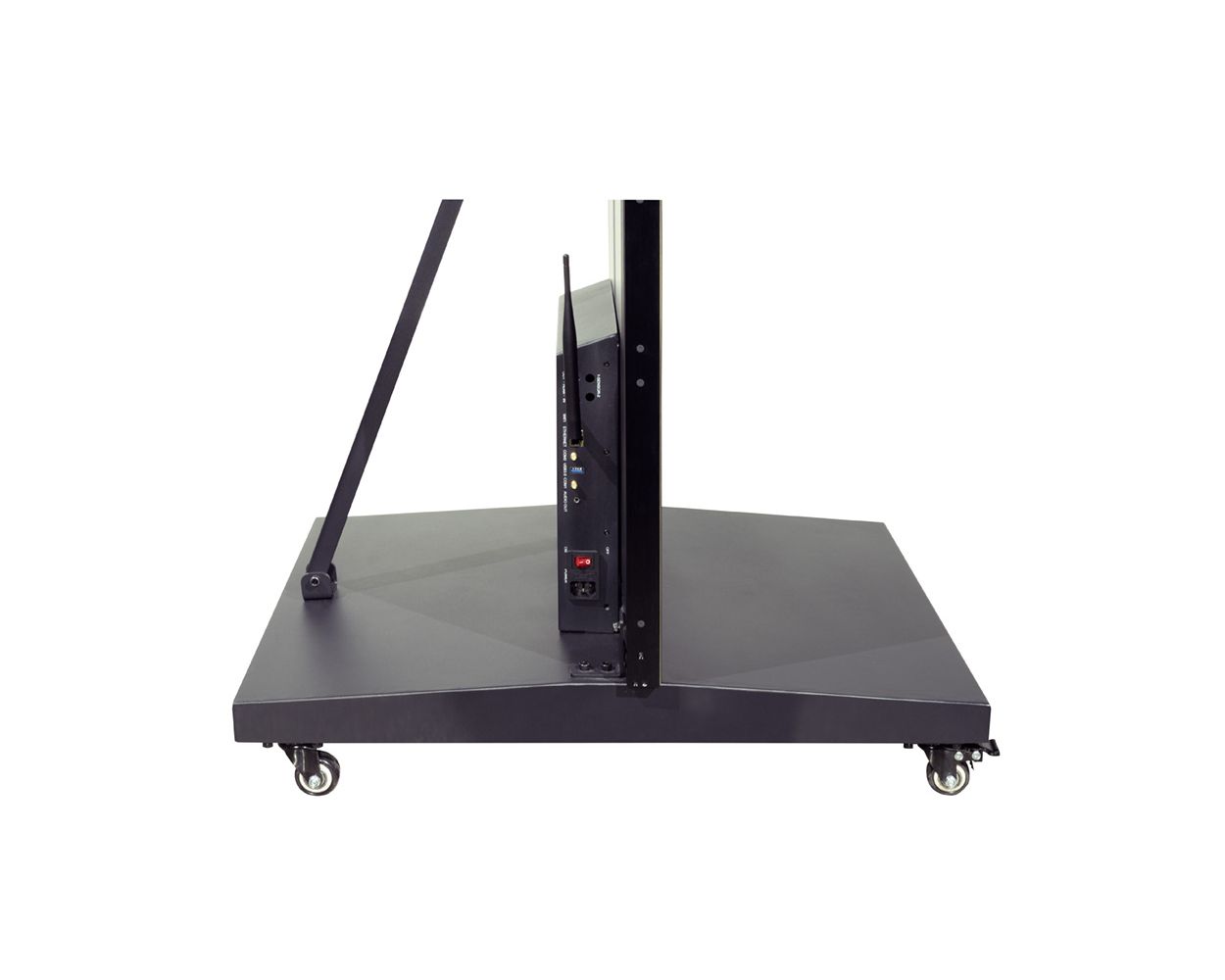

• Processor: Novastar TB50 (One in each system)

Environmental:

• Working Environment: Indoor
• IP Rating: IP20
• Working Temperature (℃):-20~ +40
• Work humidity (RH): 10%~90%
• Storage temperature range:-40~ +80
• Operation humidity (RH):10%~90%

Weight / Dimensions:

• Flight Case Dimensions (LxWxH): 51" x 37" x 27.25" (1290 x 934 x 689.52mm)
• System Dimensions (WxH): 19.75" x 84.75" (500 x 2150mm)
• LED Panel Thickness: 1.32" (33.4mm)
• System Weight (In Flight Case): 265lbs. (120kg)

Approvals:

• Certificates: WMS2 LED Panels are ETL Certified

Optional Accessories:

• EVSVAC (Vacuum Tool for EVS WMS Series Module Removal)

ADJ strongly recommends that every customer owns this tool- especially if the display will be collapsed for storage or transport.

Specifications are subject to change without notice.
