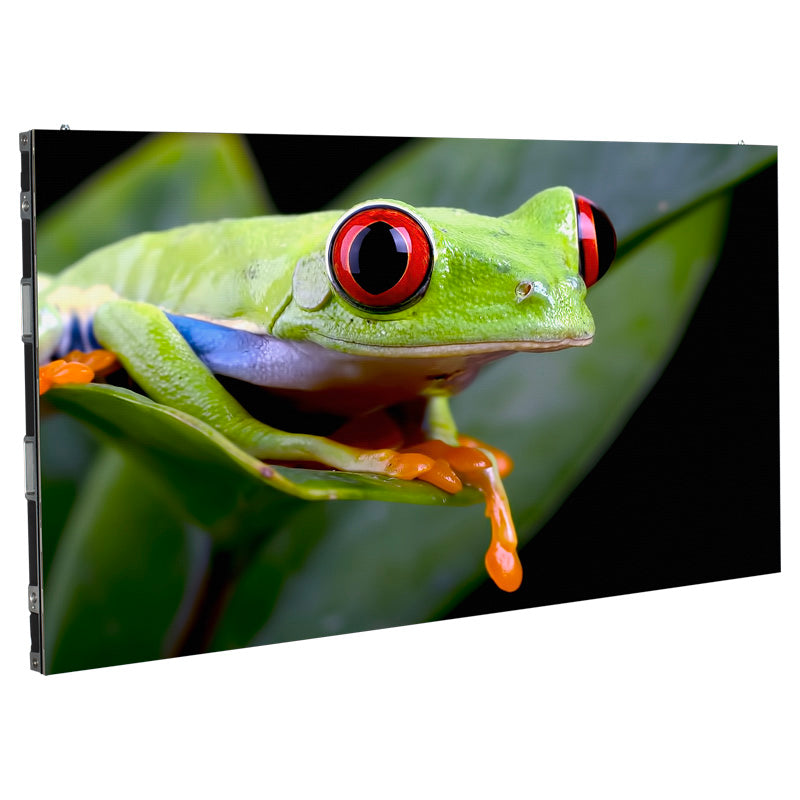

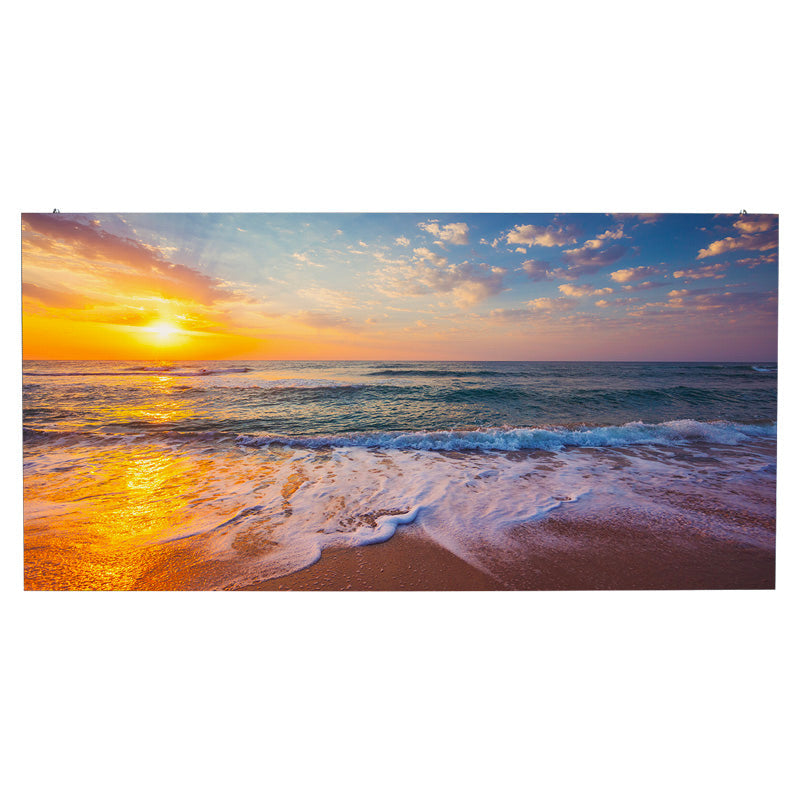

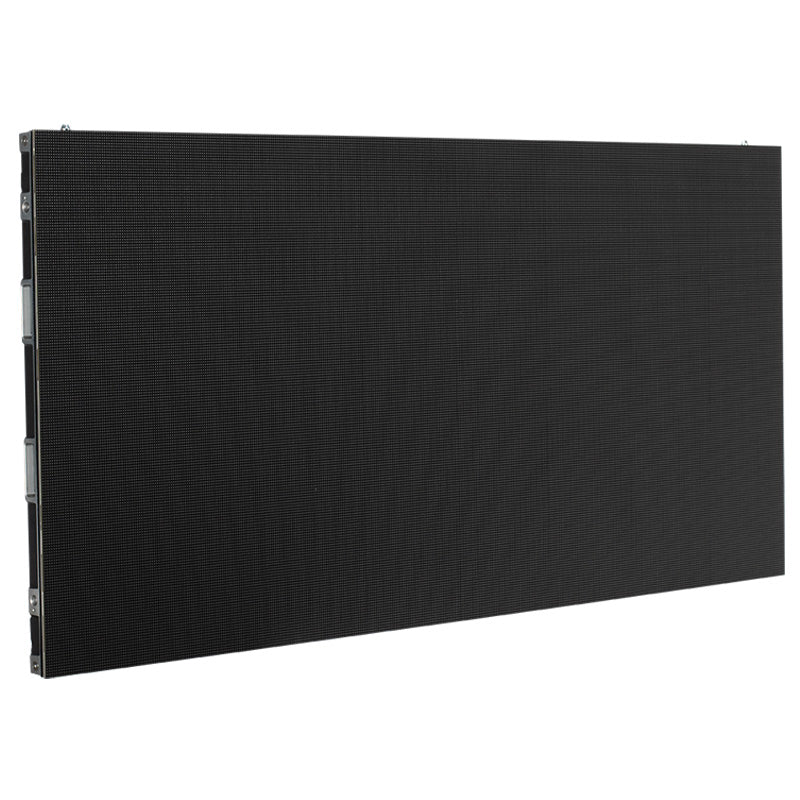

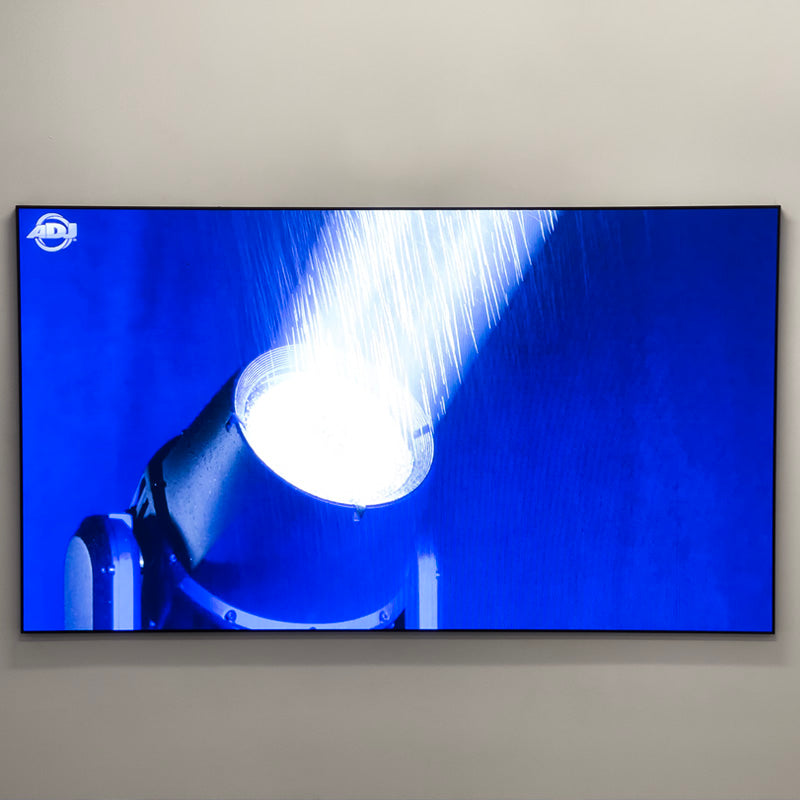

Ideal for integration projects of all types, the WMS2 is one of ADJ’s highest resolution video panel to date. WMS2 boasts a 2.6mm pixel pitch delivering unparalleled vibrance and clarity with a pixel density of 147,456/m2 and a brightness of 800 NITS. WMS2 is wall mountable, or temporary hangable, with a front serviceable design in a horizontal or vertical configuration.*

Specifications

Specifications:

• Pixel Pitch (mm): 2.6mm
• Pixel Density (dot/m2): 147,456
• LED sealing Type: SMD1515 Kinglight Cooper

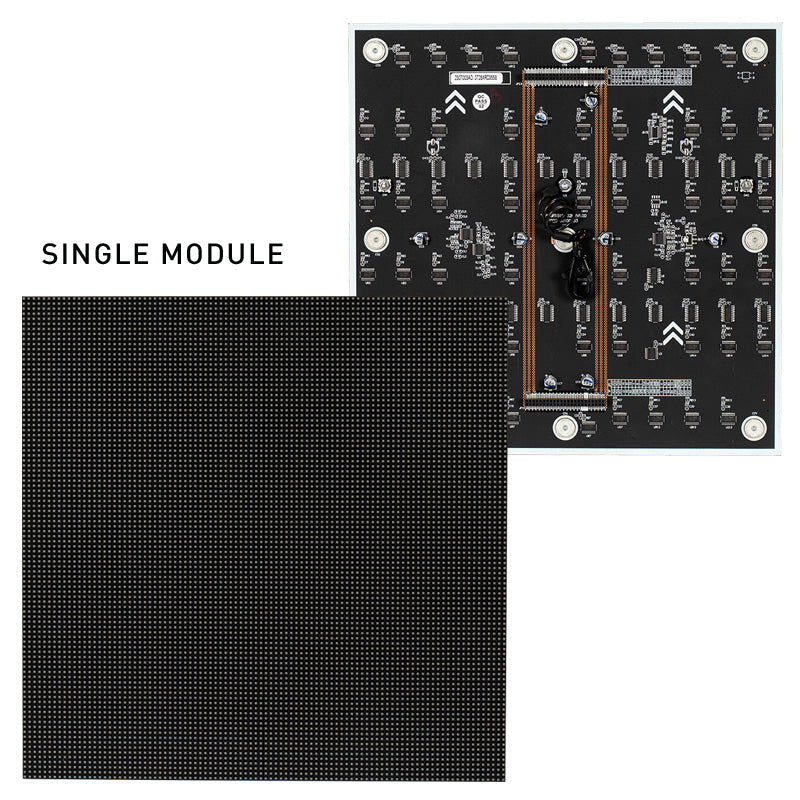

• Module Size (mm x mm): 250 x 250
• Module Resolution (PX x PX): 96 x 96
• Panel Resolution (PX x PX): 384 x 192 pixels (horizontally) or 192 x 384 (vertically).
• Average Life (Hours): 50000H

Features:

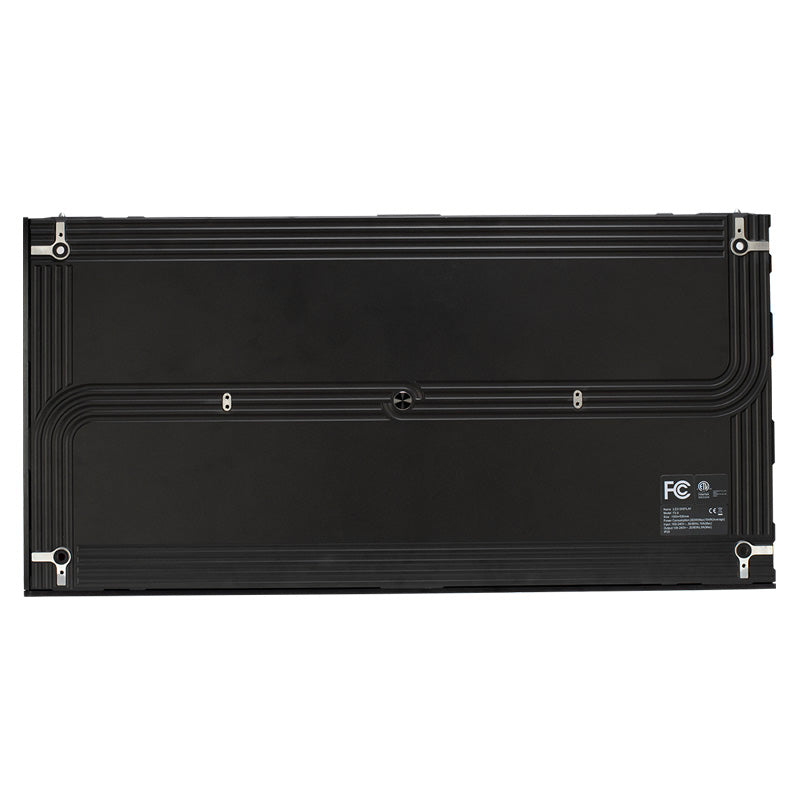

• Installation Method: Hang or Wall Mount

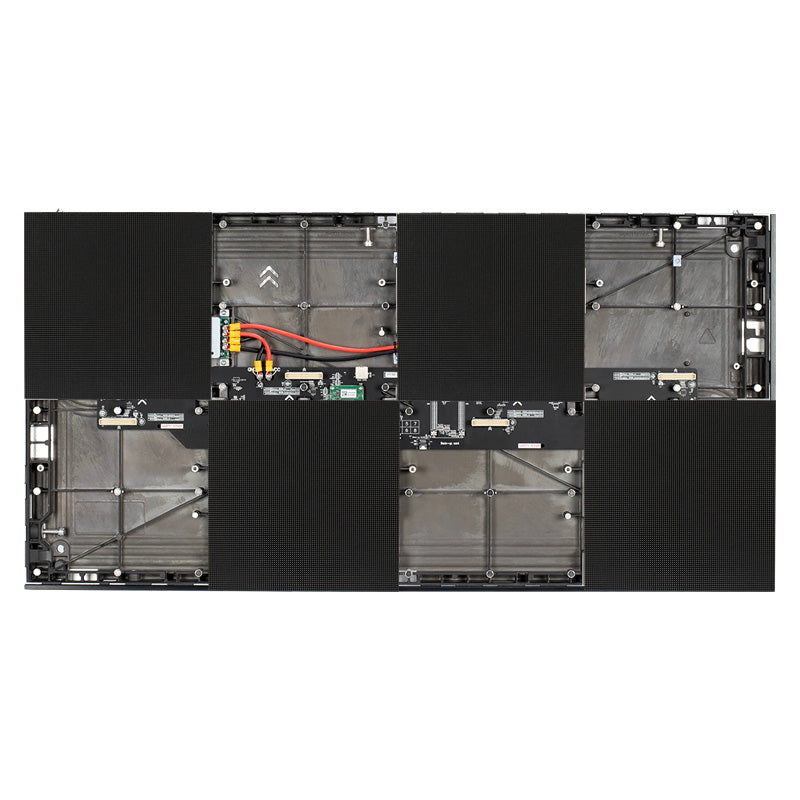

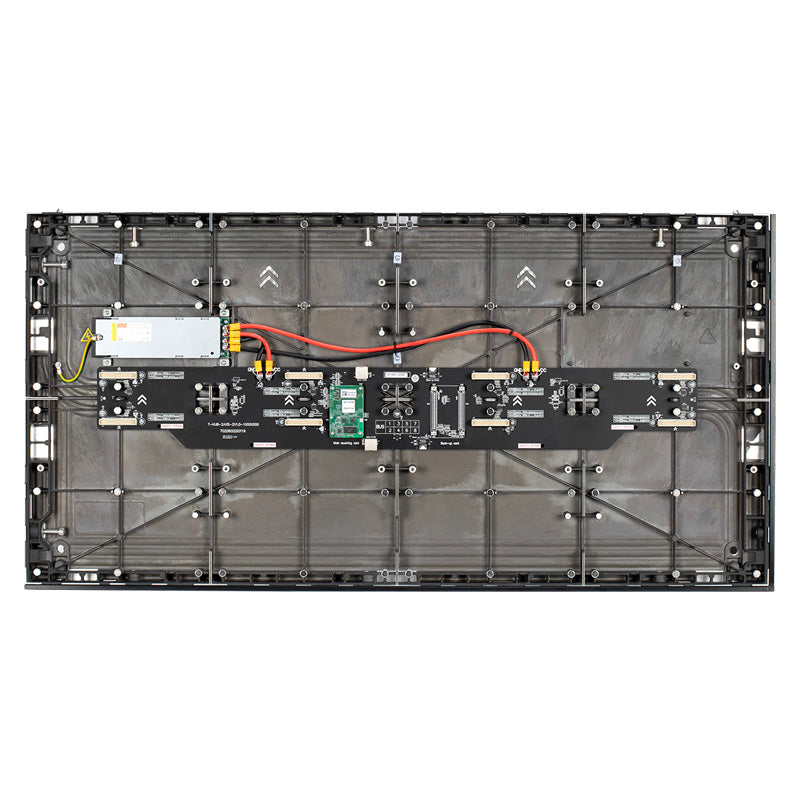

• Maintenance: Front Service
• Configuration*: Horizontal (wall mount to hang); Vertical (wall mount only)

Optical Ratings:

• Brightness (cd/m2): 800 NITS
• Horizontal Viewing Angle (Deg): 160°
• Vertical Viewing Angle (Deg): 140°
• Grey Scale (Bit): ≥14, CFD435
• Refresh Rate (Hz): 3840Hz

Power Supply:

• Input Voltage (V): 100-240VAC
• Max Power Dissipation (W/m²): 350
• Average Power consumption (W/m²): 140

Control System:

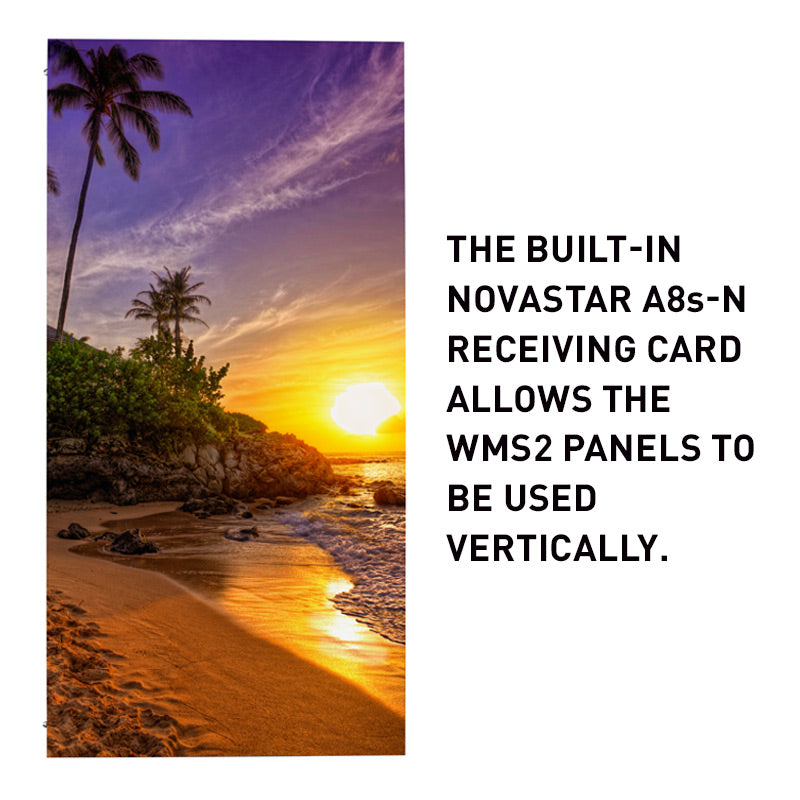

• Receiving Card: Novastar A8s-N

Environmental:

• Working Environment: Indoor
• Waterproof Level: IP20
• Working Temperature (℃): -20 ~ +40, (°F) -4 ~ 104
• Work humidity (RH): 10%~90%
• Storage temperature range: (℃) -40 ~ +80, (°F) -40 ~ 176
• Operation humidity (RH): 10%~90%

Weight / Dimensions:

• Cabinet Size (mm x mm): 39.3" x 19.6" / 1000 x 500mm
• Cabinet Weight: 21 lbs. / 9.5Kg
• Cabinet Thickness (mm): 1.3" / 33mm

Approvals:

• Certificates: ETL

Accessories:

EVSVAC

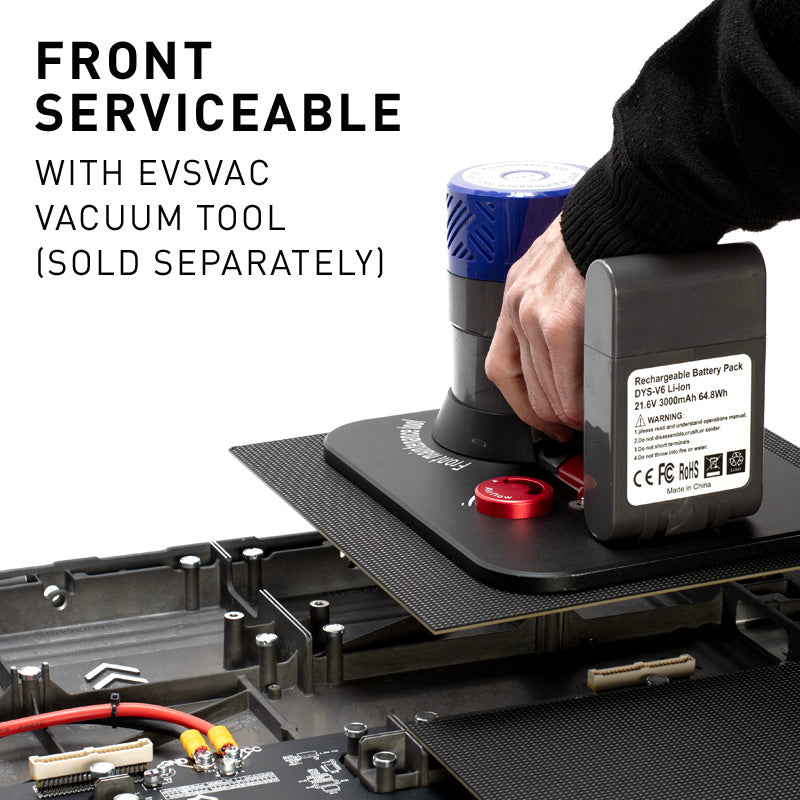

(EVSVAC) - Vacuum Tool to Remove Modules

WMSHDC

(WMS132) - Horizontal Data Cable for WMS Panel Series

WMSHPC

(WMS106) - Horizontal Power Cable for WMS Panel Series

WMSMAT

(WMS080) - WMS2 Magnet Adjustment Tool

WMSMDC32

(WMS158) - 32-foot, MainData Cable for WMS Panel Series

WMSMPC16

(WMS145) - 16.4-foot, Main Power Input Cable for WMS Panel Series

WMSRB1

(WMS015) - Free Hang, 1-Meter Rigging Bar (Max hang: 15 WMS2 panels)

WMST2X2

(WMS041) - Frame Trim for 2x2 WMS Video Wall

WMST3X3

(WMS054) - Frame Trim for 3x3 WMS Video Wall

WMST4X4

(WMS067) - Frame Trim for 4x4 WMS Video Wall

WMSVDC

(WMS119) - Vertical Data Cable for WMS Panel Series

WMSVPC

(WMS093) - Vertical Power Cable for WMS Panel Series

WMSWB1

(WMS028) - 1-Meter, Wall Mount Bracket

*Specifications are subject to change without notice.
