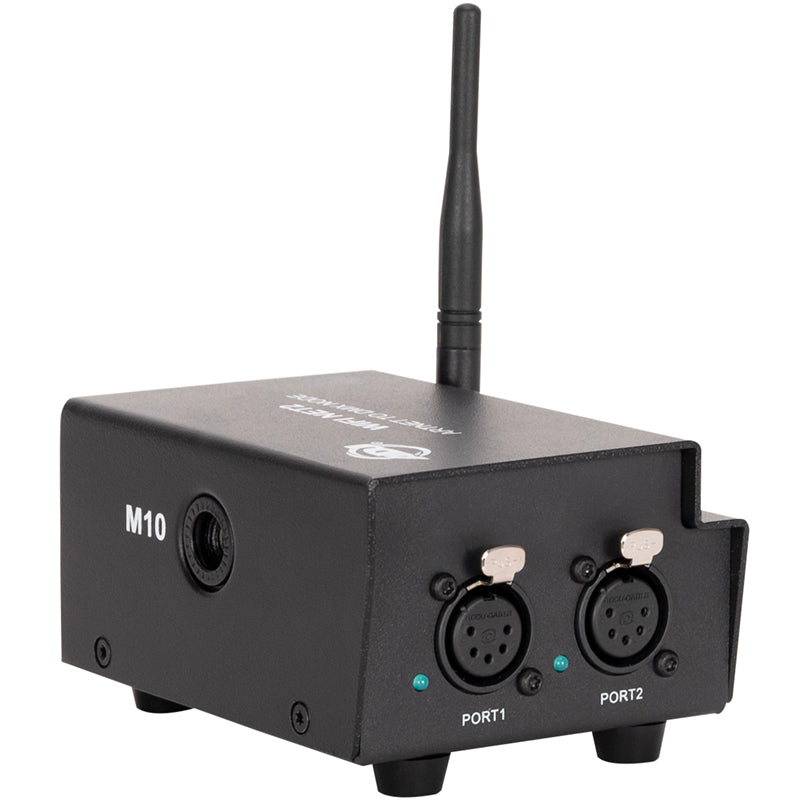

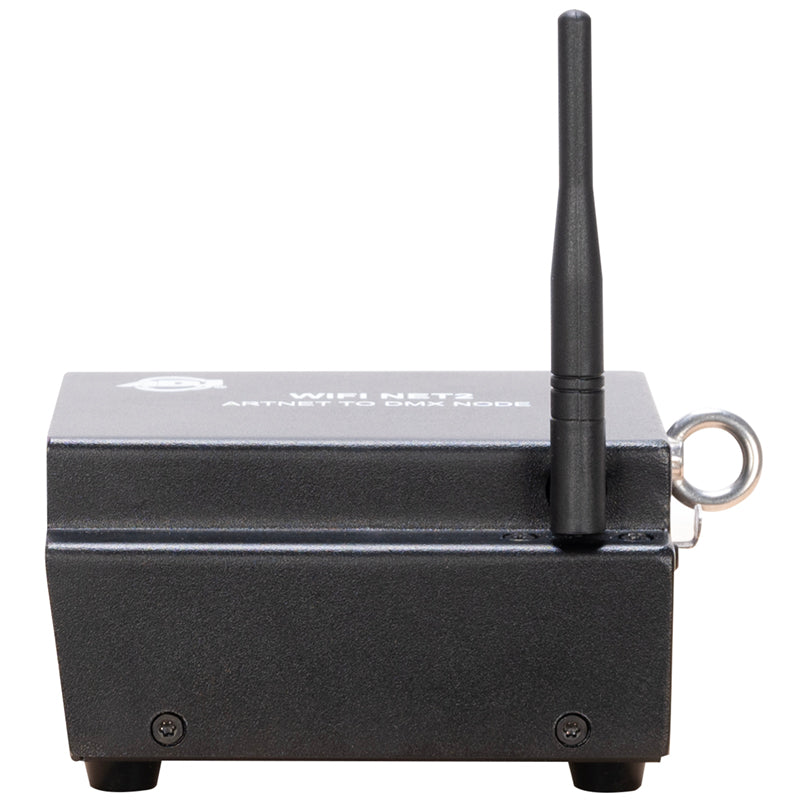

WiFi NET 2 seamlessly integrates with any standard data source commonly used in the professional lighting industry, including Art-Net or sACN, from a computer, iPad, tablet, or a DMX lighting console. By effortlessly converting and decoding all Art-Net and sACN signals, WiFi NET 2 ensures compatibility and versatility, delivering DMX 512 signals through two dedicated DMX outputs.

Specifications

Features:

Art-Net / sACN / DMX, 2 Port Node

2.4G Wifi

Line Voltage or PoE powered

DHCP or Static IP Address

Configurable from web browser

Protocols:

DMX512

RDM

Art-Net

sACN

Physical:

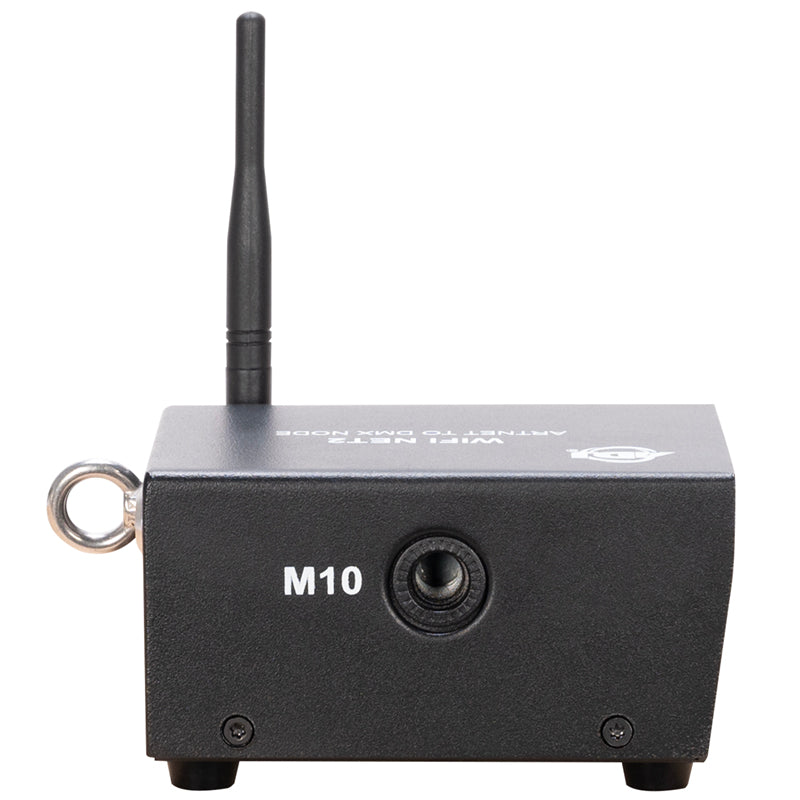

M10 Thread for clamp / rigging

Safety eyelet

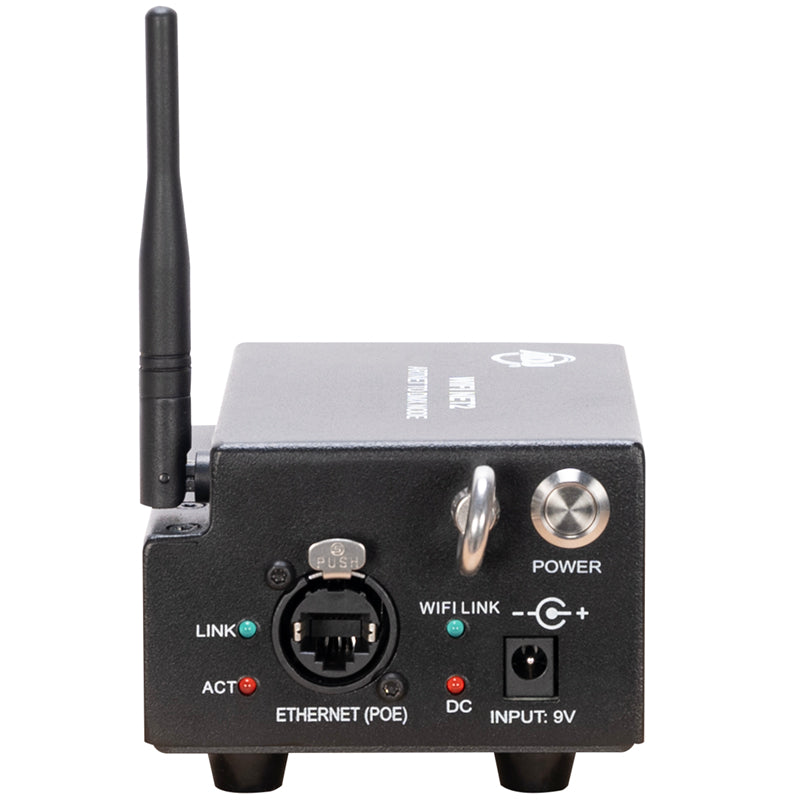

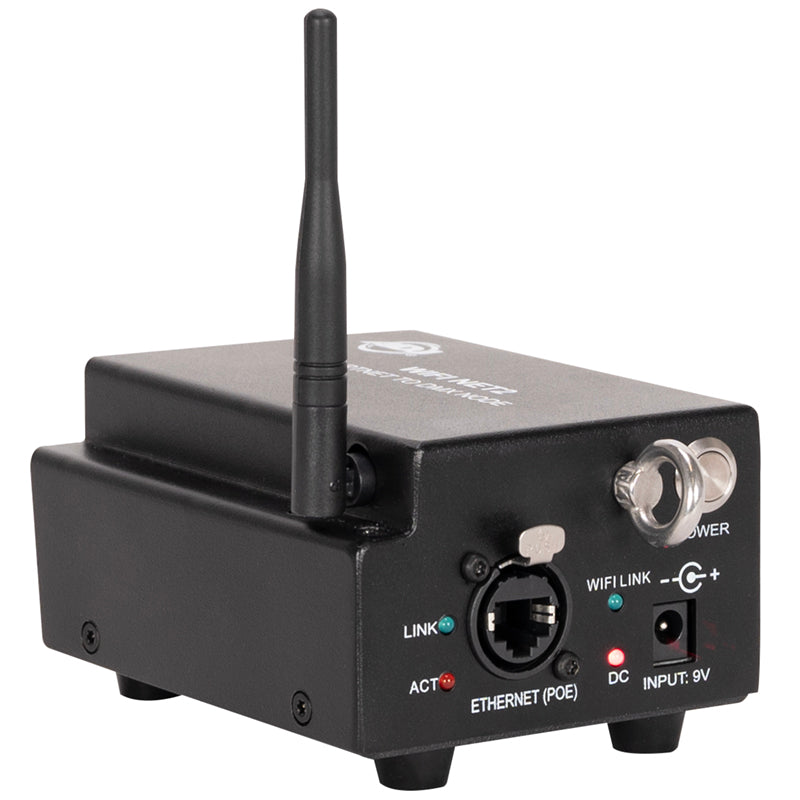

1x Indoor RJ45 Input

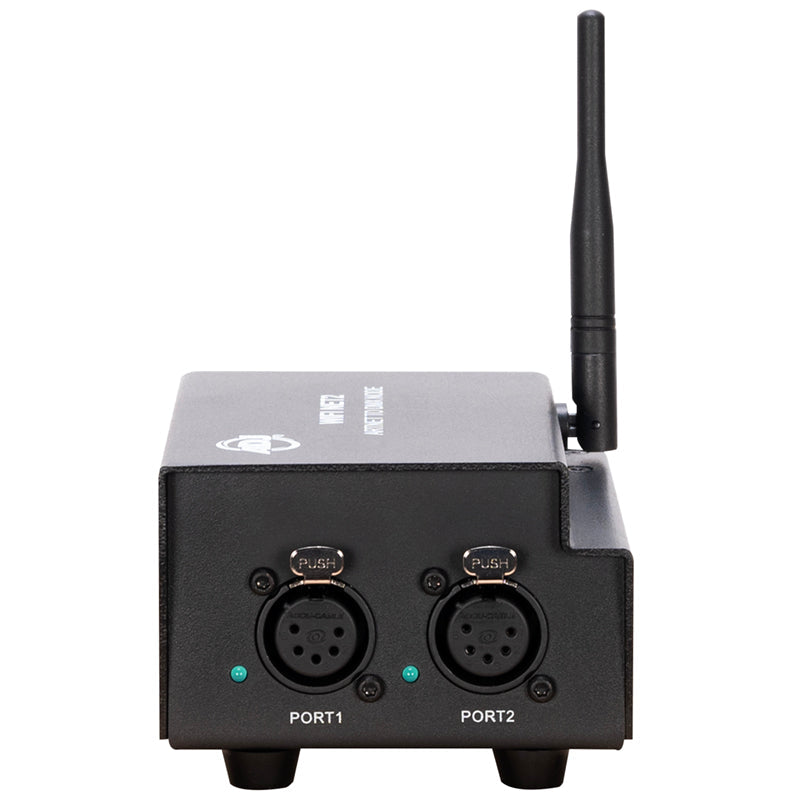

2x 5-pin XLR Outputs

Dimensions Weight:

Length: 3.48" (88.50mm)

Width: 5.06" (128.55mm)

Height: 2.46" (62.5mm)

Weight: 1.23lbs. (0.56kg)

Power:

9VDC and POE

POE 802.3af

Power: DC9V-12V 300mA min.

POE Power: 15W

Power Consumption: 2W @ 120V and 2W @ 230V

Thermal:

Ambient Operational Temperature: -4°F to 104°F (-20°C to 40°C)

Humidity: <75%

Storage Temperature: 77°F (25°C)

Certifications IP Rating:

CE

cETLus (Control # 5014475)

CB

FCC

IP20

Included Accessories:

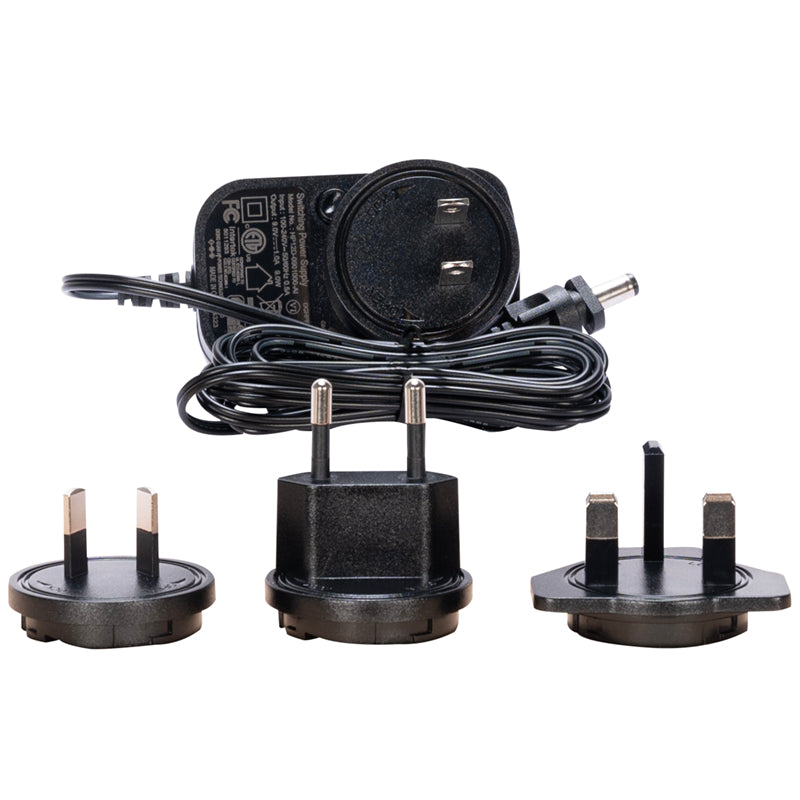

9V Power Supply

Specifications subject to change without notice.
