The VX600 is NovaStar's new all-in-one controller that integrates video processing and video control into one box. It features 6 Ethernet ports and supports video controller, fiber converter and Bypass working modes. A VX600 unit can drive up to 3.9 million pixels, with the maximum output width and height up to 10,240 pixel and 8192 pixels respectively, which is ideal for ultra-wide and ultra-high LED screens.

Specifications

Loading Capacity

3.9 million pixels

Max Width Height

Width 10,240 pixels x Height 8,192 pixels

Layers

3 Layers

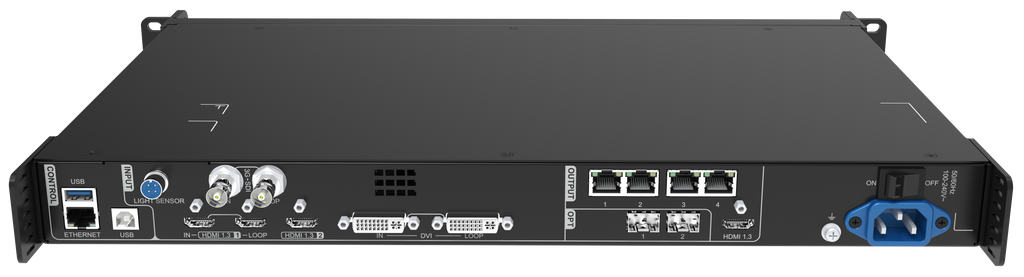

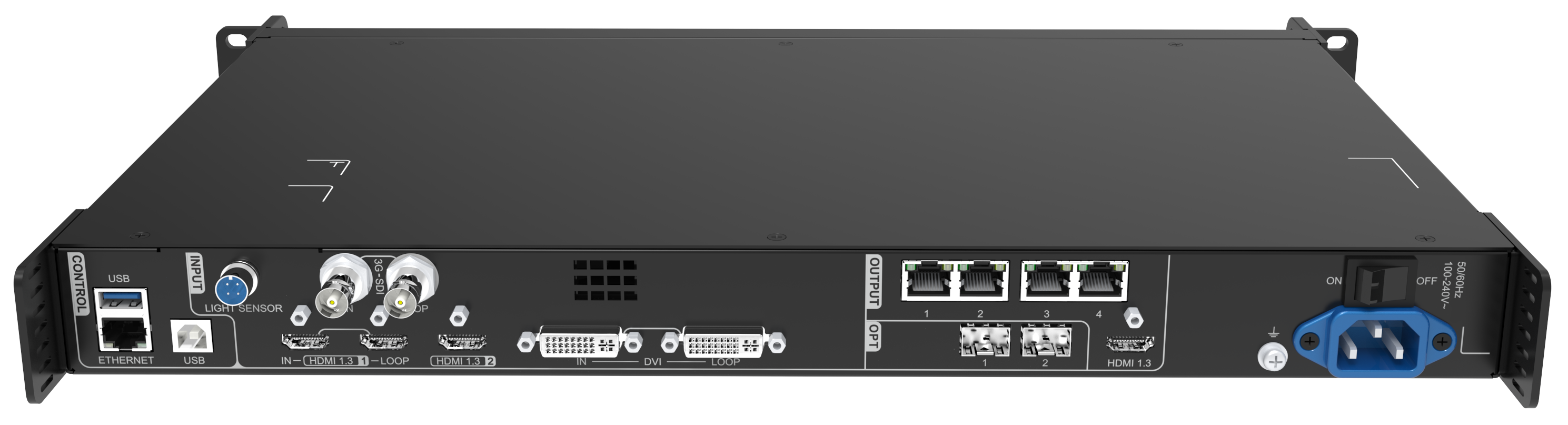

Inputs

1x 3G SDI (IN LOOP)

1x HDMI1.3 (IN LOOP)

1x HDMI1.3

1x DVI (IN LOOP)

1x OPT

Outputs

6x RJ45

2x 10G OPT

1x HDMI1.3 (For Monitor or Preview)

GENLOCK (IN LOOP):

Yes

Low Latency:

Yes

Input Source Backup:

Yes

Bypass Mode:

Yes

Fiber Converter Mode:

Yes

Electrical Parameters

Power connector 100–240V~, 1.5A, 50/60Hz

Rated power consumption 28 W

Operating Environment

Temperature –10°C to +60°C

Humidity 20% RH to 90% RH, non-condensing

Storage Environment

Temperature –20°C to +70°C

Humidity 10% RH to 95% RH, non-condensing

Physical Specifications

Dimensions 483.6 mm × 351.2 mm × 50.1 mm

Net weight 4 kg

Gross weight 6.3 kg

Packing Information

Accessories

1x Power cord

1x HDMI to DVI cable

1x USB cable1x Ethernet cable

1x HDMI cable

1x Quick Start Guide

1x Certificate of Approval

1x Customer Letter

1x Safety Manual

Packing box 565 mm × 175 mm × 450 mm

Certifications

TBD

Noise Level

(typical at 25°C/77°F)

45 dB (A)
