Specifications

FEATURES:

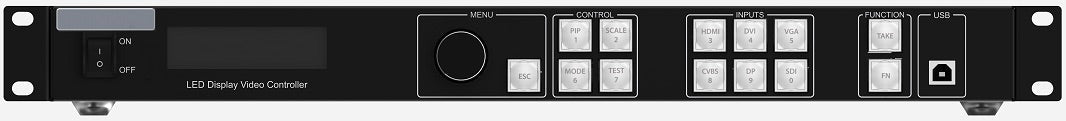

User Friendly LED Display Controller

Powerful Front End Processor

Up to 1920 x 1200 p @60Hz Input Resolution

Multiple Video Signal Format Support

New Generation Point-By-Point Correction Technology

Cascade Multiple Units Together Via USB

Rack Mountable Aluminum Enclosure (screws not included)

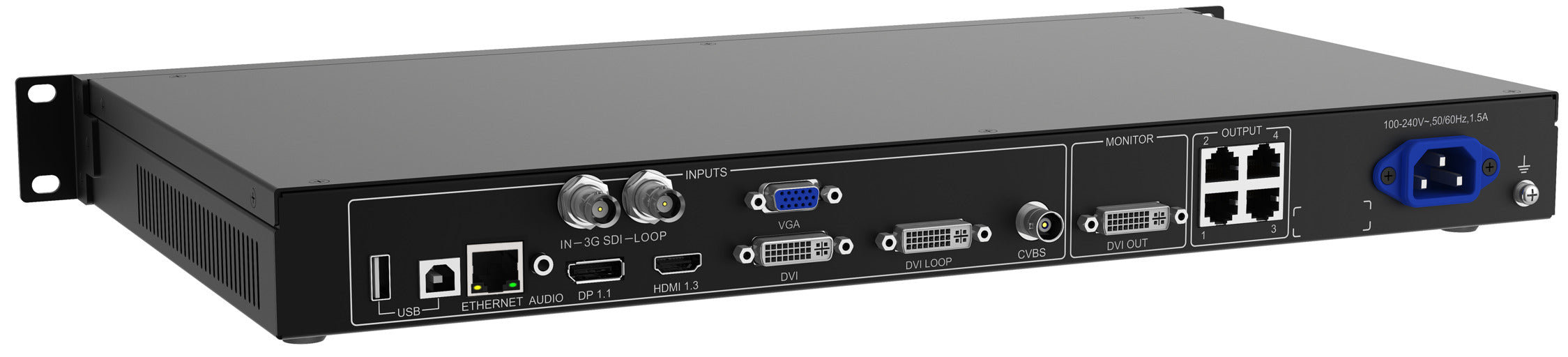

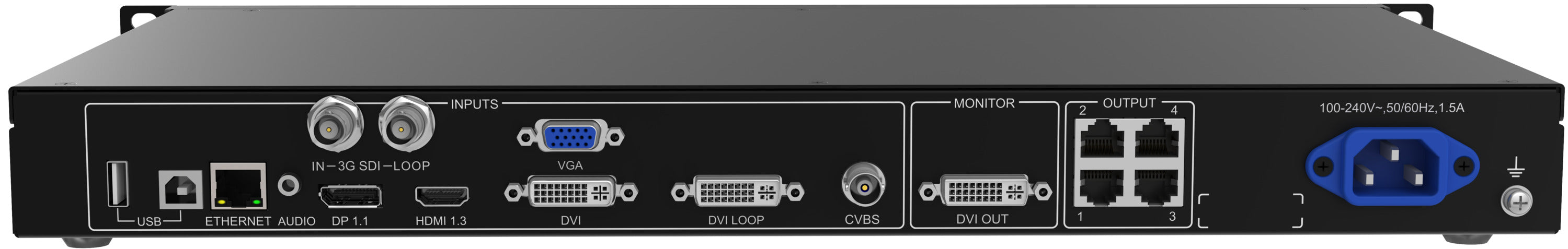

CONTROL / CONNECTIONS:

(1) RJ45 LAN for IP Based Control

(4) RJ45 Outputs for up to 2.6 million Pixels of LED Control

(2) USB Type A and (2) USB Type B Ports (1 set on each side)

(1) 1/8 inch (3.5mm) Audio Input

Video Input: (1) DP / (1) HDMI / (1) VGA / (1) DVI In+Loop / (1) CVBS / (1) 3G-SDI In+Loop Video Output: (1) DVI Monitor

Locking IEC Power Input

SIZE / WEIGHT:

Length: 19.0” (483mm)

Width: 10.8” (275mm)

Height: 1.8” (45mm)

Weight: 5.6 lbs. (2.55 kg)

ELECTRICAL:

AC 100-240V - 50/60Hz - 0.65A

Max Power Consumption: 16W

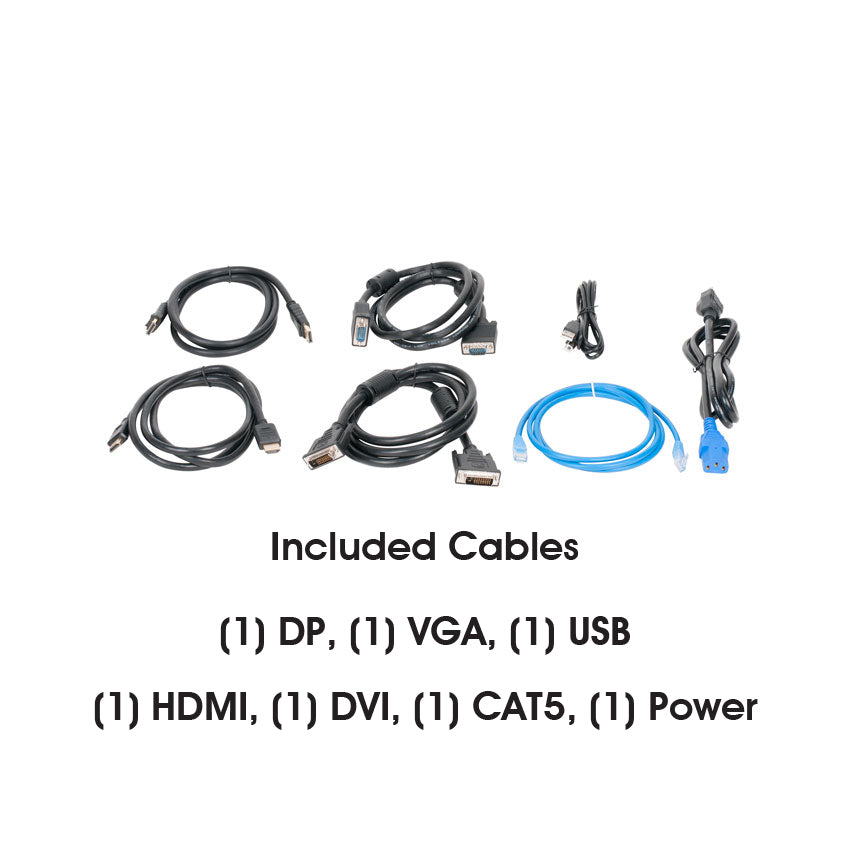

INCLUDED CABLES (1 each):

DP, VGA, USB, HDMI, DVI, CAT5, Power
