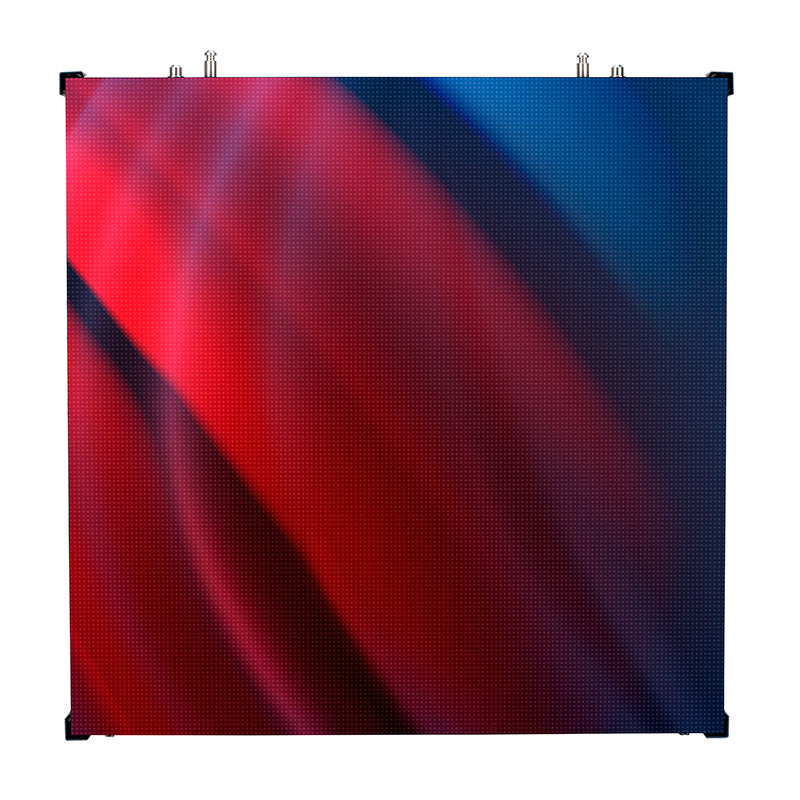

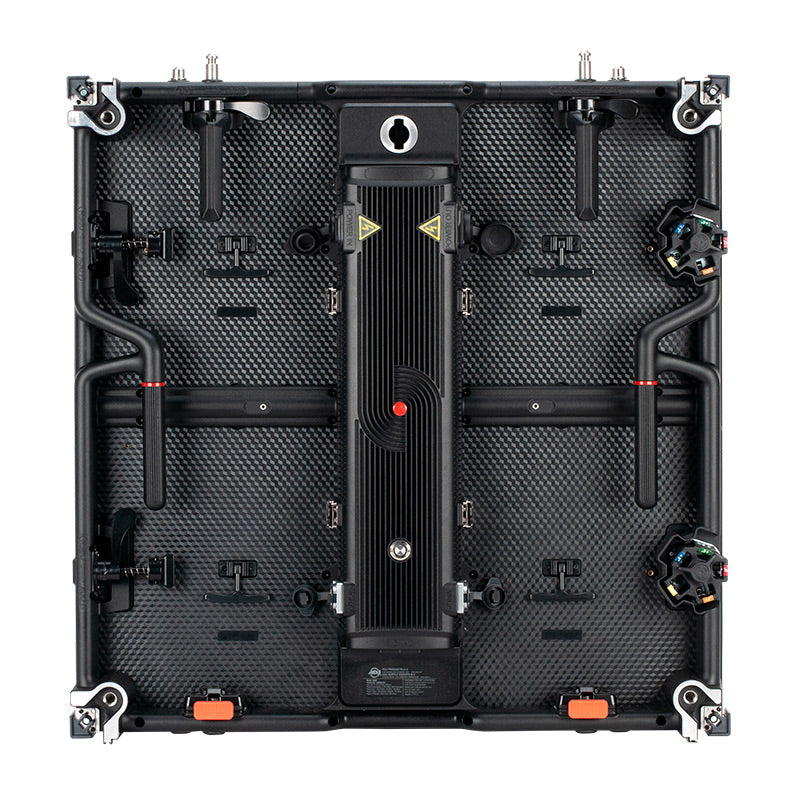

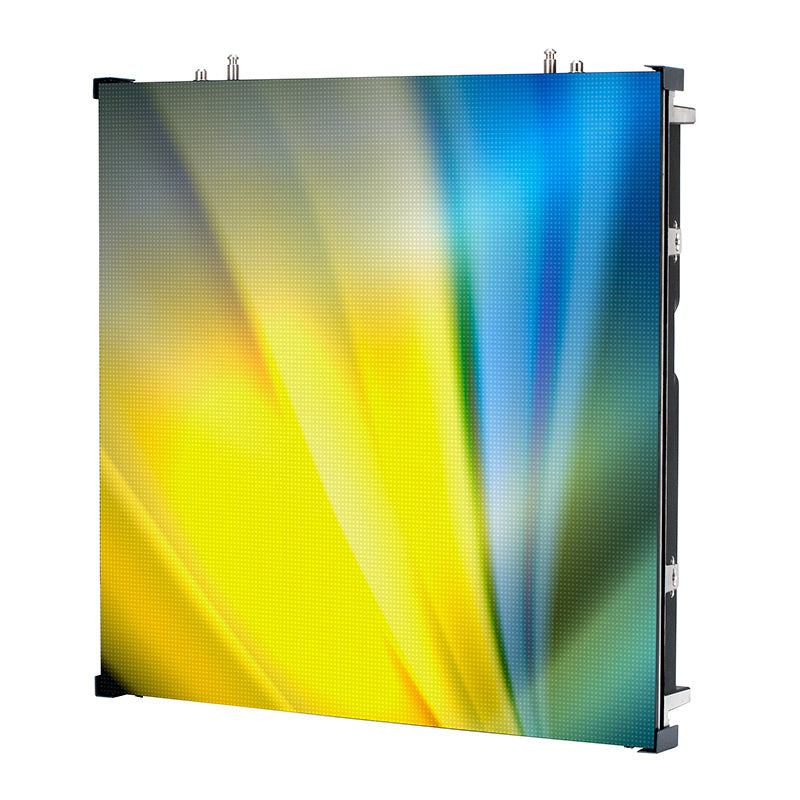

The VS3IP has four individual mini modules and is rear serviceable. The VS3IPFC8 flight case holds 8 VS3IP panels. The VS3IPRB1 single panel, multi-purpose rigging bar may be used to vertically hang up to 20 VS3IP panels or vertically ground stack up to 8 panels. The panel is ETL approved.
SPECIFICATIONS:
ā¢ Pixel Pitch: 3.84mm (0.15ā)
ā¢ LED Configuration: 3-in-1 SMD1921 LED
ā¢ Pixel Density: 150x150 per panel; 67816 per square meterĀ
ā¢ Size: 22.7ā x 22.7ā x 3.00ā / 576mm x 576mm x 75mm
ā¢ Module Quantity: 4
ā¢ Weight: 19.84 lbs. / 9kg.
FEATURES:

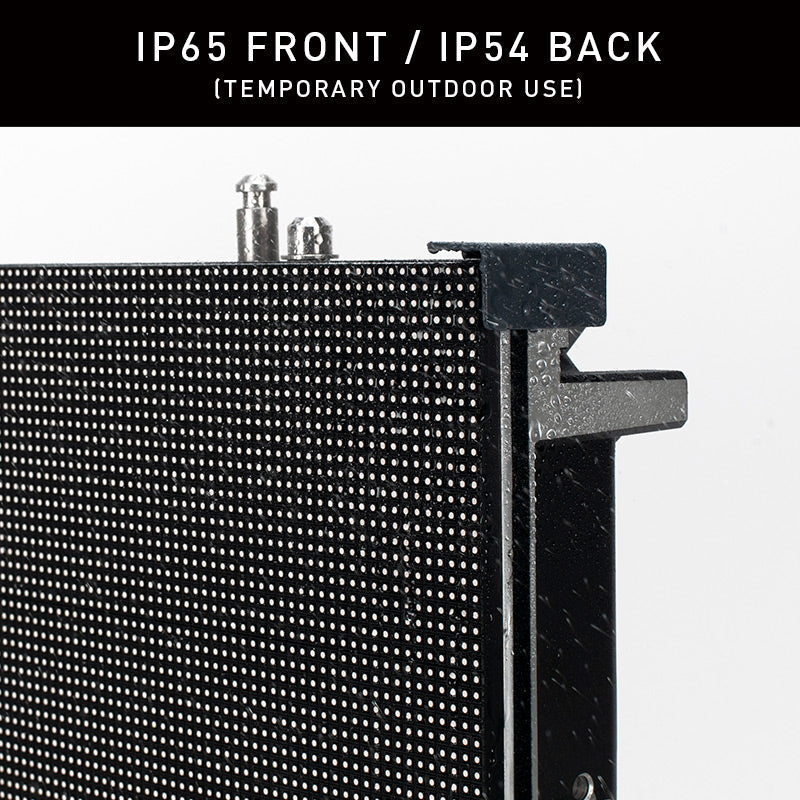

ā¢ IP65 Front / IP54 Back (Temporary outdoor use)

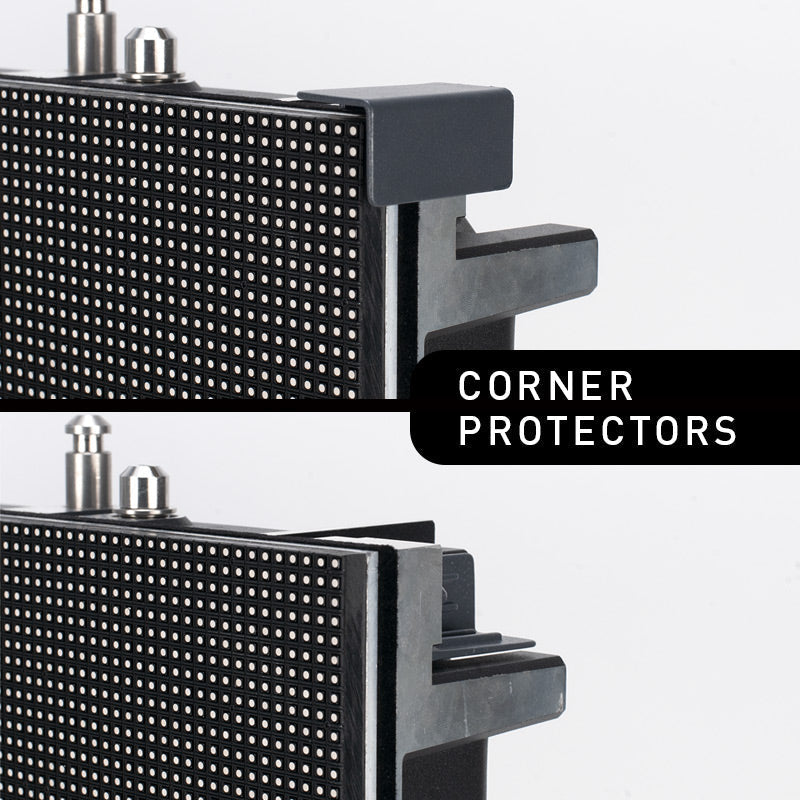

ā¢ Corner Protectors to protect the corners of the VS3IPĀ
Ā during transport, set-up and teardown

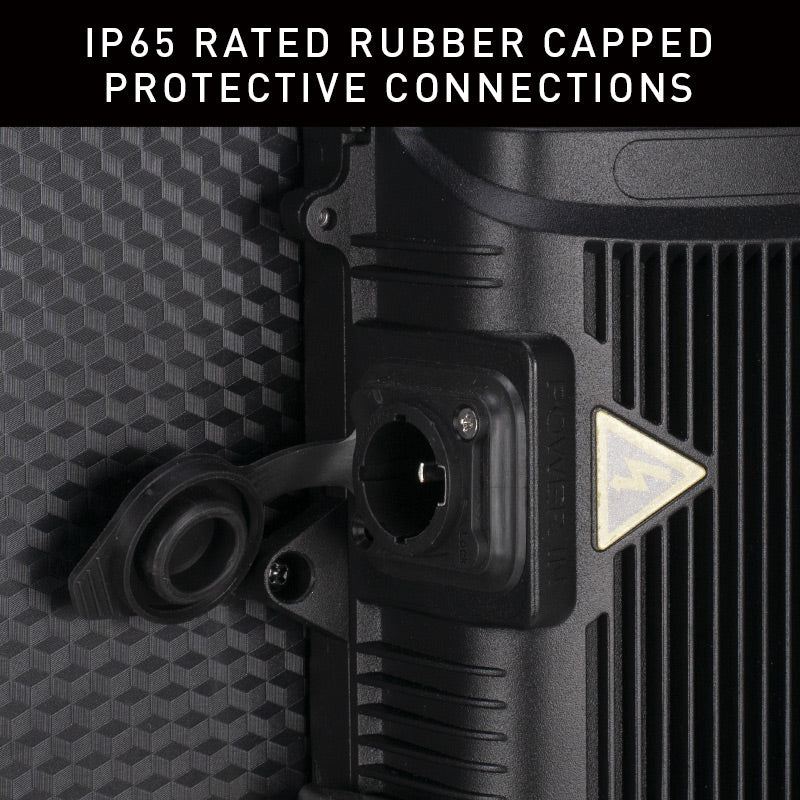

ā¢ IP65 rated rubber capped protective connections
ā¢ 4 easy to replace video modules on each panelĀ
ā¢ Rear carry handles

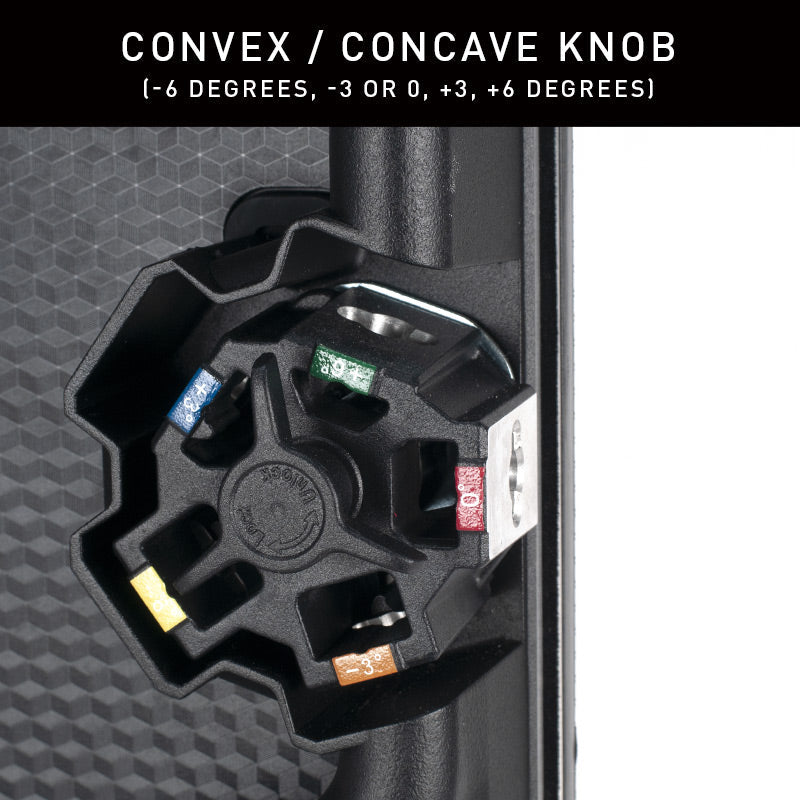

ā¢ Curve panels in convex or concave -6, -3 degrees or 0,Ā
Ā +3, +6 degrees
ā¢ Quick lock system to connect panels together
ā¢ Quick release power supply / receiving card module
ā¢ Novastar A5S receiving card
MECHANICAL RATINGS:
ā¢ Surface Flatness: Gaps<0.5mm
OPTICAL RATINGS:
ā¢ Brightness: 4500 NITS
ā¢ View Angle: Horizontal 160Ā°/Vertical 140Ā° @ 9.75 ft. (3m)
ā¢ Gray Scale: ā„14-bit
ā¢ Display Color: 256
ā¢ Brightness Adjustment: 0~100% 100 Levels
ā¢ Contrast ratio: 5000:1
ā¢ Processing: 14-bit
POWER SUPPLY:
ā¢ Operation Power: 100~240V 50-60Hz
ā¢ Max. Power Consumption: 210W/per panel
ā¢ Ave. Power Consumption: 84W/per panel
ā¢ IP65 Rated Connections Power/Data: Power-PowerLock In/Out; DataLock In/Out
CONTROL SYSTEM:
ā¢ Control Mode: Nova Star Synchronous System with Control via DVI
ā¢ Frame Update Frequency: 50-75Hz
ā¢ Scan Mode: 1/15
ā¢ Refresh Rate: 3840Hz
ā¢ Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
ā¢ Control Distance: Ethernet Cable <120m or Fiber Optic>120m
ā¢ Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
ā¢ Brightness Correction: Pixel, Module, Cabinet
ENVIRONMENTAL:
ā¢ Operating Temp / Humidity: Fahrenheit: -4Ā° + 104Ā° / Celsius: -20Ā° + 40Ā°/ 10-90% (No Condensation)
ā¢ Operating Life / MTBF: 50,000 Hours / 5,000 Hours
ā¢ Protection Level: IP65 Front / IP54 Back
ā¢ Out of Control Rate: <0.02%
OPTIONAL ACCESSORIES:
ā¢ VS3IPFC8 (VS3134): Flight Case ā Fits 8 VS3IP Panels
ā¢ VS3IPRB1 (VS3111): Rigging Bar ā Hang up to 20 VS3IP Video Panels vertically or ground stack up to 8
ā¢ VSRQR (VSM210): Quick Rig - Attaches and locks on to the rear of any Vision series panel so it can be fastened to a 2" pipe or truss
ā¢ VS1RSB (VS1126) Rear Support Bracket for VS Series Panels
ā¢ Novastar VX4S: Video Processor
ā¢ Novastar MCTRL-300: Video Processor
ā¢ Novastar Nova Pro HD: Video Processor
ā¢ Arkaos Media Master: Video Software
ā¢ Arkaos GrandVJ 2.0: Video Software
CABLES:
ā¢ Cabinet to Cabinet Data Link Cables (Ethernet Locking Connectors)
ā¢ Power Locking Link Cables
ā¢ Power Locking Main Power Cables
CERTIFICATIONS:
ā¢ cETLus Approved (Control #5015975)
ā¢ CE Approved
ā¢ Fcc Approved
