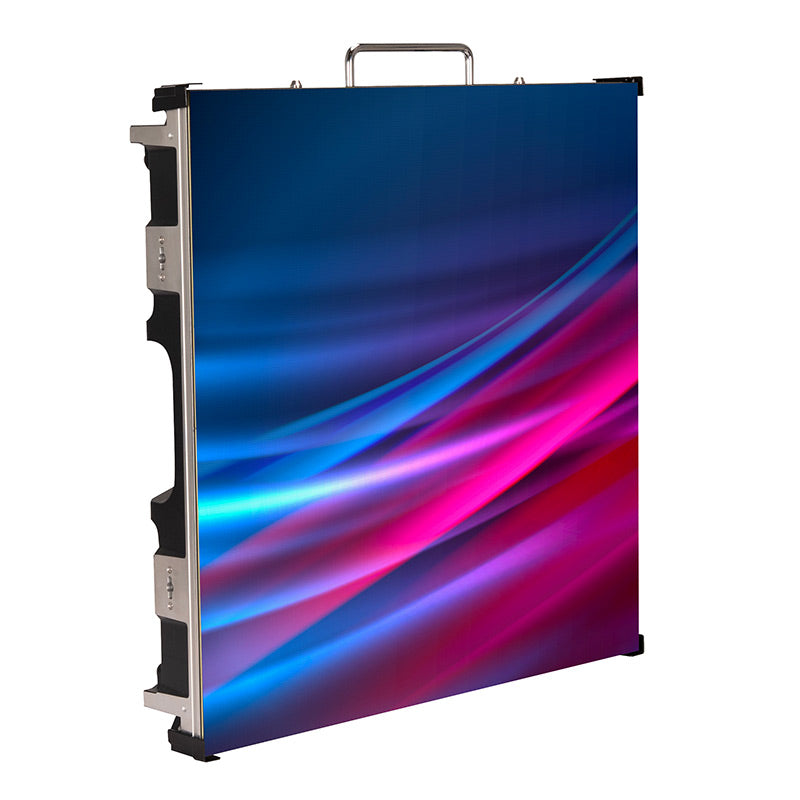

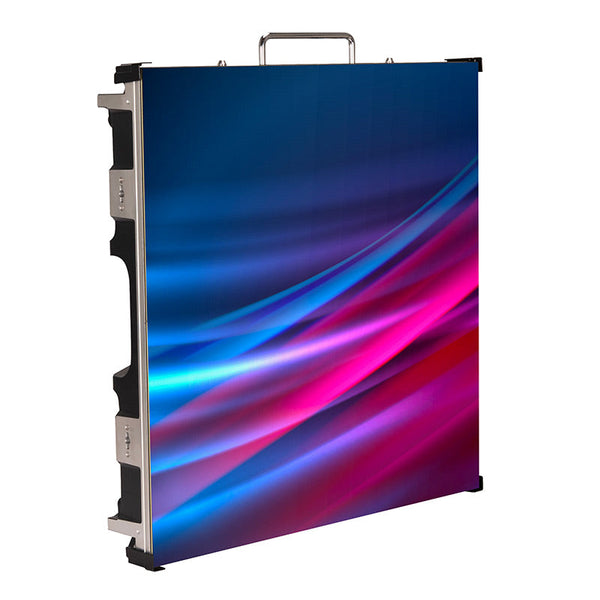

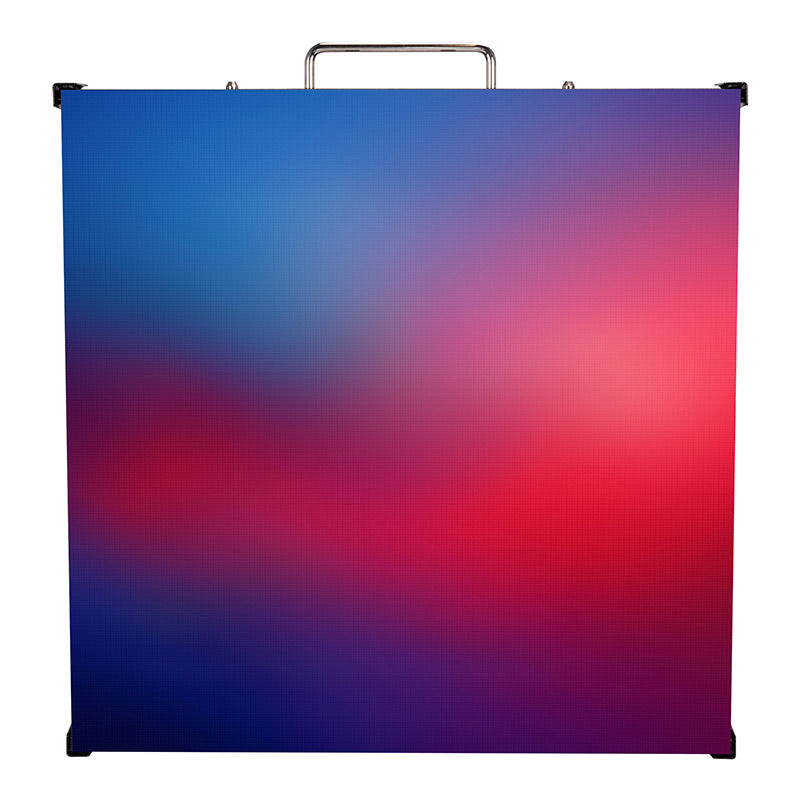

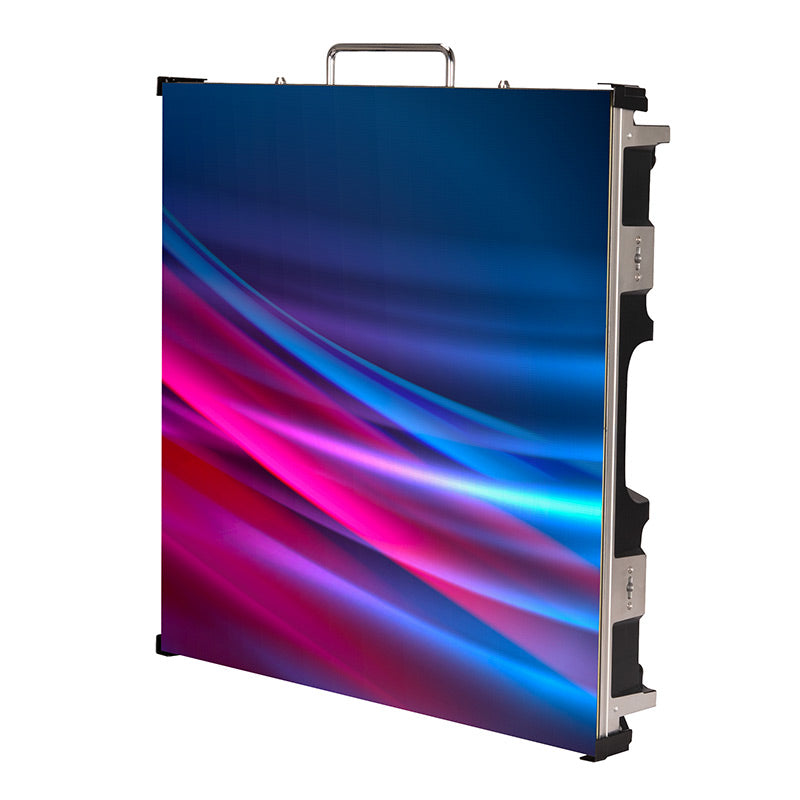

The VS1, part of ADJ’s tried and true Vision Series Video Panels, features a 1.95mm pixel pitch with a 4-in-1 MiniLED configuration. Each panel includes four individual mini-modules and is designed for easy rear serviceability. Up to eight VS1 panels can be stored in the VSFC8 flight case, and the VSRB1 rigging bar allows for vertical hanging of up to 20 Vision Series panels.
Specifications
SPECIFICATIONS:
Pixel Pitch: 1.95mm (0.07”)
LED Configuration: MiniLED 4-in-1
Pixel Density: 256x256; 262144 per square meter
Size :19.68” x 19.68” x 2.76” / 500 x 500 x 70mm
Module Quantity: 4
Weight: 17.64 lbs. / 8kg.
FEATURES:

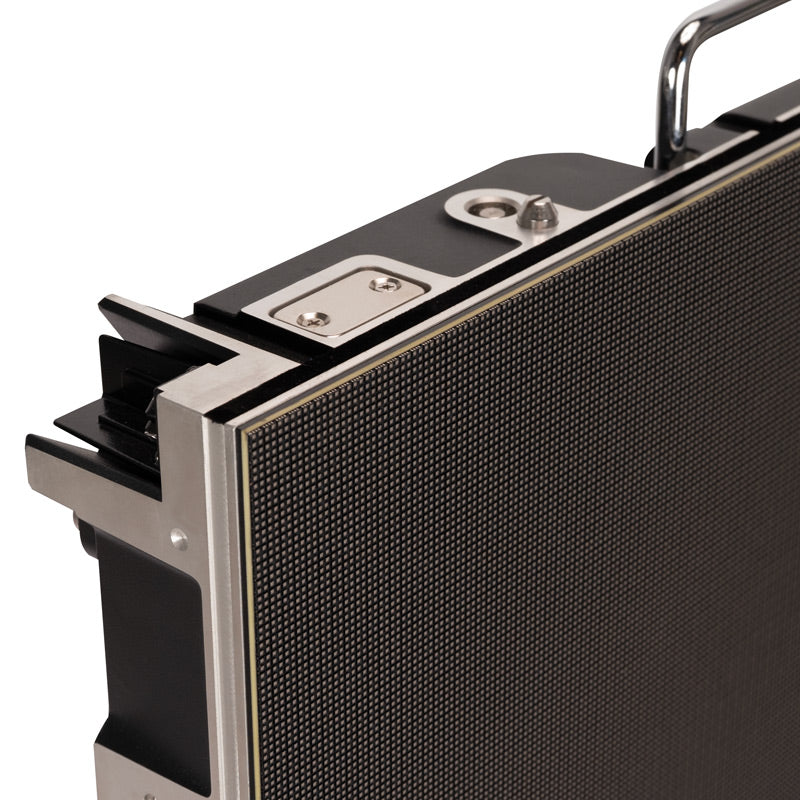

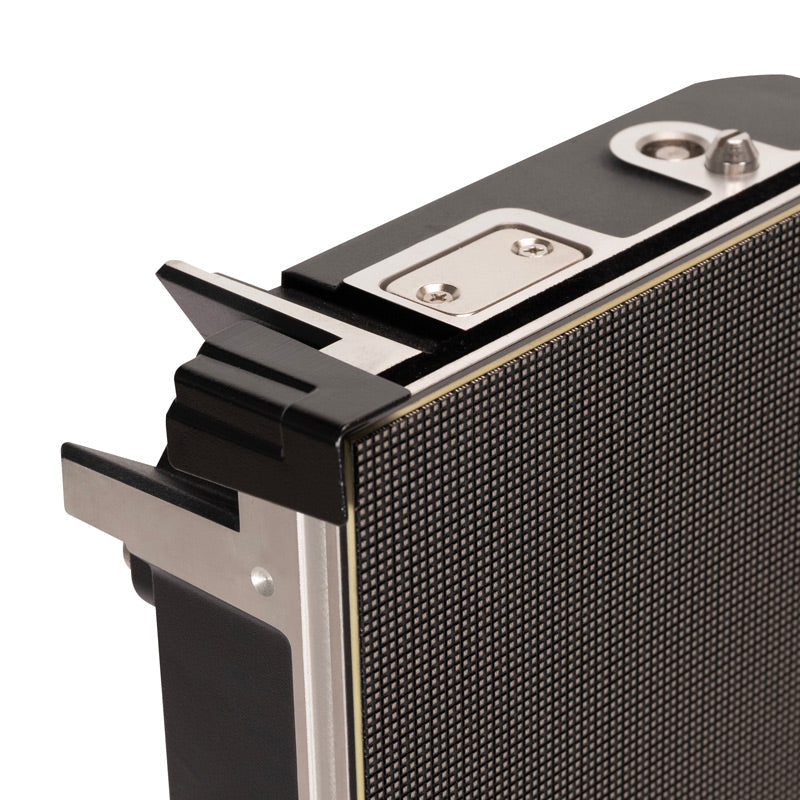

Corner Protectors to protect the corners of the VS1 during transport, set-up and teardown
Memory on Module (MOM): Enhanced functionality for seamless operation

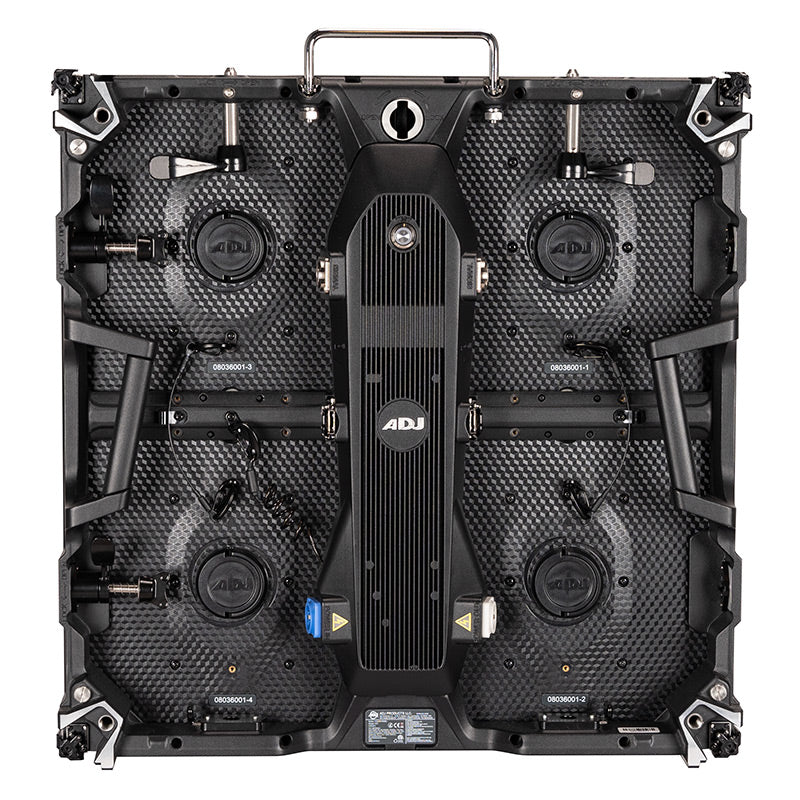

Rear Serviceable: Easily replaceable video modules ensure continuous performance
Built-in Novastar A5s receiving card
Magnets on top/bottom to temporarily connect panels before latching together allowing a single user to install an entire wall
MECHANICAL RATINGS:
Surface Flatness: Gaps<0.5mm for a smooth visual experience
OPTICAL RATINGS:
Brightness: 1500 NITS for vivid, clear visuals
View Angle: Horizontal 160°/Vertical 140° @ 9.75 ft. (3m) for wide coverage
Gray Scale: ≥14-bit for precise color representation.
Display Color: 256 for vibrant images
Brightness Adjustment: 0~100% with 100 Levels for customizable viewing
Contrast Ratio: 10000:1 for enhanced contrast
Processing: 16-bit ensures seamless performance
Operating Life / MTBF: 50,000 Hours / 5,000 Hour for long-lasting usage
POWER SUPPLY:
Operation Power: 100~240V 50-60Hz for global compatibility.
Max. Power Consumption: 150W/per panel, conserving energy.
Ave. Power Consumption: 60W/per panel for efficient operation.
Connections Power/Data: Power-Power Lock In/Out; Data Lock In/Out for easy setup.
CONTROL SYSTEM:
Control Mode: Nova Star Synchronous System with Control via DVI for intuitive control.
Frame Update Frequency: 50-75Hz for smooth playback.
Scan Mode: 1/16 for seamless scanning.
Refresh Rate: 7680Hz ensures flicker-free visuals.
Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI for versatile connectivity.
Control Distance: Ethernet Cable <120m or Fiber Optic>120m for flexible setups.
Support VGA Mode: Various resolutions supported for compatibility.
Brightness Correction: Pixel, Module, Cabinet for precise adjustment.
ENVIRONMENTAL:
Operating Temperature: -4° to 104°F (-20° to +40°C) for reliable performance in diverse conditions.
Operating Humidity: 10 - 90% (No Condensation) ensures stable operation.
Storage Temperature: -40° to 176°F (-40° to +80°C) for safe storage.
Storage Humidity: 10-90% (No Condensation) for long-term preservation.
OPTIONAL ACCESSORIES FOR VS1, VS2, VS3 VS5 VIDEO PANELS:
VSFC8 (VS8100): Flight Case – Fits 8 Vision Series Video Panels
VSRB1 (VS1100): Rigging Bar – Hang up to 20 Vision Series Video Panels vertically
- VSMRT (VSM111): Module Removal tool - Magnetically assists the tech in removing modules from the front side when servicing. New EVSVAC：Module Removal VACUUM TOOL
VSRQR (VSM210): Quick Rig - Attaches and locks on to the rear of any Vision series panel so it can be fastened to a 2" pipe or truss
VS1RSB (VS1126) Rear Support Bracket for VS Series Panels
VSSCSB VSSCSB): Single Column Support Base
VSGSB (VSG100): Ground Support Base
VSGSLT (VSGSLT): Ground Support Ladder Truss
VSGSCSB (VSG155): Clamp Support Bar
Optional Processors and Playback Software:
Novastar VX4S: Video Processor
Novastar MCTRL-300: Video Processor
Novastar Nova Pro HD: Video Processor
Arkaos Media Master: Video Software
Arkaos GrandVJ 2.0: Video Software
CABLES:
Cabinet to Cabinet Data Link Cables (Ethernet Locking Connectors)
Power Locking Link Cables
Power Locking Main Power Cables
Certifications:
cETLus (Pending)
Specifications are subject to change without notice.
