Specifications

Optical (Foreground LEDs):

• 19x 30W RGBL (4-IN-1) LEDs
• 30,000 Hour Average LED Life
• CRI: 86
• 16,500+ Lux (Zoomed In to 7° @ 5 meters)
• 7° to 42° Beam Angle
• 9° to 60° Field Angle

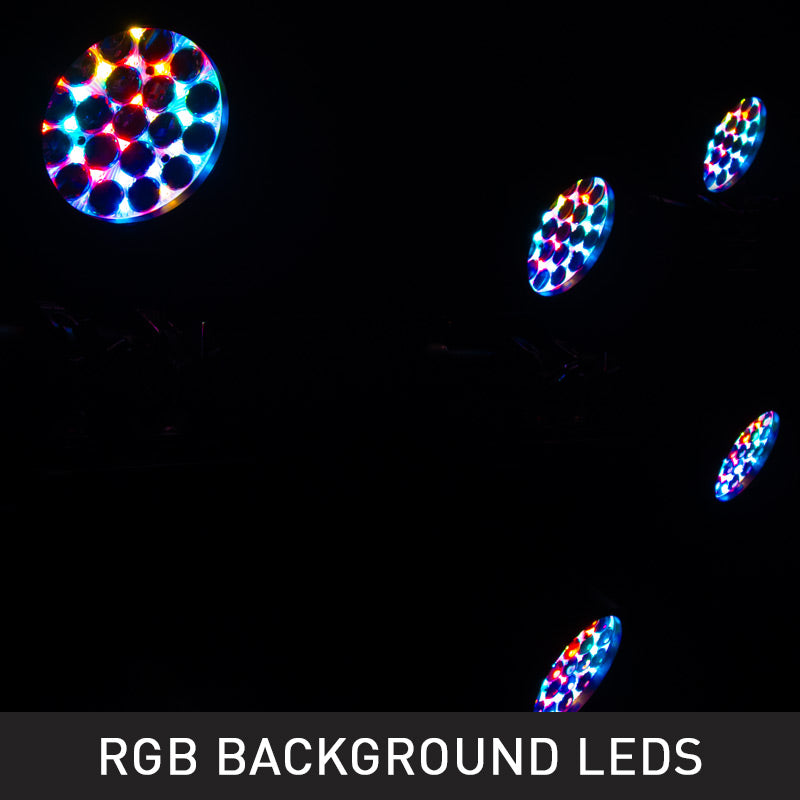

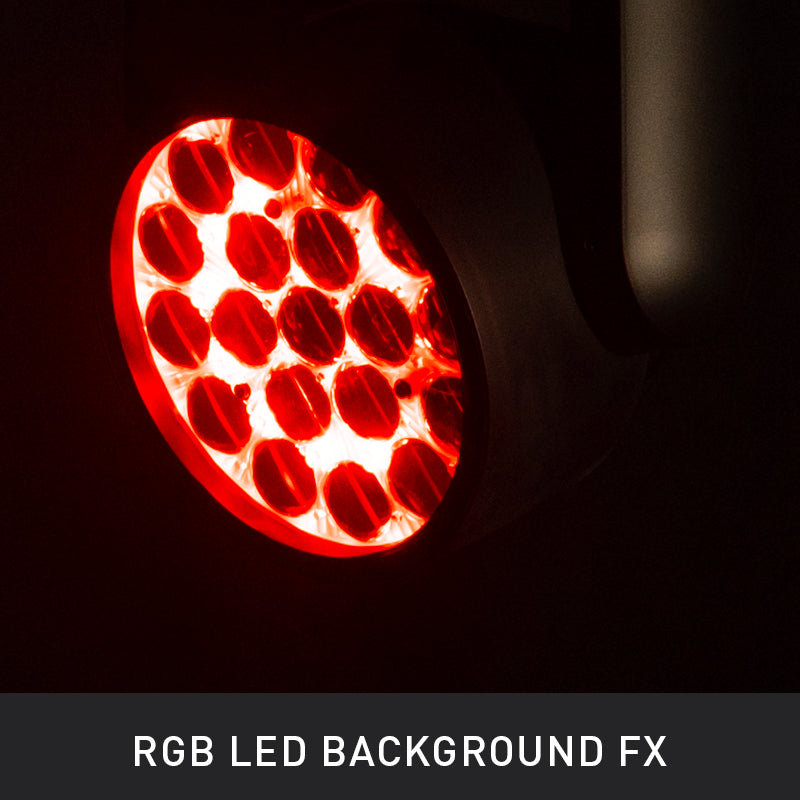

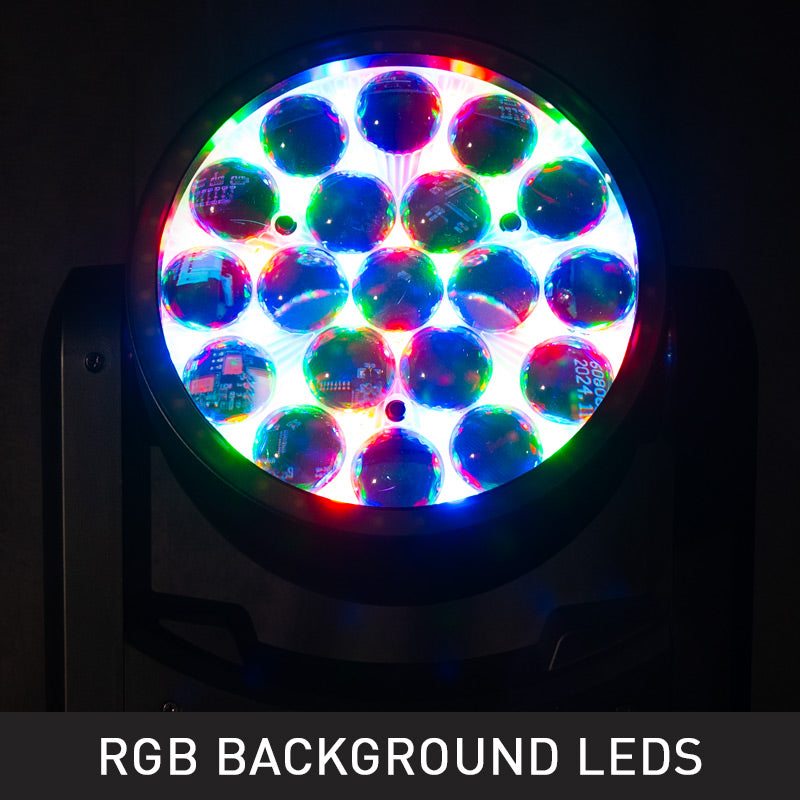

Optical (Background LEDs):

• 30x 0.5W SMD RGB LEDs
• 50,000 Hour Average LED Life

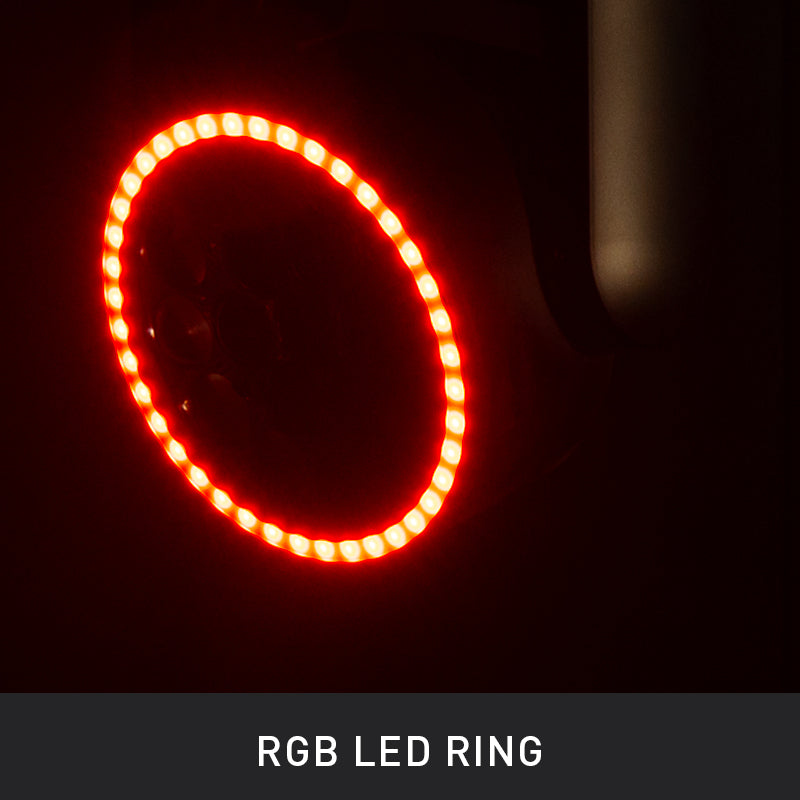

Optical (Ring LEDs):

• 40x 0.5W SMD RGB LEDs
• 50,000 Hour Average LED Life

Features:

• Moving Light Pixel Wash with Effects
• Individual Pixel Control (Foreground Background LEDs)

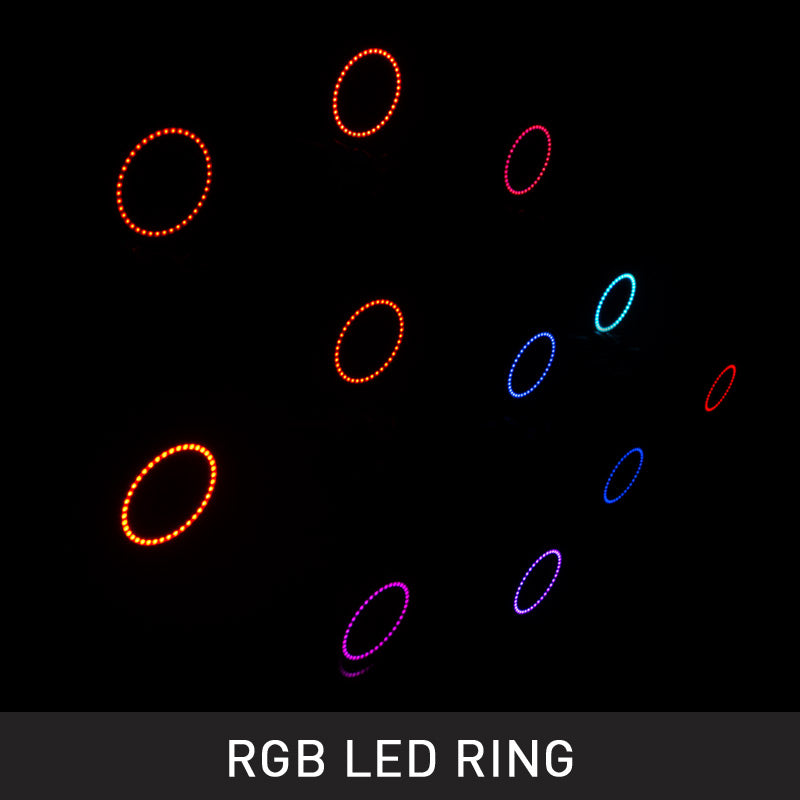

• RGB LED Ring
• Built-In Pixel Effect Programs
• Aria X2 Wireless Management System
• Electronic Strobe / Dimmer
• Pan/Tilt: 630/540 x 270
• Motorized Zoom
• Color Calibrated Pixels so units match from batch to batch
• Virtual CMY DMX Control Modes
• Virtual Foreground and Background Color Wheel Control
• Selectable LED Refresh Rates (900 Hz~25K Hz)
• Selectable Dim Modes: Standard, Stage, TV, Arch., Theatre, Stage 2 and user settable Dim Speed (0.1S~10S)
• 4 Dim Curves: Square, Linear, Inv. Square and S. Curve
• 0-100% smooth dimming
• Fan Cooled

Colors:

• 19x RGBL LEDs (Red, Green, Blue and Lime)
• 70x RGB LEDs (Red, Green and Blue)
• Virtual CMY DMX Control Modes
• Virtual Foreground and Background Color Wheel Control
• Built-In Color Macros

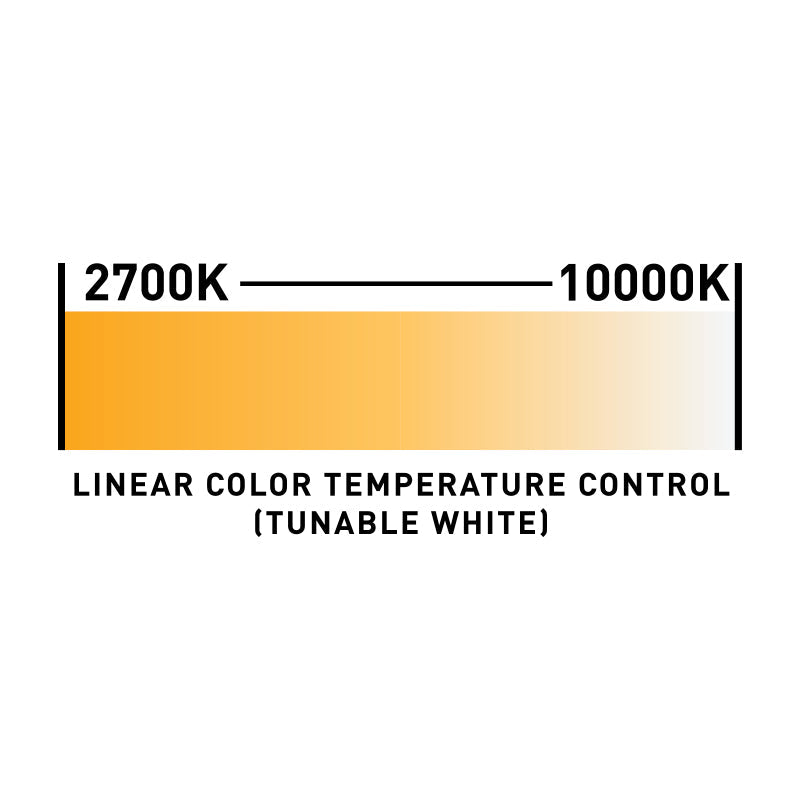

• 2,700K ~ 10,000K Linear White Color Temperature Control
• Color Temperature Presets: 2,700, 3,000, 3,200, 4,000, 4,500, 5,000, 5,600, 6,500, 8,000 and 10,000K

Effects:

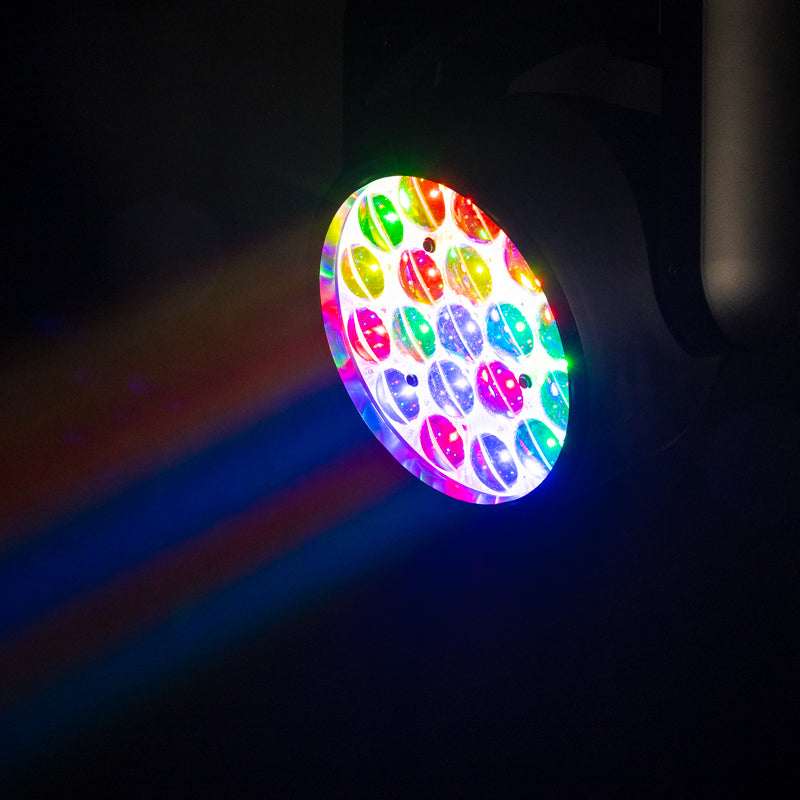

• 19x 30W RGBL (4-IN-1) Foreground LEDs, Fully pixel mappable
• 30x 0.5W RGB Background LEDs, Fully pixel mappable
• 40x 0.5W RGB Ring LEDs, three channel control
• Variable Strobe Pulse effects (0.5Hz to 33Hz)

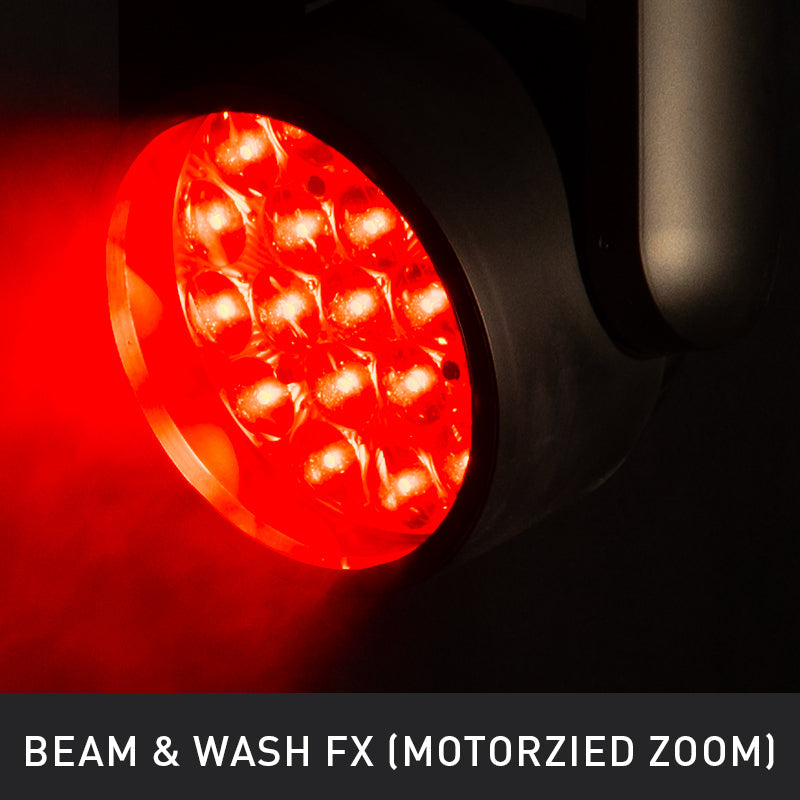

• Motorized Zoom (7° to 42°)

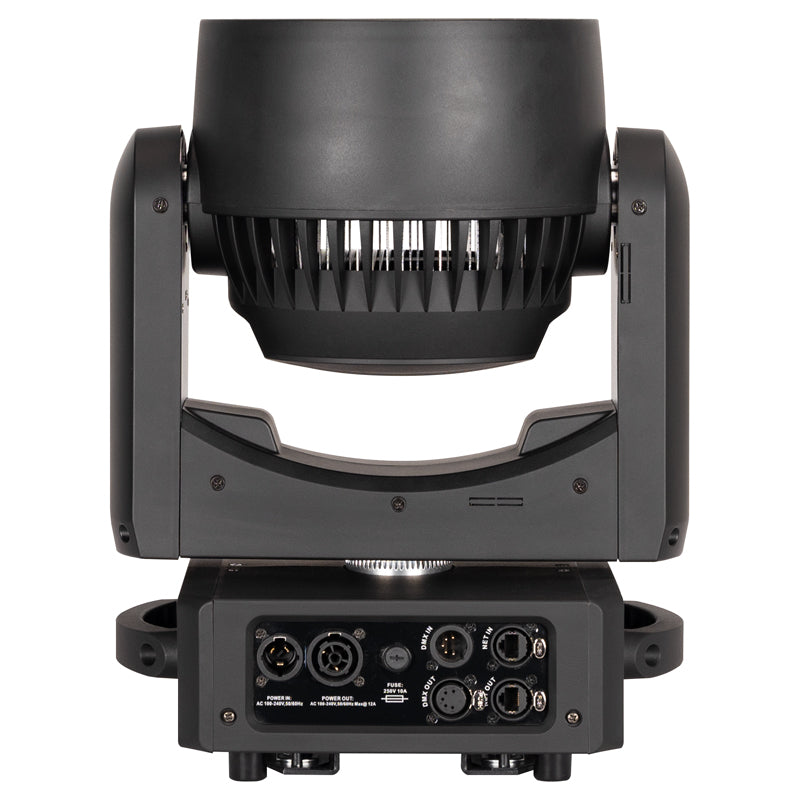

Connections:

• Seetronic, IP65 locking power In Thru Connections
• Seetronic, IP20 5-pin In Out DMX Connections
• 2x IP20, RJ45 network ports

Control:

• Aria X2 Wireless Management System
• DMX-512
• RDM (Remote Device Management)
• Artnet
• sACN
• 7 DMX Control Modes: 32 / 43 / M1 58 / M2 58 / 203 / 123 133 channels
• Built-In Effect Pixel Programs with Speed and Fade Control
• With Wired Digital Communication Network

Pan/Tilt:

• Pan: 630 or 540 degrees
• Tilt: 270 degrees
• 16-Bit Fine Pan Tilt
• Pan Tilt Locks

Electrical:

• Multi-voltage operation: 100-230V, 50/60Hz
• Max power consumption: 730W (6.64Amps) @ 120V. 690W (3.04Amps) @ 230V.

Dimensions Weight:

• Dimensions (LxWxH): 9.0”L x 12.0”W x 15.5”H (230x304x394mm)
• Center-to-Center Spacing: 13.8" (351mm)
• Weight: 22.6lbs (10.1kg)

What’s Included:

• 108mm Omega Brackets (2x)
• 1x 2M, IP65-rated locking power cable

Optional Road Cases:

• DRC MH: 2 Vizi Pix Z19 fit in the DRC MH Road Case
• QRC MH: 4 Vizi Pix Z19 fit in the QRC MH Road Case

Approvals / Rating:

cETLus (Control # 5028947)

• CE Certified
• FCC
• IP20

Specifications are subject to change without notice.
